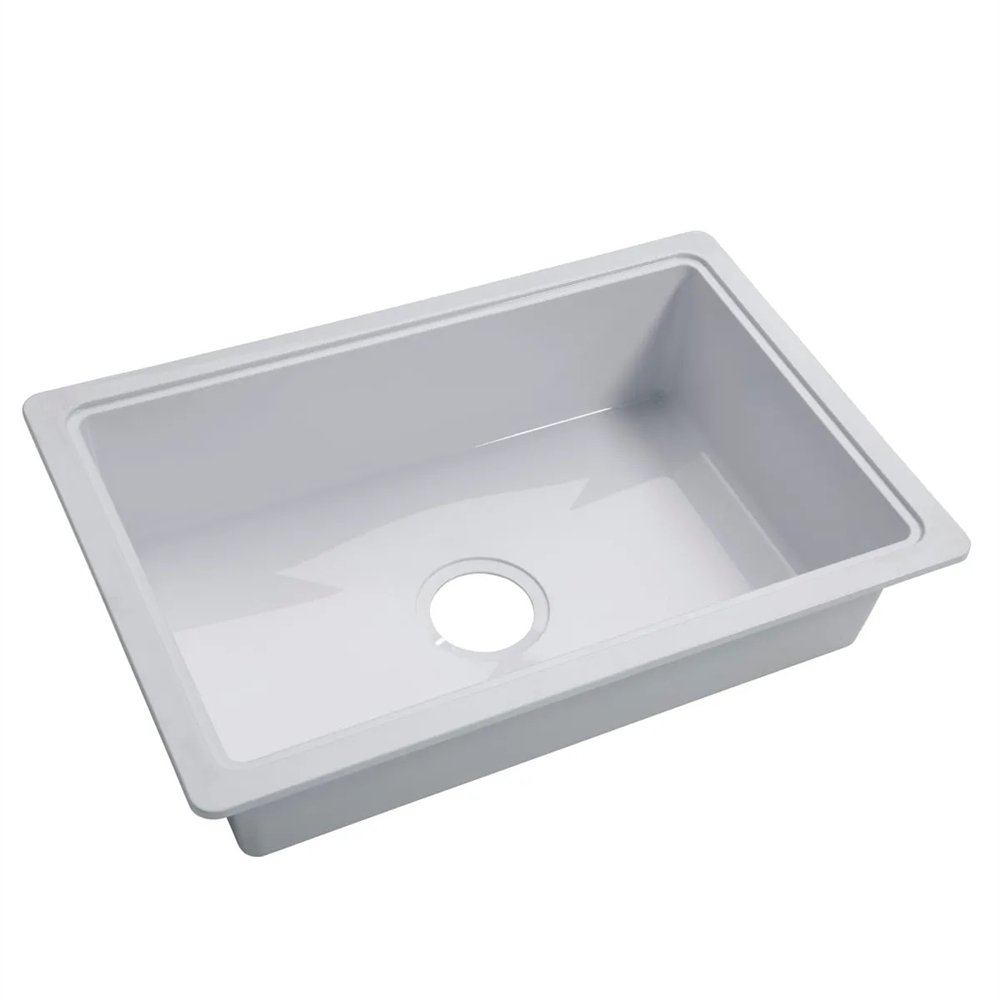

A purpose-built replacement kitchen sink for RV galley applications. The Lippert 809032 delivers a clean, modern look in a lightweight ABS acrylic shell that makes solo installation straightforward -- no cutting crew required. Channel grooves along the sink floor keep water moving toward the drain so you're not wiping out standing puddles after every rinse.
Most residential sinks are too deep, too heavy, and too wide to drop into an RV cabinet cutout without modification. The 809032 is designed from the start for RV dimensions and weight limits. At just over 5 lbs., it's easy to handle in tight quarters, and the 25" x 17" footprint fits common single-bowl RV galley cutouts without custom framing.
The white ABS acrylic shell resists scratches better than gel-coat fiberglass and won't yellow or craze under typical RV cleaning products. The material is 20-25% lighter than a comparable fiberglass sink -- meaningful when you're managing fresh water weight and overall coach payload.
ABS plastic resists surface scratching from cookware and utensils better than standard fiberglass, and holds its white finish longer without polishing.
Molded-in channel grooves direct water toward the drain opening, preventing pooling at the bottom of the bowl between uses.
At 5.24 lbs., the 809032 is 20-25% lighter than a comparable fiberglass sink -- easier to install solo and friendlier to your coach's payload budget.
The single-bowl layout maximizes usable interior depth (6.6") while keeping the overall footprint compact enough for narrow RV galley cabinets.
The 809032 is intended as a drop-in replacement for existing RV single-bowl galley sinks with a comparable cutout size. Before ordering, measure your current cutout opening carefully -- the sink's overall rim dimensions are 25" x 17", but your cabinet cutout must be sized to accept that rim with an appropriate overlap for the mounting clips or adhesive bead.
Standard RV kitchen sink drain openings accept a 3.5" basket strainer (not included). The sink does not include a faucet, drain assembly, clips, or supply lines. Use a bead of RV-compatible silicone sealant around the rim flange when setting the sink to prevent water intrusion into the cabinet below.
The 809032 is a Lippert-branded replacement galley sink suited to a wide range of travel trailers, fifth wheels, and Class A/C motorhomes that use a single-bowl kitchen sink in the 25" x 17" size class. It is commonly stocked as a direct replacement for worn, cracked, or stained OEM sinks in Lippert-equipped coaches, but it is a dimensional fit -- confirm your existing cutout matches before purchasing.
