Heavy-duty forward self-adjusting electric brake assembly for the driver (left) side of a 12,000 to 16,000 lb trailer axle. Self-adjusts on every forward stop for up to 50% shorter stopping distances versus non-adjusting brakes.

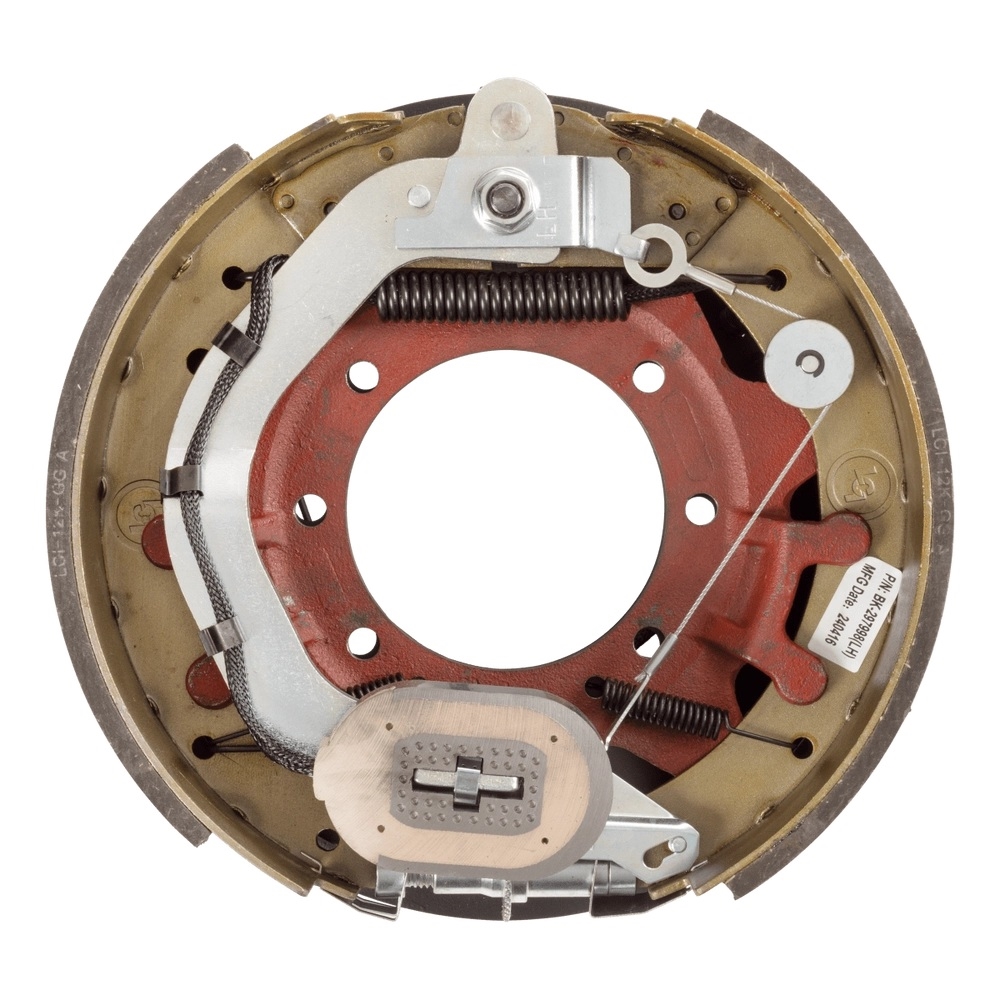

The Lippert 2024028242 is a forward self-adjusting electric brake assembly built for the left (driver) side of a heavy-duty 12,000 to 16,000 lb trailer axle. Unlike standard electric brakes that need periodic manual adjustment, this design self-adjusts during every forward stop, helping maintain consistent stopping power and reducing premature wear on brake linings and magnets over time.

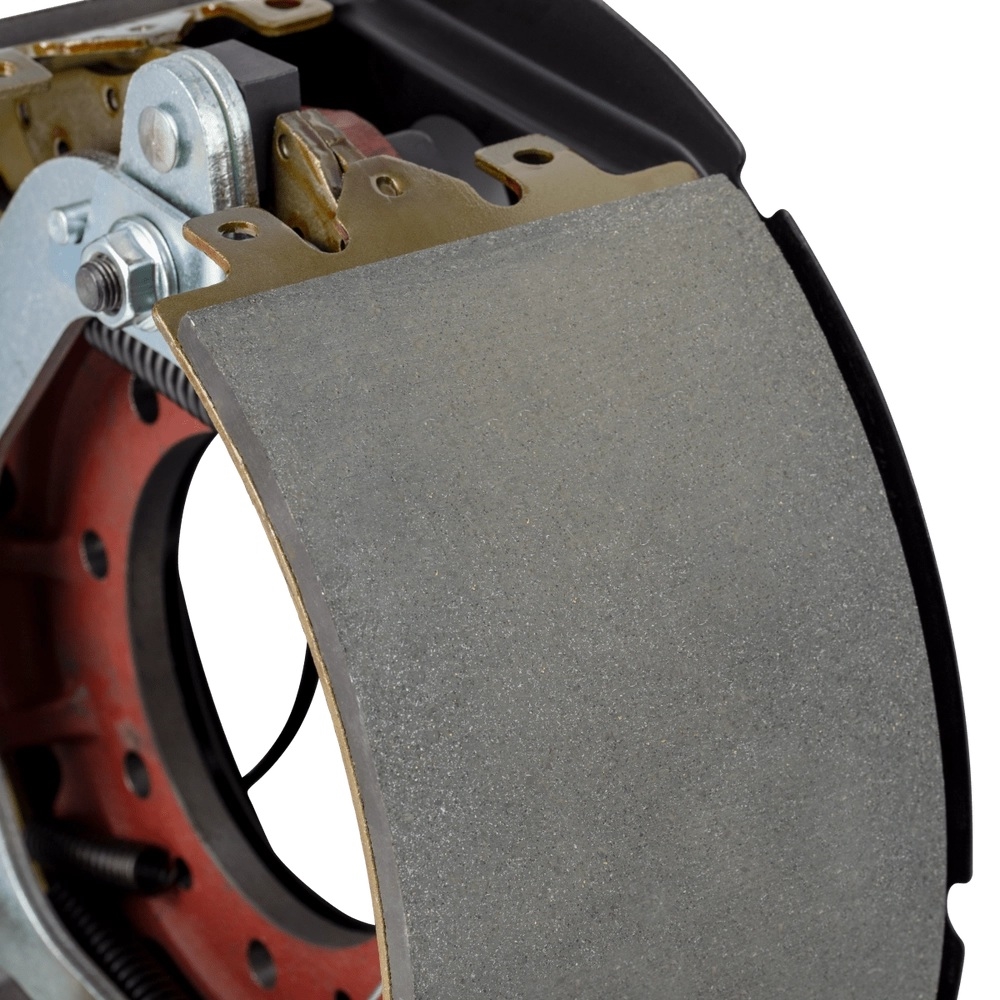

Requiring only an electric brake controller (sold separately), installation is simpler than a hydraulic system since there's no actuator or hydraulic lines to run. Shoes use automotive-grade friction material, and the backing plate carries an E-coat finish to resist rust and corrosion.
Adjusts automatically on every forward stop
Up to 50% shorter stopping distance vs. non-adjusting brakes
Universal mounting pattern for straightforward installation
Resists rust and corrosion for long-term durability
This brake requires a separate electric brake controller, which is not included. Confirm your tow vehicle has a compatible controller before installing, and reference your axle's original equipment label to verify the 7-bolt, 12-1/4" x 5" specification matches your setup.
In The Box: • One (1) Left-Side Brake Assembly (Backing Plate, Shoes, Magnet, Hardware) Not Included: • Electric Brake Controller
