Manual-lift MaxxFan Pivot roof vent with smoke lid, 4-speed fan, 400 CFM airflow, and drop-down pivoting fan head for targeted RV ventilation.

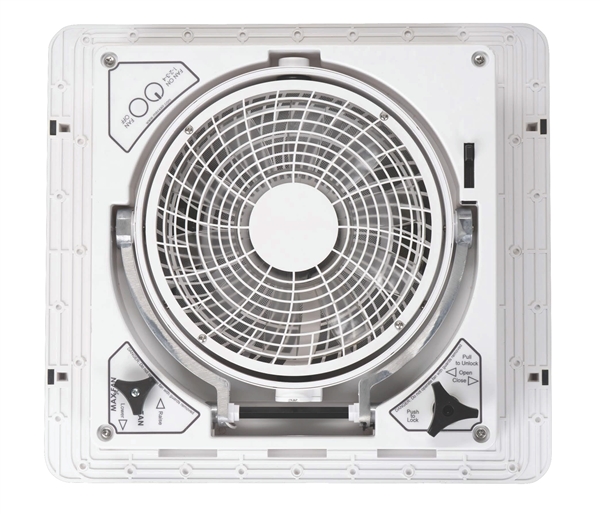

The Maxxair 00-62000 MaxxFan Pivot is designed for RV owners who want more control over where their airflow goes. Instead of only pulling air straight through the roof opening, this vent uses a drop-down pivoting fan head that can be aimed toward the area that needs ventilation most, such as a bed, dinette, galley, or main living space.
With 4 fan speeds, up to 400 CFM of airflow, a smoke manual-lift lid, and operation with the lid open or closed, this MaxxFan Pivot is a practical upgrade for standard 14" x 14" RV roof vent openings. Its low-profile design also makes it useful in tighter roof spaces where a traditional high-output roof fan may not be the best fit.
Drop-down pivoting fan head lets you aim airflow toward the area where comfort is needed most
Moves steady air through the RV with enough output for targeted ventilation and circulation
Choose from multiple speed settings for light circulation or stronger air movement
Fan can operate with the vent lid open or closed for flexible airflow control
This MaxxFan Pivot is designed for standard 14" x 14" RV roof vent openings and roof thicknesses from 2" to 6". Before ordering, confirm your roof opening size, roof thickness, available 12V DC wiring, and whether the smoke lid/manual-lift configuration matches your replacement needs.
The 00-62000 is part of Maxxair’s MaxxFan Pivot lineup, designed around a pivoting directional fan head instead of a fixed straight-up exhaust-only fan design. Part Number: • 00-62000 Product Family: • MaxxFan Pivot Lid Style: • Smoke / Tinted Lid This is not the same as the MaxxFan Deluxe 6200K model. Always verify the complete part number before ordering.
In The Box: • Maxxair 00-62000 MaxxFan Pivot roof vent fan • Smoke manual-lift vent lid • Drop-down pivoting fan assembly • Built-in bug screen • Interior garnish • Insulated electrical connectors • Mounting hardware May Be Needed Separately: • Roof sealant and butyl tape • Compatible FanMate vent cover, if desired • Additional wiring or connectors if existing wiring is missing or damaged Always inspect all included parts and review the installation instructions before beginning installation.
Installation Overview: 1. Confirm Fit: Verify that the RV roof opening is 14" x 14" and the roof thickness is between 2" and 6". 2. Disconnect Power: Turn off 12V power before removing or wiring the roof vent fan. 3. Remove Existing Vent: Remove the old vent and clean old sealant from the roof surface. 4. Apply Butyl Tape: Apply a continuous strip of butyl tape or equivalent under the mounting flange. 5. Mount the Vent: Center the MaxxFan Pivot in the roof opening and secure it using the included hardware. 6. Connect Wiring: Connect the 12V DC wiring using the simple 2-wire setup, with black for power and white for ground. 7. Seal the Flange: Use roof-compatible sealant around the mounting flange and fasteners. 8. Test Operation: Confirm lid movement, fan speeds, and pivoting fan direction before travel.
This MaxxFan Pivot model is a strong option for RV owners who want targeted, aimable airflow from a roof vent fan without the added complexity of powered lift, remote control, thermostat, or rain sensor features.
Before placing your order, verify that your RV has a standard 14" x 14" roof vent opening, roof thickness between 2" and 6", and suitable 12V DC power at the vent location. This model is best for customers wanting simple manual operation with directional pivoting airflow rather than automatic thermostat or rain sensor control.
