Auxiliary battery charging controller for maintaining a secondary or starting battery bank from an already-charging primary battery bank. Supports 12V and 24V systems and provides up to 15 amps of charge current with voltage-limited output protection.

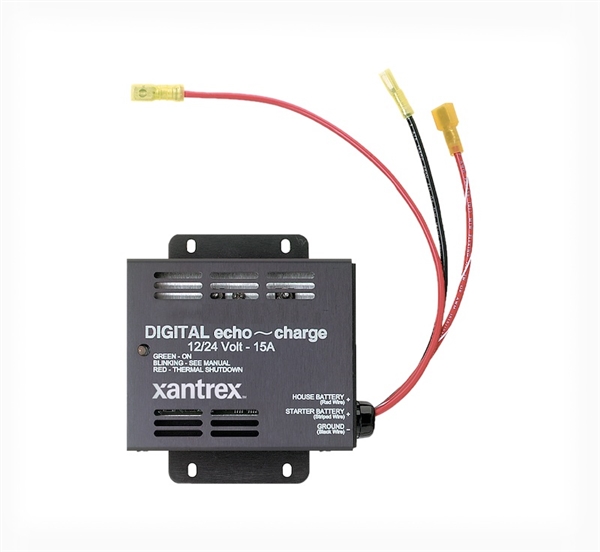

The Xantrex 82-0123-01 Link Echo Charge is an auxiliary battery charger designed to keep a secondary battery bank charged from an existing charging source. It is commonly used to maintain a chassis, starting, or auxiliary battery from a house battery bank that is being charged by an inverter/charger, converter, alternator, solar charger, or other primary charging source.
The Echo Charge automatically senses when the primary battery bank is being charged and then sends controlled charging current to the secondary bank. It is useful in RV, marine, and mobile power systems where one battery bank is charged regularly but a second bank needs maintenance charging without installing a separate full-size charger.
Maintains a secondary or starting battery from an existing charging source
Provides up to 15 amps of charge current to the auxiliary battery bank
Automatically adjusts for compatible 12V or 24V battery bank systems
Limits charging voltage to help protect the auxiliary battery bank
The Xantrex 82-0123-01 Link Echo Charge is commonly used in motorhomes, boats, vans, service vehicles, and mobile power systems with separate house and starting/chassis batteries. Typical uses include maintaining a chassis battery while the house bank is charged from shore power, keeping a starting battery topped off from a house battery charging system, or supporting auxiliary battery maintenance in two-bank RV and marine electrical systems.
• One Xantrex 82-0123-01 Link Echo Charge auxiliary battery charger • Installation/owner documentation as supplied by manufacturer
The Link Echo Charge is installed between a primary battery bank that is receiving charge and an auxiliary battery bank that needs maintenance charging. It does not replace the main battery charger, converter, inverter/charger, alternator, or solar charge controller. Both battery banks should be the same system voltage and compatible battery type. Confirm wiring size, fuse protection, battery chemistry, charge source voltage, and bank configuration before installation.
Battery charging equipment installation involves high-current DC wiring and battery safety risks. Incorrect installation can cause electrical shorts, overheated wiring, battery damage, equipment damage, fire, or personal injury. Installation should be performed by a qualified RV, marine, or electrical technician familiar with battery bank wiring, fusing, and charging-system requirements.
The Xantrex 82-0123-01 Link Echo Charge is an auxiliary battery charging controller for maintaining a secondary battery bank from an already-charging primary bank. Verify system voltage, battery type, charging source, wiring, fuse protection, and charge-current needs before ordering.
