30A 24V smart battery charger for RV, marine, commercial, work truck, coach, and specialty vehicle applications. Supports gel, flooded, AGM, and LiFePO4 batteries with multistage charging, universal AC input, and three DC output connections for compatible multi-bank systems.

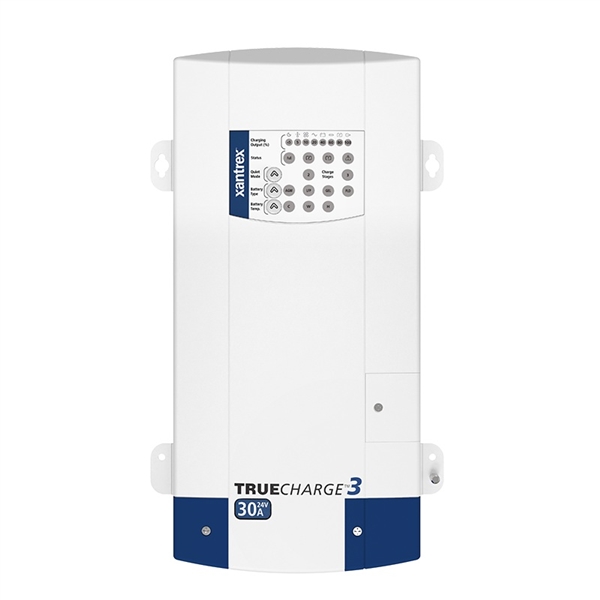

The Xantrex 804-2430-10 TRUEcharge3 is a 30 amp, 24 volt smart battery charger designed for 24V RV, marine, commercial vehicle, and specialty vehicle battery systems. It provides shore power or generator-powered charging using multistage charging profiles for compatible lead-acid and lithium battery systems.
This 24V model accepts a wide 90–265VAC input range and supports 47–63Hz AC input frequency, making it useful for varied shore power and generator environments. It includes three DC output connections for compatible multi-bank 24V charging setups, with one common negative connection.
Provides 30 amps of charging output for compatible 24V battery systems
Three positive DC output terminals support compatible multi-bank charging setups
Accepts 90–265VAC, 47–63Hz input for shore power and generator charging
Supports gel, flooded, AGM, and LiFePO4 battery charging profiles
The TRUEcharge3 30A 24V charger is intended for 24V battery systems used in marine, RV, heavy-duty truck, coach, bus, work truck, and specialty vehicle applications. This is a 24V charger only. It should not be used on 12V battery banks.
• One Xantrex 804-2430-10 TRUEcharge3 30A 24V battery charger • Integrated charger display/interface • Hardwire-style AC and DC charger connections
The optional Xantrex 808-8040-10 TRUEcharge3 Remote Panel can be used for remote monitoring and control. The remote panel is also required when using TRUEcharge3 parallel stacking to combine two compatible chargers for higher output current. The optional Xantrex 808-0232-01 Battery Temperature Sensor can provide battery temperature protection and voltage compensation features when used with compatible battery systems.
Xantrex 804-2430-10 is the TRUEcharge3 30A / 24V model. It is not a 12V charger and is not 12V/24V selectable. For 12V systems, use the correct TRUEcharge3 12V charger instead. Do not mix battery chemistries or incompatible battery banks on this charger. Confirm battery type, bank voltage, bank size, AC wiring, DC cable sizing, fuse/circuit protection, and charger settings before installation.
The Xantrex 804-2430-10 is the 30A / 24V TRUEcharge3 model. TRUEcharge3 chargers are voltage-specific, so choose the correct 12V or 24V charger for your battery system.
