Back in 2019, I got a call from a customer who'd just had one of those moments that changes the way you think about towing forever. He was coming down a long grade outside of Flagstaff, Arizona, towing a 6,000-pound travel trailer behind his Ram 1500. His old time-delay brake controller was doing what time-delay controllers do—applying the same amount of braking force regardless of how hard he hit the pedal. By the time he reached the bottom, his trailer brakes were smoking, the pads were cooked, and he was white-knuckling the steering wheel through every curve.
That conversation stuck with me because it highlights exactly why choosing the right brake controller isn't just a checkbox on your towing setup—it's a genuine safety decision. After decades in this industry and more towing miles than I'd care to count, I've seen the difference between a well-matched brake controller and a poorly chosen one play out hundreds of times. The right controller doesn't just stop your trailer; it stops it smoothly, proportionally, and predictably, every single time.

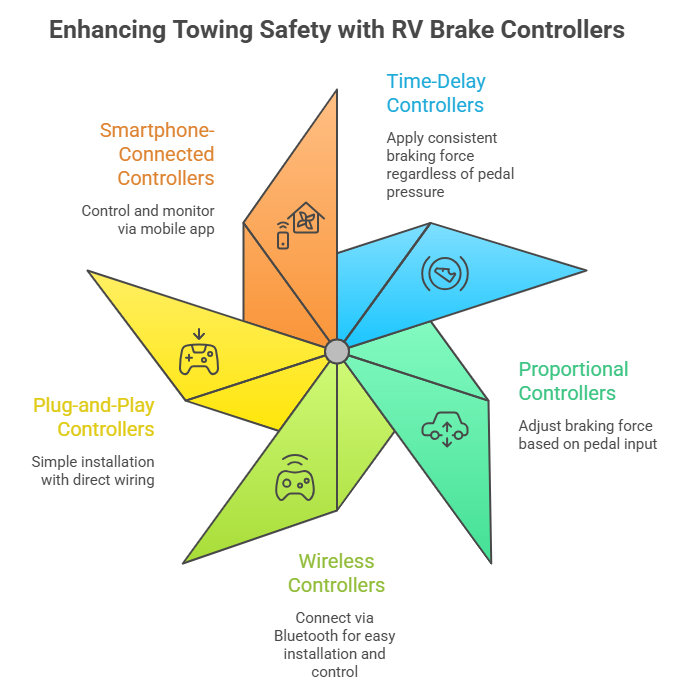

I've put together this guide to walk you through the best brake controllers we carry at the RV Upgrade Store, covering everything from smartphone-connected wireless units to proven plug-and-play proportional controllers. Whether you're towing a 3,000-pound pop-up or a 14,000-pound fifth wheel, there's a controller here that's right for your setup.

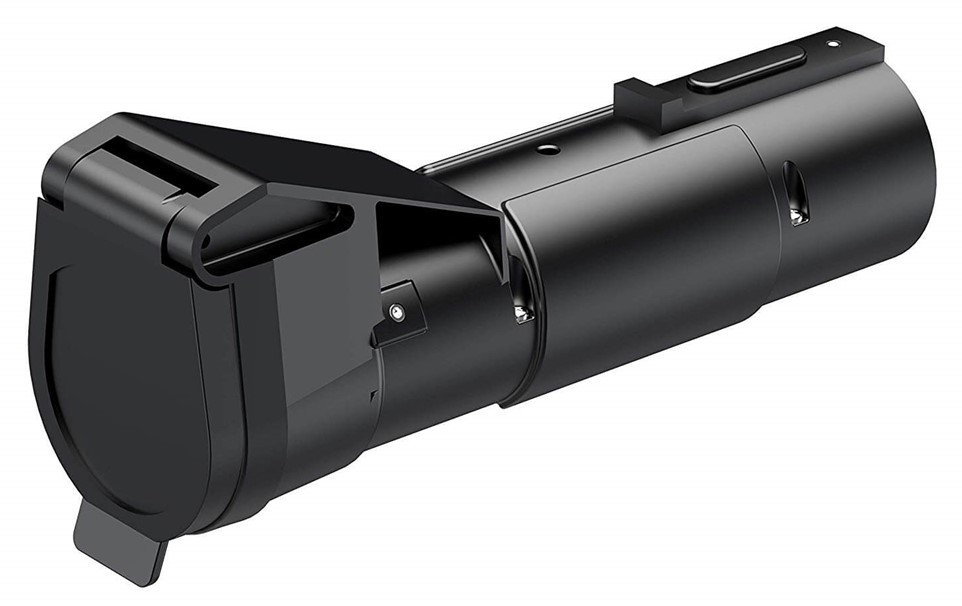

Best for: Wireless convenience, multi-vehicle owners, and tech-forward towing setups
The Curt Echo completely changed my thinking about what a brake controller could be. When I first heard about a Bluetooth brake controller that connects to your smartphone, I'll be honest—I was skeptical. I've been in this business long enough to know that towing equipment needs to be rock-solid reliable, and “there's an app for that” doesn't always inspire confidence when you're hauling 6,000 pounds down a mountain highway.
But after testing the Echo extensively and hearing back from dozens of customers who've put serious miles on it, I've come around completely. This thing works, and it works well. The Echo plugs directly into your vehicle's 7-way RV blade socket at the rear—no under-dash wiring, no drilling, no electrical work whatsoever. You download the OneControl app on your iPhone or Android, pair it via Bluetooth, and you're controlling trailer brakes from your phone within minutes of opening the box.
What really sold me is the tri-axis accelerometer inside. Unlike cheaper time-delay units that apply a fixed amount of braking force after a set delay, the Echo senses the actual rate and intensity of deceleration and applies trailer braking proportionally. Coming to a gentle stop at a campground entrance? Light trailer braking. Emergency stop on the interstate? Full, aggressive braking response. The trailer brakes match what your foot is doing, which is exactly how it should work.
The portability factor is huge too. I've had fleet customers who tow the same trailer with three or four different trucks. With a traditional controller, they'd need a dedicated unit hardwired into each vehicle. With the Echo, you unplug it from one truck's 7-way, plug it into the next, pair it with your phone, and you're towing. It stores multiple vehicle-trailer profiles in the app, so once you've set up a combination, the settings are saved.
One thing I always mention to customers: the Echo is built for outdoor mounting. It's got a potted enclosure—meaning the internal electronics are completely sealed in epoxy resin. Rain, snow, mud, road grime—none of it gets in. I've seen units that have been on the road for over 30,000 miles with zero issues. And if Bluetooth drops for any reason, the controller continues operating on its last saved settings. Your brakes don't stop working just because your phone battery died.
The Echo handles two to four trailer brakes (one to two axles), which covers the vast majority of travel trailers and smaller fifth wheels. It's compatible with cruise control, ABS, and low-voltage systems. For the price point—typically around $280–$290—you're getting a genuinely modern brake control solution that eliminates the headache of traditional installation entirely.
Pro Tip: Always plug the Echo into your vehicle's 7-way socket before connecting the trailer. Plugging in the wrong order can cause calibration issues. Some vehicles also require the engine to be running and the truck to be in tow/haul mode before the 7-way socket delivers power.
Buy the Curt Echo Mobile Brake Control

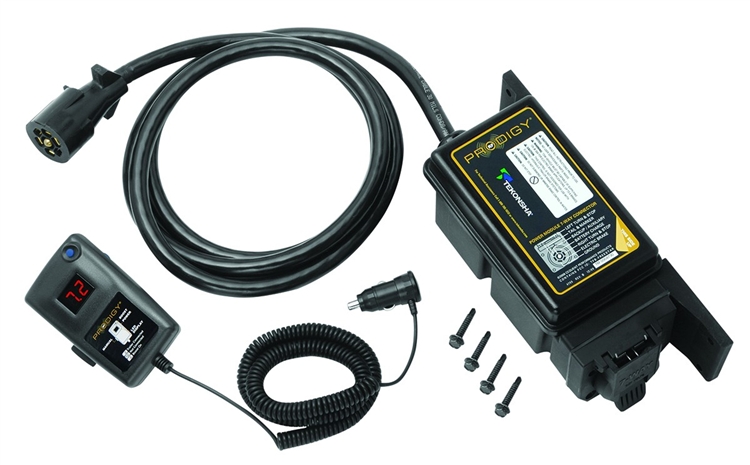

Best for: Trailer owners who tow with multiple vehicles, fleet operations, and rental trailers
If the Curt Echo represents the smartphone generation of brake controllers, the Tekonsha Prodigy RF is the dedicated-hardware approach to solving the same problem—and for a lot of towing professionals, that's exactly what they prefer. The concept is clever: instead of mounting the controller inside the cab of your truck, the Prodigy RF's power module mounts permanently to the tongue or A-frame of your trailer. A separate handheld remote communicates with it via Bluetooth and plugs into any standard 12-volt accessory port in your vehicle.
The advantage here is significant for anyone who tows the same trailer with different trucks. I've sold these to small rental companies, landscape businesses that share trailers between crews, and families where dad's truck and mom's SUV both need to pull the camper. There's nothing to install in any vehicle—no wiring, no bracket, no controller taking up space under the dash. Whoever's driving just grabs the remote, plugs it into the cigarette lighter or USB-adjacent power port, and they've got full proportional brake control.
The Prodigy RF uses the same proportional braking technology Tekonsha is known for. It reads deceleration through an internal inertia sensor and applies trailer braking force accordingly. But it adds a feature I really like—the Boost system. There are three boost levels that let you adjust how aggressively the initial braking force ramps up. If you're towing a trailer that's heavier than your tow vehicle (which happens more often than people think), bumping up the boost level prevents that unnerving feeling of the trailer pushing you forward in a stop.
The built-in diagnostics are another standout. The LED display on the remote shows real-time power output, connection status, and fault codes. If something's wrong—a blown fuse, a corroded connector, a broken ground wire on the trailer—the Prodigy RF tells you what the problem is instead of just not working. That kind of troubleshooting capability saves hours of guesswork on the side of the road.
Tekonsha backs the trailer-mounted power module with a 15-year limited warranty, which is the longest in the industry by a wide margin. The remote gets a 5-year warranty. That tells you something about how confident they are in the durability of this system. The power module is fully sealed and weatherproof, and I've seen units that have been mounted on trailer tongues for years with zero degradation.
One practical consideration: the Prodigy RF handles up to three axles (six brakes), which makes it suitable for larger trailers that the Curt Echo can't handle. If you're towing a triple-axle toy hauler or a heavy equipment trailer, this is the wireless option that actually has the capacity for your setup.
Pro Tip: The Prodigy RF requires constant 12-volt power on the auxiliary pin of your vehicle's 7-way connector. Some vehicles only power this pin when the engine is running or when tow mode is activated. If the LED on the power module doesn't light up when you plug in, check whether your vehicle requires tow/haul mode to be engaged first.
Buy the Tekonsha Prodigy RF Brake Controller
Best for: Traditional dash-mounted proportional braking with proven reliability
If the wireless controllers above represent the future of brake control, the Tekonsha Prodigy P2 is the rock-solid present—and for plenty of RV owners, that's exactly what they want. This is a traditional in-cab proportional brake controller that mounts under your dash, connects via a vehicle-specific wiring harness, and does one job exceptionally well: stopping your trailer smoothly and safely, every single time.
I've recommended more Prodigy P2 controllers than probably any other single product in my career, and for good reason. The proportional braking is silky smooth—the internal accelerometer reads your vehicle's deceleration and matches trailer braking force perfectly. Light tap on the brake pedal coming into a parking lot? Light trailer braking. Hard stop because someone cut you off on the highway? Immediate, aggressive response. There's no delay, no guesswork, and no adjustment period once it's dialed in.
The P2 features the same Boost system found in the RF model. Three levels let you fine-tune how quickly the initial braking force ramps up, which is invaluable when you're switching between an empty trailer and a fully loaded one. The LED display shows real-time braking output, and the manual override slider on top lets you apply trailer brakes independently of the vehicle brakes—incredibly useful for controlling sway in crosswind situations or managing speed on long descents without riding your brakes.
Installation is straightforward with the right vehicle-specific harness (more on that below). The P2's low-profile design tucks under the dash without taking up much space, and the mounting bracket allows angle adjustment so you can position it for easy access. It handles up to three axles, covers trucks, SUVs, and even some larger sedans, and carries Tekonsha's solid warranty.
There's a reason this controller has been a bestseller for years. No app to worry about, no Bluetooth to pair, no batteries to charge. You install it once, adjust the power knob and boost level for your trailer, and it works. Year after year, trip after trip. For tow vehicle owners who dedicate one truck to towing and want the most reliable, proven proportional controller on the market, the P2 is the answer.
Pro Tip: When you first install the P2, start with the power knob set to about halfway and no boost. Tow your loaded trailer to an empty parking lot and do a series of stops from 25 mph. Gradually increase the power setting until the trailer brakes engage firmly but without locking up. Then add boost levels if the trailer feels like it's pushing the truck during stops.
Buy the Tekonsha Prodigy P2 Brake Controller
Best for: Clean, reliable wiring installation for in-cab brake controllers
Here's something I've learned after years of troubleshooting brake controller problems for customers: nine times out of ten, the issue isn't the controller itself—it's the wiring. Bad splices, loose connections, corroded terminals, undersized wire—these are the real culprits behind intermittent braking, weak output, and mysterious fault codes. That's why I always recommend using a proper wiring harness instead of cobbling together a connection with butt connectors and electrical tape.
The Curt Universal Harness is designed to work with virtually any in-cab brake controller on the market. It provides clean, factory-style pigtail connectors that plug into your vehicle's existing brake controller port—most modern trucks from Ford, GM, RAM, Toyota, and others have these ports built in under the dash. The harness eliminates the need for wire stripping, splicing, or soldering. You plug one end into the vehicle's port, connect the other end to your brake controller, and the electrical connection is solid, clean, and corrosion-resistant.
I've seen too many DIY wiring jobs where the customer tried to save $25 on a harness and ended up spending $200 at a shop getting the wiring straightened out. The pigtail design ensures that all four connections—power, ground, brake signal, and trailer brake output—are properly gauged and securely terminated. It's the kind of boring-but-essential product that makes the difference between a brake controller that works perfectly for ten years and one that gives you intermittent headaches every few months.
If you're installing a Prodigy P2 or any other traditional in-cab controller, don't skip this part. The controller is only as reliable as the wiring connecting it to your vehicle and trailer.
Pro Tip: Before purchasing, check whether your specific vehicle make and model has a factory brake controller port under the dash. Most trucks from 2010 onward do, but the connector style varies by manufacturer. If your vehicle doesn't have a port, you'll need a vehicle-specific harness instead of this universal one.
Buy the Curt Universal Brake Controller Harness

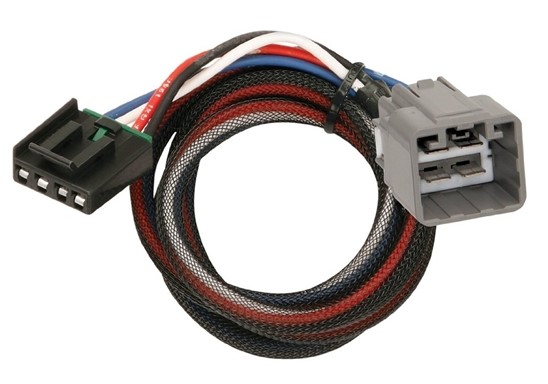

Best for: Dodge RAM owners who want a factory-fit, plug-and-play wiring connection
Dodge RAM trucks are among the most popular tow vehicles in the RV world, and for good reason—they're capable, comfortable, and engineered for serious hauling. But when it comes to installing a brake controller, RAM's wiring connector is specific to their vehicles. This Tekonsha harness is designed as an exact match for the RAM's factory brake controller port, giving you a true plug-and-play connection that feels like it came from the factory.
The two-plug design connects directly to the vehicle's existing wiring without any cutting, splicing, or crimping. One connector goes to the vehicle's brake controller port, and the other connects to your Tekonsha or other compatible brake controller. The entire installation takes about fifteen minutes with basic hand tools, and when you're done, the connection is as solid and clean as anything the dealer would do—often better, because you're using purpose-built connectors instead of generic terminal blocks.
I always recommend vehicle-specific harnesses over universal ones whenever they're available. The fit is better, the connections are more secure, and you eliminate any guesswork about which wire goes where. For RAM owners specifically, this harness is a no-brainer addition when you're purchasing a Prodigy P2 or any other in-cab controller. It turns what could be a frustrating afternoon of wiring into a quick, clean installation.
One thing to verify before ordering: check which generation of RAM you have and confirm the connector type matches. Tekonsha makes harnesses for most RAM model years, but the connector style has changed over the years. If you're not sure, give us a call at the store and we can match you to the right part number.
Pro Tip: When routing the harness, keep it away from the steering column, pedals, and any airbag components under the dash. Use zip ties to secure excess wire length so nothing hangs down where it could interfere with driving or get snagged.
Buy the Tekonsha RAM Wiring Harness
Number of axles matters. The Curt Echo handles up to two axles (four brakes), which covers most travel trailers and small-to-midsize fifth wheels. The Tekonsha Prodigy RF and P2 handle up to three axles (six brakes), which you'll need for larger trailers, triple-axle toy haulers, and heavy equipment trailers. Make sure your controller can handle every brake on your trailer.
Installation preference is the next big decision. If you want zero wiring and the ability to move between vehicles easily, the Echo or Prodigy RF are your options. If you prefer a dedicated, permanently installed controller with a physical manual override button always within reach, the P2 with the right wiring harness is the way to go. Neither approach is wrong—it depends on your towing setup and personal preference.
Vehicle compatibility is something I'd urge you to check before ordering. Most modern trucks support all of these controllers, but some vehicles have quirks with their 7-way power delivery, especially European-market vehicles and newer trucks with LED lighting systems. If you're not sure whether a specific controller will work with your vehicle, call us. We've matched thousands of combinations and can steer you right.
Don't forget about the wiring. If you're going with an in-cab controller like the P2, budget for the right wiring harness. A $15 harness is cheap insurance against years of electrical headaches. We carry both universal and vehicle-specific options so you get a clean, reliable connection regardless of what you're driving.
A brake controller is one of those products where the difference between a good choice and a bad choice isn't always obvious on a calm, dry highway—it becomes apparent in the moments that matter most. An unexpected stop. A steep grade. A rainy mountain pass with a fully loaded trailer behind you. That's when proportional braking, reliable wiring, and well-engineered hardware earn their keep.
If you want the most modern, portable solution with smartphone control and zero installation, the Curt Echo Mobile is hard to beat. If you need wireless convenience but prefer a dedicated remote over a phone app, the Tekonsha Prodigy RF is the industry standard. And if you want a proven, permanently installed controller that just works without any wireless technology involved, the Prodigy P2 remains my top recommendation after years of experience with it.
Whichever controller you choose, pair it with the right wiring harness, take the time to calibrate it properly with your specific trailer, and test it in a safe environment before heading out on a long trip. Your brakes are the most important safety system on your towing rig. Give them the controller they deserve.
