RV electrical systems can seem daunting, but understanding a few basic components – fuses, breakers, and converters – can help you troubleshoot many common problems yourself, potentially saving you a service call or a frustrating interruption to your trip.
As an RVer, I’ve learned that a little knowledge in this area goes a long way. Today, I want to walk you through how to approach some common RV electrical issues, focusing on these key components.
Knowing how to check fuses, reset breakers, and understand your converter’s role is essential for every RVer. Often, a simple blown fuse or tripped breaker is the culprit. This is absolutely true; many electrical gremlins are surprisingly simple to fix.

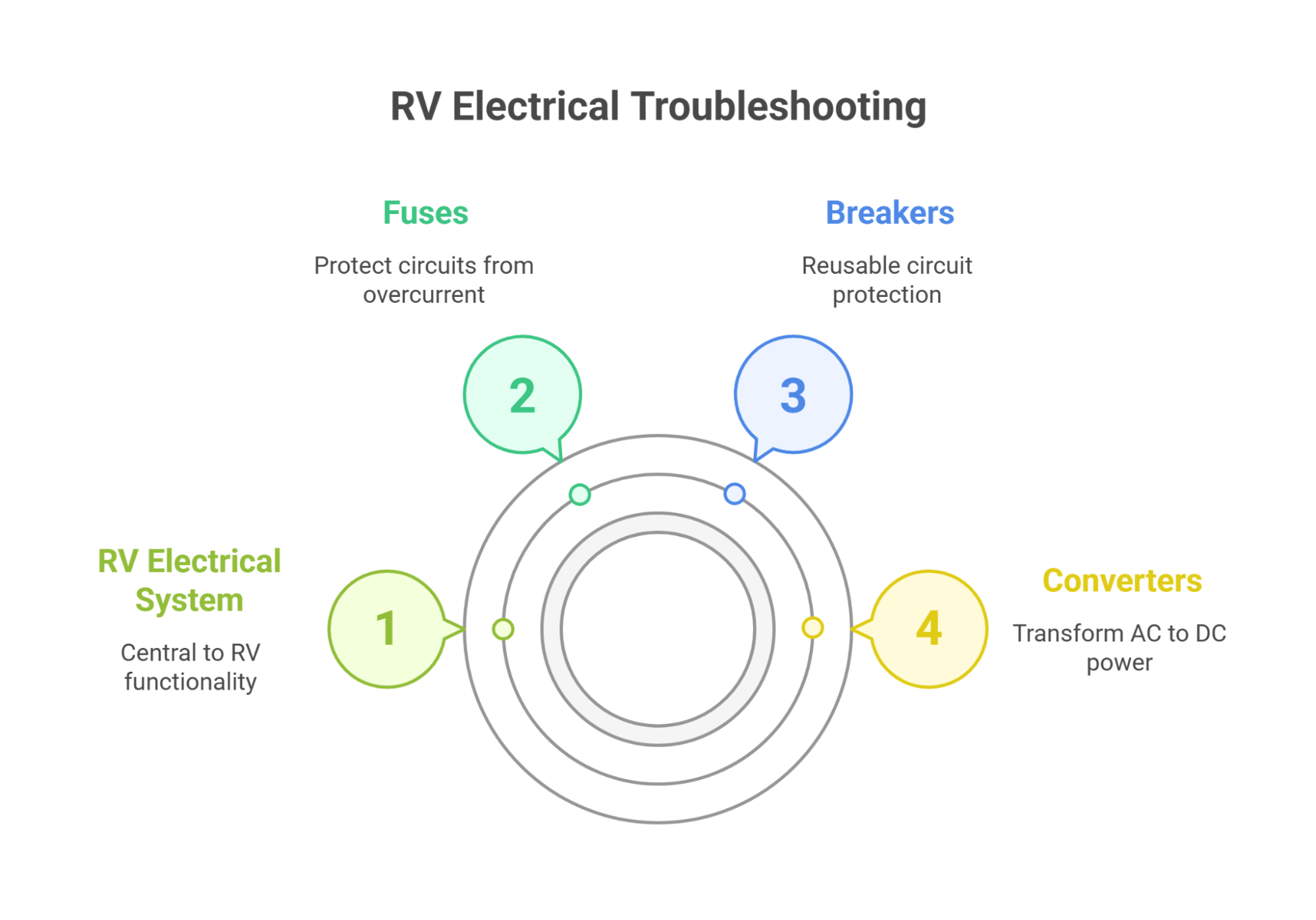

Before we get into troubleshooting, let’s quickly define our terms:
These are found in your RV’s 12-volt DC system (the system that runs off your house batteries). Fuses are designed to protect individual circuits and appliances from overcurrent.
When too much current flows, a small wire inside the fuse melts, breaking the circuit and preventing damage.
Most RVs use blade-type automotive fuses (ATC/ATO or ATM mini fuses).
These serve a similar purpose to fuses but are typically used for higher current 12-volt DC circuits (like slide-outs or leveling jacks) and for all your 120-volt AC circuits (the system that runs when you’re plugged into shore power or running your generator).
Instead of melting, a breaker “trips” (opens the circuit) when an overcurrent is detected. Breakers can be reset, usually by flipping a switch.
The converter is a vital component that does two main things: it converts 120-volt AC shore power into 12-volt DC power to run your DC appliances and charge your house batteries.
If you have an inverter, it does the opposite – converts 12-volt DC battery power into 120-volt AC power. Many modern RVs have a combination inverter/charger unit.

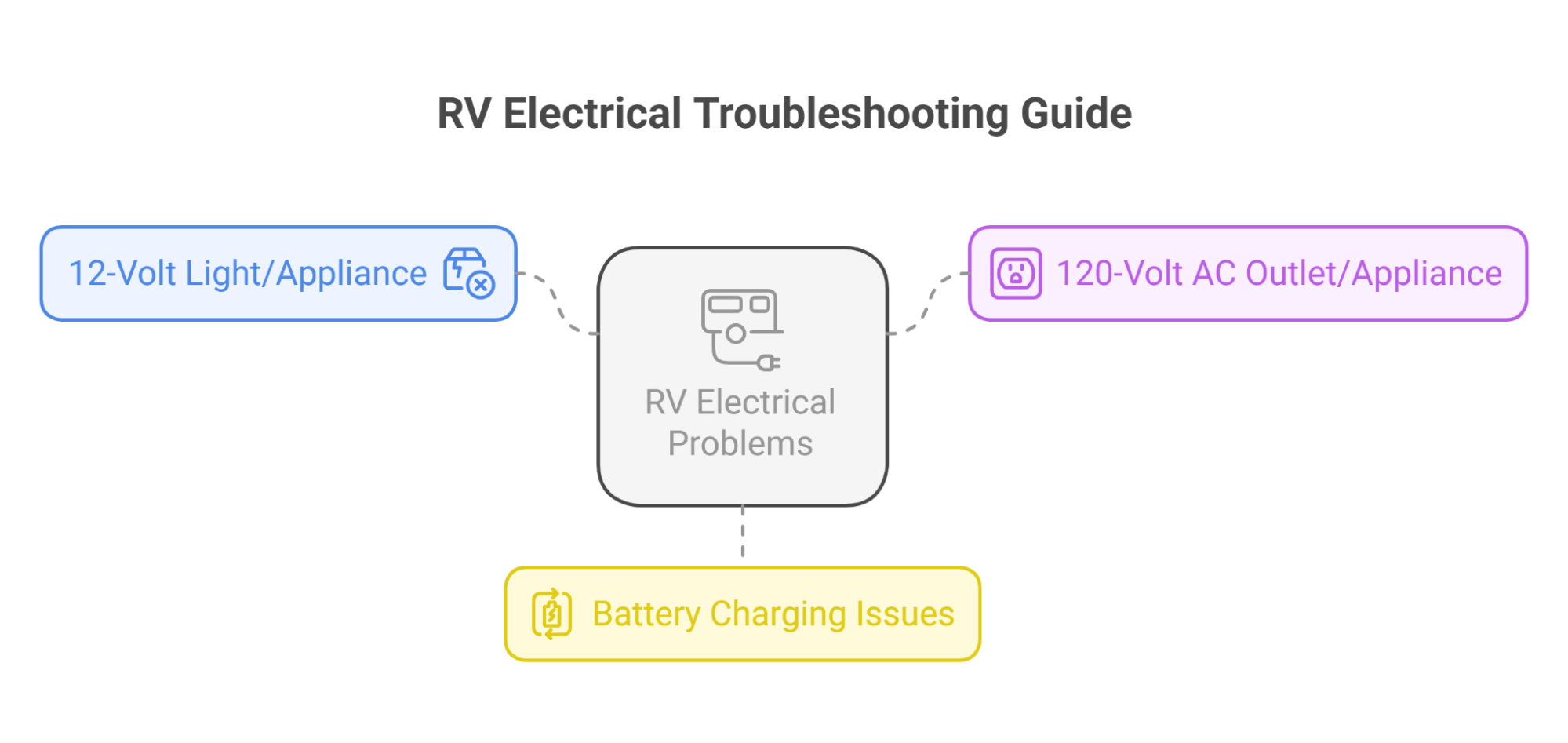

Let’s look at some typical scenarios and how to approach them. You can find replacement fuses and breakers at RVupgradestore.com.
This is often a fuse issue. For example, if your interior lights in one section suddenly go out, or your water pump won’t run:
1. Locate Your Fuse Panel: This is usually a small panel with a cover, often located near your converter or main control panel. It will have rows of blade fuses, typically labeled (though sometimes the labels are cryptic!).
2. Identify the Blown Fuse: Look for a fuse where the metal strip inside is broken or melted. Some fuse panels have an LED indicator next to each fuse that lights up when that fuse is blown – a very handy feature!
Product Example: Bussmann BP/ATM-15-RPBP/ATM-15-RP Bp/Atm-15 Amp Fuses - 5Pk (These 15 amp mini fuses are commonly used in RV electrical systems and are essential to have on hand for quick replacements).
3. Replace the Fuse:
4. Test: Turn the appliance back on. If it works, great! If the new fuse blows immediately or soon after, you have an underlying problem in that circuit (like a short or an overloaded appliance) that needs further investigation, possibly by a technician.
This usually points to a tripped circuit breaker or a problem with your shore power connection.
1. Check Your RV’s Main Breaker Panel: This panel will have several circuit breakers similar to those in a house. It’s often located near the fuse panel or in a utility compartment.
2. Look for a Tripped Breaker: A tripped breaker will usually be in the “off” position or in a middle position. To reset it, flip it fully to the “off” position and then back to “on.”
Product Example for Standard Circuit Breakers: Pollak 54-250PL Plastic Circuit Breakers 50 Amp (These are commonly used in RV electrical systems for high-current protection).
Product Example for Specialized Applications: Redarc CBK30-EB Circuit Breaker for Tow-Pro Elite And Classic Brake Controllers (A specialized circuit breaker designed specifically for brake controller protection).
3. Check GFCI Outlets: Bathrooms, kitchens, and exterior outlets are often protected by a Ground Fault Circuit Interrupter (GFCI) outlet. These have “Test” and “Reset” buttons. If a GFCI-protected outlet (or others downstream from it) isn’t working, try pressing the “Reset” button on the GFCI outlet itself.
4. Check the Shore Power Pedestal: If multiple AC items aren’t working, the breaker at the campground power pedestal might have tripped. Reset it carefully.
5. Inspect Your Power Cord and Connections: Ensure your power cord is securely plugged in at both ends and shows no signs of damage.
This could indicate a problem with your converter.
1. Check Converter Breaker/Fuses: Your converter will have its own circuit breaker in the 120V AC panel. It may also have “reverse polarity” fuses directly on the unit itself, which can blow if the batteries were ever connected backward. These are usually two high-amperage fuses (e.g., 30A or 40A).
2. Listen to the Converter: When plugged into shore power, you should hear the converter’s cooling fan running, especially if it’s actively charging the batteries. If it’s silent and your batteries aren’t charging, it might be an issue.
3. Check Battery Connections: Ensure your battery terminals are clean and tight.
4. Verify Output Voltage (if you have a multimeter): A healthy converter should be putting out around 13.2 to 14.4 volts DC when charging.
Product Example: WFCO WF-8965-AD Power Center Converter, 65 Amp, Brown (A high-quality power center converter that provides reliable battery charging and power distribution).
If you’re experiencing problems with your trailer’s brake lights, turn signals, or other towing-related electrical functions:
1. Check the Connector: Ensure the trailer connector is securely plugged into your tow vehicle and free of corrosion.
2. Inspect Wiring: Look for any damaged or pinched wires between the tow vehicle and trailer.
3. Consider a Converter: If your tow vehicle and trailer have different electrical systems (e.g., different number of wires/pins), you might need a tail light converter.
Product Example: Husky Towing 13162 Power Tail Light Converter (This converter helps ensure proper communication between your tow vehicle and trailer lighting systems).
While many issues are simple fixes, don’t hesitate to call a qualified RV technician if:
Understanding the basics of your RV’s fuses, breakers, and converter can empower you to solve many common electrical hiccups. Always carry spare fuses, know where your panels are, and approach troubleshooting systematically and safely.
By familiarizing yourself with these components, you’ll be better prepared to keep your RV’s electrical systems running smoothly, ensuring your adventures are well-lit and comfortable.
Remember, safety first! If you’re ever in doubt, consult your RV’s manual or a professional.
