Home > Hitches > Ball Mounts >

B&W Hitches TS10049C Tow & Stow 10" Adjustable Ball Mount - 1-7/8", 2", 2-5/16" Chrome Triple Ball

B&W Hitches TS10049C Tow and Stow 10-inch adjustable triple ball mount with chrome 1-7/8, 2, and 2-5/16 inch balls for 2-inch hitch receivers

Alternative Views:

: $369.00

Part Number: TS10049C
Manufacturer: B&W Hitches

Quantity in Stock :10

Availability: In Stock

Qty:

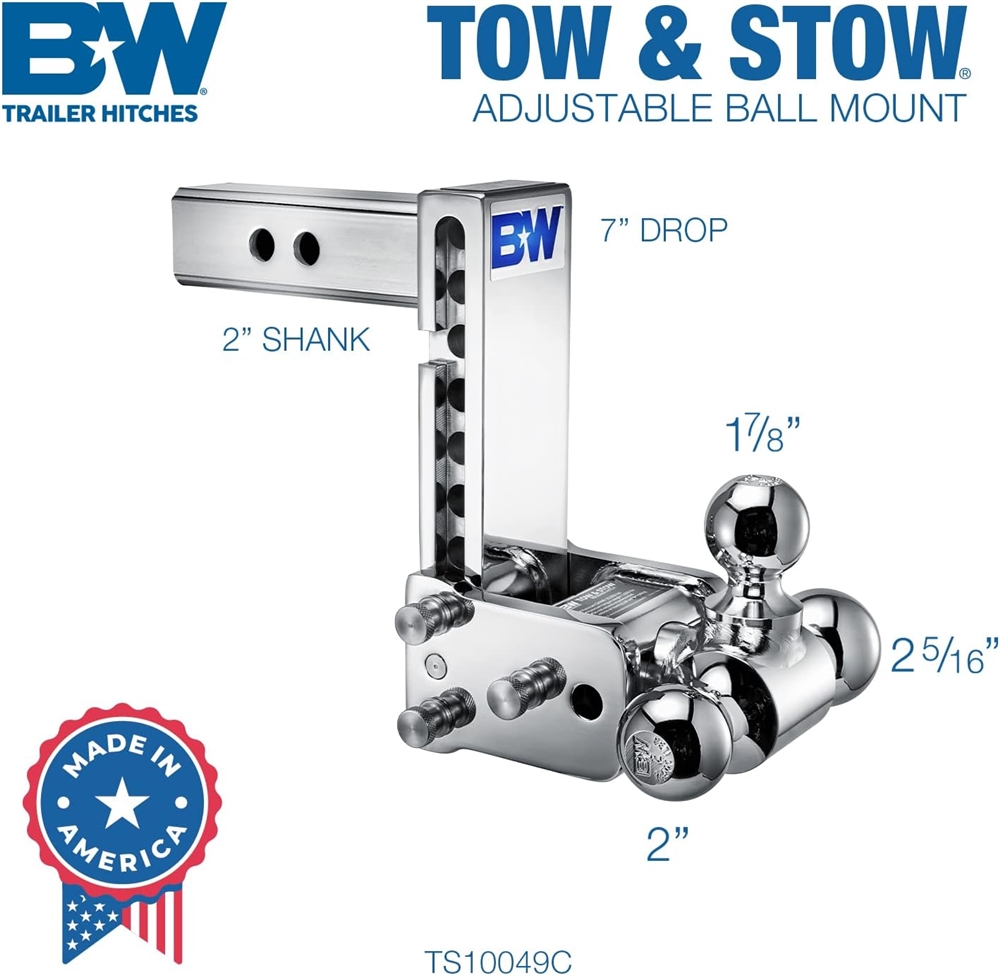

B&W Hitches Triple Ball -- Chrome Fits 2" Receivers B&W Tow and Stow TS10049C -- 10" Adjustable Triple Ball Mount with 1-7/8", 2", and 2-5/16" Chrome Balls

Stop swapping ball mounts every time you hitch a different trailer. The B&W Tow and Stow TS10049C puts three chrome ball sizes on a single adjustable shank, folds away when not in use, and handles everything from small utility trailers to large fifth-wheel-capable bumper pulls -- all without tools.

One Mount. Three Balls. Zero Fumbling at the Hitch.

The B&W Tow and Stow series is one of the most recognized adjustable ball mount families in the towing aftermarket, and the TS10049C is the triple-ball, chrome-finish variant built for RV owners and truck drivers who tow multiple trailers with different coupler sizes. The shank adjusts to deliver a 10-inch drop or rise, making it ideal for lifted trucks or tow vehicles sitting significantly higher than the trailer coupler.

All three ball sizes -- 1-7/8 inch, 2 inch, and 2-5/16 inch -- are permanently mounted and chrome-plated. Rotate the head to the ball size you need, lock it, and go. When the hitch is not in use, the ball head folds up tight against the shank so it does not drag the ground, catch on anything, or become a shin hazard in the garage.

Three Balls, Always Ready

Chrome 1-7/8", 2", and 2-5/16" balls are permanently attached. Rotate to the correct size and lock -- no wrenches, no carrying spare balls in the truck bed.

10-Inch Drop or Rise

The shank adjusts to a full 10 inches of drop or rise, accommodating lifted trucks, taller tow vehicles, and a wide range of trailer tongue heights.

Folds Flat When Not Towing

The ball head pivots and folds up against the shank when not in use, eliminating ground clearance issues and the familiar leg-bruising hazard of fixed ball mounts.

Chrome Finish

Triple chrome plating provides a clean look and corrosion resistance compared to standard zinc or powder-coated finishes, keeping the balls smooth for coupler engagement.

Where the TS10049C Fits in the Tow and Stow Lineup

B&W offers the Tow and Stow series in several configurations differentiated by number of balls (single, double, triple), finish (chrome vs. powder coat), and drop/rise height (ranging from roughly 3 inches to 10 inches). The TS10049C is specifically the triple-ball, 10-inch, chrome variant. If you need less drop, B&W offers shorter-drop triple-ball versions. If you only need two ball sizes, the dual-ball models in the same series are lighter. The TS10049C is the top-of-range option for maximum coupler compatibility and maximum height adjustment in one unit.

Best For: RV owners who tow a travel trailer with a 2-5/16" coupler most of the time but also move a boat, utility trailer, or car hauler with a smaller ball -- without wanting a garage full of ball mounts.

Fitment and Receiver Compatibility

The TS10049C is designed for standard 2-inch square hitch receivers (Class III, Class IV, and most Class V applications). The shank inserts into the receiver tube and is secured with a standard 5/8-inch hitch pin or receiver lock (not included -- sold separately). It is not designed for 1-1/4-inch receivers.

Fits all 2-inch receiver-equipped tow vehicles: full-size trucks, SUVs, motorhomes with hitch receivers, and heavy-duty vans
Receiver pin hole: standard 5/8-inch diameter
Not compatible with 1-1/4-inch Class I or Class II receivers
Works with B&W's own receiver locks and with most aftermarket 5/8-inch hitch pin locks

Ball Size Applications

Having all three common ball sizes on one mount covers virtually every bumper-pull trailer coupler size sold in North America:

1-7/8 inch: Small utility trailers, older boat trailers, jet ski trailers, light-duty cargo trailers
2 inch: Most mid-size travel trailers, horse trailers, enclosed cargo trailers, boat trailers, weight-distribution systems with 2-inch sockets
2-5/16 inch: Large travel trailers, fifth-wheel-to-gooseneck adapters, heavy-duty boat trailers, large car haulers

Weight Ratings Note: Always verify the weight rating of the specific ball position you are using against the gross trailer weight (GTW) and tongue weight (TW) of your trailer. Ball mount weight ratings vary by drop setting -- maximum rated capacity is typically achieved at lower drop positions. Refer to the B&W capacity chart for the TS10049C at your specific drop configuration.

Installation and Use Tips

Setup Tips:

Measure the height difference between your hitch receiver opening and the trailer coupler before selecting drop -- you want the coupler level or very slightly nose-down when loaded.
Torque your hitch ball nuts to B&W spec if they are ever removed -- the balls on the Tow and Stow are designed to stay permanently attached, but inspect periodically for tightness.
Apply a light wipe of grease or anti-seize to the shank before inserting into the receiver to prevent galvanic binding, especially in wet or salt-road conditions.
A receiver lock is strongly recommended -- the TS10049C is a premium mount and a theft target. B&W and several aftermarket brands offer matching 5/8-inch receiver locks.
Fold the ball head up when driving without a trailer to protect the balls and maintain ground clearance.

Product Specifications

Manufacturer	B&W Hitches
Part Number	TS10049C
UPC	843233004250
Series	Tow and Stow
Finish	Chrome (triple chrome plated balls)
Number of Balls	3 (triple ball)

Ball Sizes

Ball 1	1-7/8 inch diameter
Ball 2	2 inch diameter
Ball 3	2-5/16 inch diameter
Ball Finish	Chrome plated

Dimensional and Physical Data

Drop / Rise	10 inches
Receiver Size	2 inch (standard square tube)
Hitch Pin Hole	5/8 inch diameter
Product Weight	34.23 lbs
Packaged Length	16.88 inches
Packaged Width	12.0 inches
Packaged Height	8.88 inches

Compatibility

Receiver Class	Class III, Class IV (2-inch receivers)
Hitch Pin	5/8 inch (not included)
Vehicle Types	Full-size trucks, SUVs, motorhomes with 2-inch receivers, HD vans
Not Compatible With	1-1/4 inch Class I or Class II receivers

In the Box

Ball Mount Head	Included (with 1-7/8", 2", 2-5/16" balls pre-installed)
Adjustable Shank	Included
Hitch Pin / Clip	Not included -- standard 5/8" pin required
Receiver Lock	Not included -- sold separately

Pair With: A B&W or aftermarket 5/8-inch receiver hitch lock to secure the TS10049C in your receiver. Also consider a hitch ball lube or cover for the 1-7/8" and 2" balls when using the 2-5/16" position to keep unused balls clean.

Important Information -- Read Before Towing

Always verify the rated capacity of this ball mount at your specific drop setting before towing. Weight ratings decrease as drop increases -- confirm GTW and TW are within the rated limits for your configuration.
Do not exceed the tow vehicle manufacturer's tow rating or hitch receiver rating, regardless of the ball mount capacity.
The 5/8-inch hitch pin is NOT included. Do not tow without a properly installed and secured hitch pin or locking hitch pin.
Inspect the folding lock mechanism, ball tightness, and shank adjustment hardware before every trip. Loose components under load can cause trailer separation.
This mount fits 2-inch receivers ONLY. Do not attempt to use in 1-1/4-inch receivers with an adapter under tow load unless the adapter is independently rated for the load.
Not intended for fifth-wheel or gooseneck towing -- for bumper-pull trailers with standard couplers only.
Chrome finish requires periodic cleaning and light lubrication to prevent surface corrosion in high-moisture or road-salt environments.
