Set up a compatible 2024-2026 GMC Sierra 2500/3500 HD pickup for flat towing with this Blue Ox BX1761 baseplate. The vehicle-specific design provides solid attachment points for a compatible Blue Ox tow bar on Sierra HD models without the AEV bumper.
The Blue Ox BX1761 baseplate is designed for 2024-2026 GMC Sierra 2500/3500 HD pickups without the AEV bumper. It is listed for applications that include diesel, Adaptive Cruise Control, turbo, and shutters.
This baseplate provides the vehicle-mounted connection points needed to attach a compatible Blue Ox tow bar for dinghy towing behind a motorhome. The custom-fit design is engineered for the Sierra HD front-end configuration and should be matched carefully to the vehicle before ordering.
Designed for 2024-2026 GMC Sierra 2500/3500 HD pickups
Provides attachment points for compatible Blue Ox tow bars
Made for listed Sierra HD models without the AEV bumper
Custom-fit baseplate bolts to the truck chassis for flat towing use
Fits 2024-2026 GMC Sierra 2500/3500 HD pickup applications listed by Blue Ox without the AEV bumper. Includes diesel, Adaptive Cruise Control, turbo, and shutters. Confirm vehicle year, model, bumper package, front-end equipment, tow bar compatibility, and flat towing requirements before ordering.
1. Confirm Vehicle: Verify the GMC Sierra HD year, 2500/3500 model, bumper package, front-end equipment, and towability before installation. 2. Review Instructions: Read the Blue Ox installation instructions completely before beginning the baseplate installation. 3. Remove Front Components: The fascia cover, fascia, grille, and bumper are removed and reinstalled during installation. Factory tow hooks are removed and not reinstalled. 4. Install Baseplate: Position the baseplate, install supplied hardware, drill and trim where required, and torque all fasteners to Blue Ox specifications. 5. Final Check: Confirm tow bar tab width compatibility, reinstall removed components, reconnect electrical connections, and test the complete flat towing setup before travel.

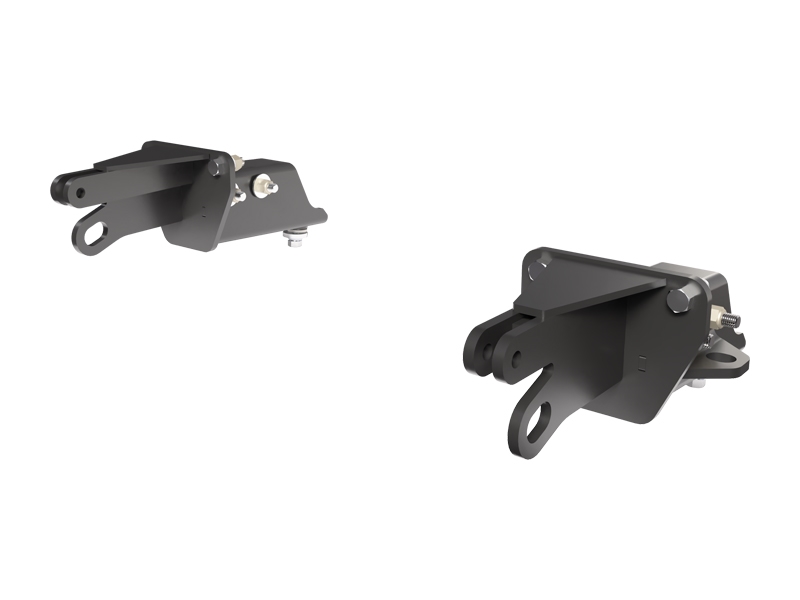

Blue Ox BX1761 baseplate assemblies Electrical bracket Convenience link plates Safety cable hardware Installation hardware
Blue Ox Customer Care: Phone: 800-228-9289 Phone: 402-385-3051 Website: blueox.com For fitment help, confirm the GMC Sierra HD year, 2500/3500 model, AEV bumper status, diesel/ACC/turbo/shutter equipment, tow bar model, and flat towing requirements before ordering.
