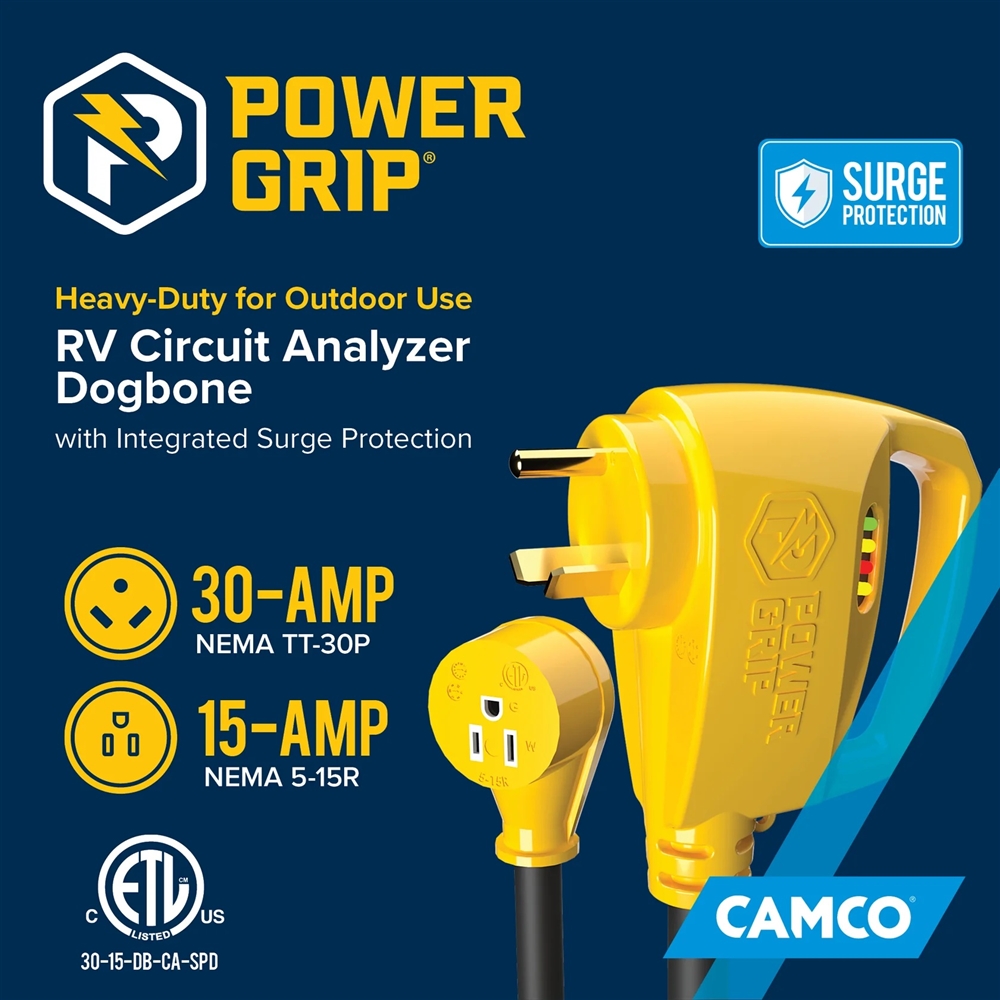

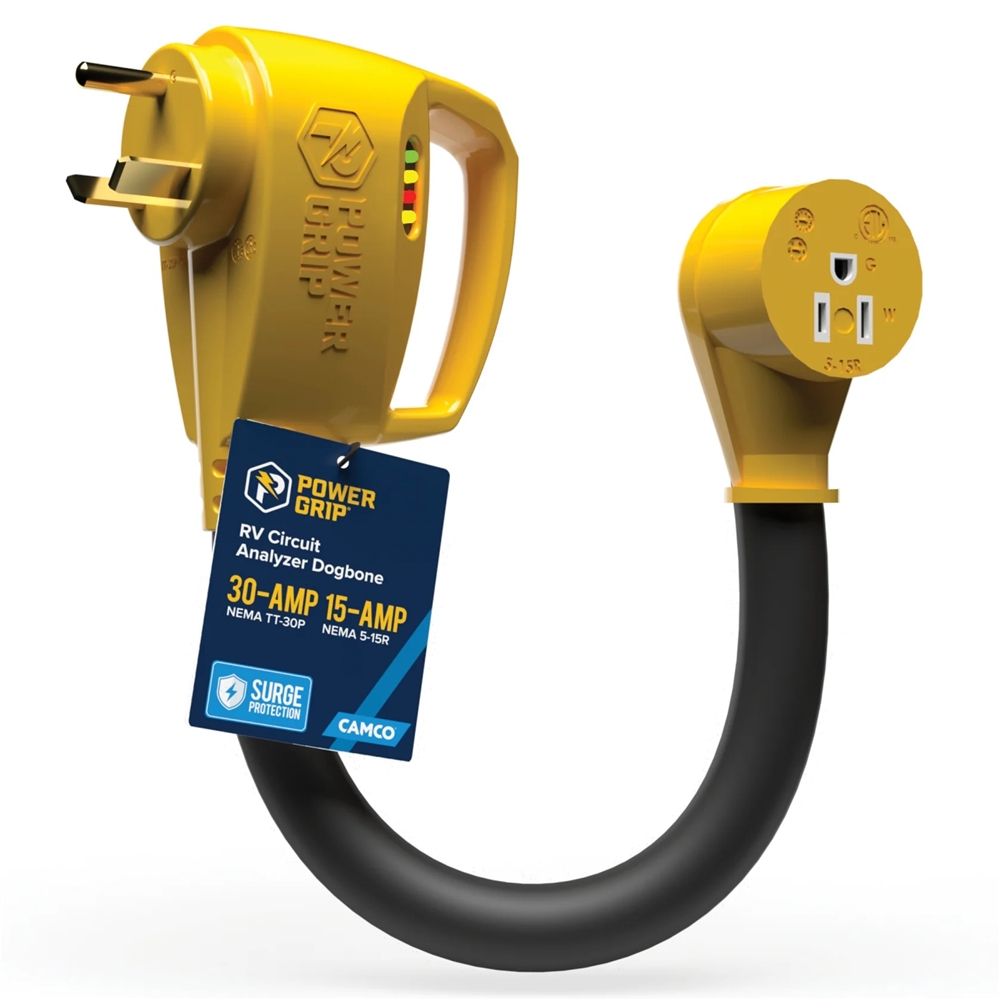

Adapt a compatible 30-amp RV power source to a 15-amp female connection with the Camco 55461 PowerGrip circuit analyzer dogbone. This 12" adapter adds fault indication and surge protection in one compact 30A male-to-15A female setup.
The Camco 55461 PowerGrip RV Circuit Analyzer Dogbone Adapter is designed to plug into a compatible 30-amp RV-style power outlet and provide a 15-amp female connection. It is rated for 125 volts and 1875 watts.
This 12" adapter combines a dogbone connection, circuit analyzer, fault indication, and integrated surge protection in one unit. The PowerGrip design helps make plugging and unplugging easier while reducing strain on the adapter body.
Adapts compatible 30-amp power outlets to a 15-amp female connection

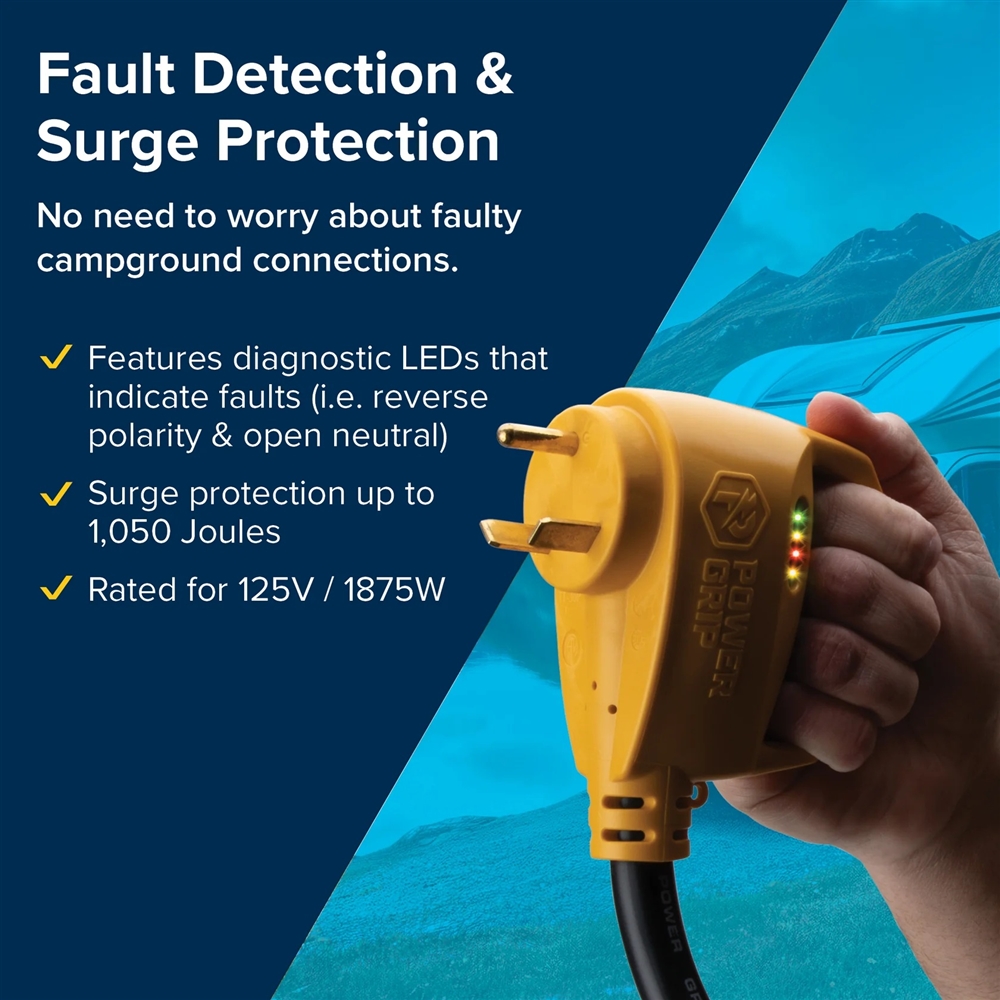

Fault indication helps identify common power connection issues
Integrated surge protection helps protect connected equipment
Grip-style body helps make connection and removal easier
Designed for compatible 30-amp, 125V RV-style power outlets and 15-amp connected loads. This is a 12" dogbone adapter, not a 12' extension cord. Confirm outlet type, plug configuration, voltage, wattage, and connected load before ordering.
1. Confirm Power Source: Verify the outlet is a compatible 30-amp, 125V RV-style power source. 2. Connect Adapter: Plug the 30-amp male end into the compatible power source. 3. Check Indicators: Review the circuit analyzer fault indicators before connecting a load. 4. Connect Device or Cord: If the indicators show a proper connection, plug a compatible 15-amp device or cord into the female end of the adapter. 5. Disconnect Safely: Turn off or disconnect loads before unplugging the adapter from the power source.
One Camco 55461 PowerGrip 12" 30-amp male to 15-amp female circuit analyzer dogbone adapter with integrated surge protection
Camco Customer Support: Phone: 800-334-2004 Website: camco.net For fitment help, confirm the power source amperage, outlet type, plug configuration, voltage rating, connected load, and complete RV electrical setup before ordering.
