Replaces worn or lost hardware used to mount the Equal-i-zer hitch head to an adjustable shank. Fits 6,000–14,000 lb GTW Equal-i-zer hitch models. Includes 2 Grade 8 bolts, 4 flat washers, 2 lock washers, 2 nuts, and 1 spacer rivet with 8 washers for head tilt adjustment.
The bolts that secure the Equal-i-zer hitch head to the adjustable shank are Grade 8 hardware under significant mechanical load every time you tow. Over years of use, towing vibration, rust, or a hitch rebuild after damage can leave you needing replacement bolts, washers, and the spacer rivet that controls hitch head tilt angle. The 90-02-9100 is Equal-i-zer's replacement hardware kit that covers everything needed for a complete head-to-shank hardware replacement in one purchase.
The kit is designed for Equal-i-zer weight distribution heads rated from 6,000 lb to 14,000 lb GTW — covering the 600, 1,000, 1,200, and 1,400 lb tongue weight models. It's also commonly ordered when rebuilding or reassembling a hitch, when setting up a hitch head on a new shank, or when hardware has been lost or visibly worn. The 1/2" diameter spacer rivet and its 8 accompanying washers are particularly valuable — they control how the hitch head tilts relative to the shank, and are not easily sourced individually at a hardware store.
Two 3/4" diameter x 5" long Grade 8 bolts — the highest common strength grade for heavy-duty fastener applications
Everything needed for a full head-to-shank hardware replacement — bolts, flat washers, lock washers, nuts, spacer rivet, and tilt washers in one pack
Includes the 1/2" spacer rivet with 8 washers that controls hitch head tilt angle — not easily sourced individually
Covers Equal-i-zer 600, 1,000, 1,200, and 1,400 lb tongue weight hitch heads — not for the 4,000 lb GTW model
The 90-02-9100 bolt pack is designed specifically for Equal-i-zer hitch heads rated for 6,000 lb to 14,000 lb GTW (600 lb, 1,000 lb, 1,200 lb, and 1,400 lb tongue weight models). The hardware dimensions — including 3/4" diameter x 5" long bolts with 1-1/8" head size — are specific to these models. For the 4,000 lb GTW model (400 lb TW): See the Equal-i-zer 90-02-9400 instead — it uses smaller hardware (5/8" diameter x 4-1/2" long bolts with 15/16" head size) that is specific to the smaller 4,000 lb hitch head. Note on tilt washer: The 90-02-9100 includes 1/2" washers for the spacer rivet that adjusts hitch head tilt. If you only need the tilt washer specifically (see photo #26 in the owner's manual), see the Equal-i-zer 90-04-9110 Replacement Spacer Washer instead.
Consider replacing the hitch head-to-shank hardware when: • Visible rust or corrosion on the bolts, washers, or nuts — particularly after extended outdoor storage or heavy use in wet climates • Mounting a head to a new shank — whenever setting up a hitch with a new shank, starting with fresh hardware is advisable • Rebuilding after damage — if the hitch was impacted or the head-to-shank joint was stressed beyond normal towing loads • Lost or missing hardware — if bolts, washers, or the spacer rivet are missing from an existing setup • Preventive maintenance — some users replace hardware as part of a periodic hitch inspection, particularly after several years of heavy towing service Refer to the Equal-i-zer Owner's Manual for correct torque specifications when installing new hardware. Contact Equal-i-zer at (800) 478-5578 for guidance.

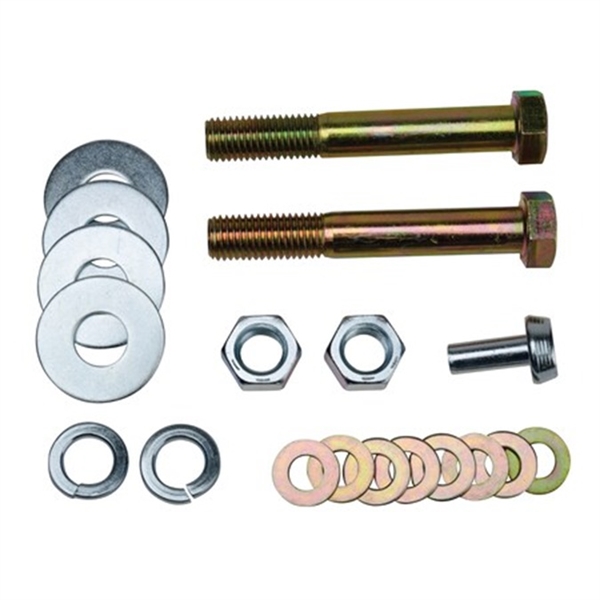

In The Pack (90-02-9100): • (2) Grade 8 Bolts — 3/4" x 5" • (4) Flat Washers — 3/4" • (2) Lock Washers — 3/4" • (2) Nuts — 3/4" • (1) Spacer Rivet — 1/2" diameter (head tilt adjustment) • (8) Tilt Washers — 1/2" Related Parts: • 90-02-9400 — Bolt pack for 4,000 lb GTW model (smaller hardware) • 90-04-9110 — Replacement Spacer Washer only (tilt washer, if only that is needed)
Equal-i-zer / Progress Mfg.: Phone: (800) 478-5578 Website: equalizerhitch.com Made in the USA
Select the correct bolt pack based on your hitch head's GTW rating. Hardware dimensions differ between models.
