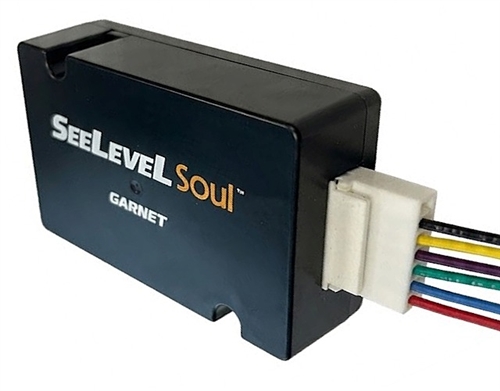

Garnet SeeLeveL Soul 708-RBT Tank Monitoring Data Link Module

Overview

The Garnet SeeLeveL Soul 708-RBT is a data link module designed for RVs with multiplex control systems. Unlike traditional tank monitors with built-in displays, the Soul transmits tank level data directly to your RV's existing multiplex system via the RV-C bus – the industry-standard communication protocol used by most modern RV control systems.RV-C Compatible

Using Garnet's proven SeeLeveL external-mount sender technology, the Soul delivers highly accurate tank readings without the unreliability of in-tank probe sensors. The senders mount on the outside of your holding tanks, eliminating the fouling, corrosion, and false readings that plague traditional sensors. The system monitors up to 7 holding tanks, plus an existing LPG sensor and your RV battery voltage.

Key Features

• Monitor up to 7 tanks – 2 Fresh, 3 Grey, 2 Black configurations
• RV-C bus communication – integrates with existing multiplex systems
• External-mount senders – no in-tank probes to foul or corrode
• LPG tank input – connects to existing propane tank sensor
• Battery voltage monitoring – 0.1V resolution
• Double-stack capability – for taller tanks (up to 34")
• Auto-calibrating senders – cut to length, system self-calibrates
• Built-in diagnostics – LED patterns indicate system status
• USB configuration – program via PC with free software
• Dual RV-C connections – pigtail harness or 4-pin connector
• Compact design – mounts in concealed location
• Low power draw – less than 200mA

Tank Configuration Options

The Soul can be configured for virtually any RV tank arrangement:

• Fresh 1 – Primary fresh water tank
• Fresh 2 – Secondary fresh water tank
• Grey 1 – Primary grey water (sink/shower)
• Grey 2 – Secondary grey water
• Grey 3 – Tertiary grey water (galley)
• Black 1 – Primary black water (toilet)
• Black 2 – Secondary black water
• LPG – Propane tank (via existing sensor)

Enable only the tanks you have – unused tanks can be disabled so they don't report to the RV-C bus.

Compatible Senders

The Soul works with these SeeLeveL sender models (sold separately):

• 710-AR2 – Standard sender, tank heights 3.5" to 13"
• 710-ES3 – Extended sender, tank heights 10" to 17"
• 710-SS2 – Extended/tall tank sender for tank heights 7.5" to 18"

Senders can be double-stacked for tanks up to 34" tall. Select "Stacked" in the configuration software when using two senders on a single tank.

Perfect For

• New RV builds with multiplex control systems
• RV upgrades where existing tank monitors have failed
• RVs with touchscreen panels that support RV-C tank data
• Firefly, Spyder, OneControl and other RV-C systems
• Custom installations requiring reliable tank data

Specifications

Wiring Connections

7-Pin pigtail harness (12" leads, 18 AWG):

Also includes RV-C 4-pin CAN connector as alternate connection method.

LED Diagnostic Patterns

What's Included

• SeeLeveL Soul 708-RBT Module
• 7-Pin pigtail wiring harness (12")
• Installation manual

What's NOT Included

• Tank senders (sold separately)
• Micro-USB cable (standard cable works)
• Display panel (uses RV's existing system)

Configuration Software

The free Soul Configuration Tool software is required to configure the module. Download from Garnet's website. Connect the Soul to your PC via Micro-USB to select which tanks to monitor and whether senders are single or double-stacked.

Garnet also offers pre-configured modules for common tank arrangements.

Installation Tips

• Mount module in concealed, accessible location
• Use butt connectors or solder – NO spade connectors
• Ground to same circuit as breaker panel
• Keep sender wiring away from 120VAC lines
• Fuse power circuit at 7.5A maximum
• Support wiring harness – don't let it pull on senders

Manufacturer Support

Garnet Instruments
Toll Free: 1-800-617-7384
Website: garnetinstruments.com
