Garnet 709-P3W Seelevel II Model Tank Monitor System
Garnet 709-P3W Seelevel II Model Tank Monitor
Garnet 709-P3W-1003 Seelevel II Model Tank Monitor



: $210.00
MFG P/N: 709-P3W-1003
MFG: Garnet Technologies
UPC #: 616245332600
Weight (lbs): 3
Shipping: Free Shipping

Quantity in Stock :11


Availability:
In Stock
Product Code: 709-P3W
Qty:

DESCRIPTION Instructions

With the Garnet 709-P3W Seelevel II Model Tank Monitor you will have accurate tank readings on your fresh, grey, black & LP tanks along with battery voltage and a water pump switch. There is nothing more frustrating than having inaccurate tank readings on a long holiday weekend, making you worry if you can make if before needing water or worse having to dump the tanks.. Instead of single points that give you only a close approximation of how full your tanks are this system offers a continuous level and shows an actual number, in percent of full. A three way switch and monitoring LED is provided for the water pump.
  • Provides accurate tank level information using percentage of full readout
  • Measures tanks up to 12 inches tall with a single sender or 24 inches tall with dual senders
  • Tanks are monitored using Garnet's proprietary external level sensing technology
  • Tank senders connect to display via a one wire bus which saves wiring costs
  • LPG tank connection compatible with existing electric senders Calibrate LPG at first fill of tank or it can be factory calibrated.
  • Black panel, approximately 4" wide by 2.8" high by 1" deep
  • Display requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts.
  • Current drain is less than 200mA

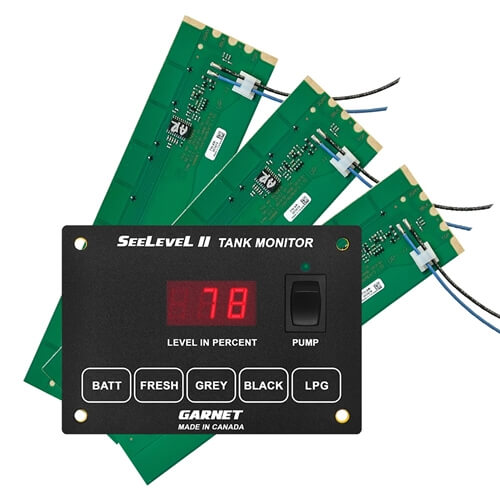

  • System includes: 1 display monitor, 3 – 12″ 710-ES tank senders and 1 pigtail.
  • Note: The 12" 710-ES can be exchanged by the 6″ 710JS or 16" 710SS Senders. (If you need to exchange senders, please call 866-332-7881 to place your order. Additional charges may apply.)
  • Limited 1 year manufacturer warranty.
*Note: This system will not work on metal tanks

Garnet Technologies 709-P3W Seelevel II Model Tank Monitor

Additional Product Information

Resolution: 3/8 inch (10 mm)

Accuracy: +/- 8% or better, limited by resolution and tank shape

Operating temperature range: +32 to +140 °F (0 to + 60 °C)

Sender materials: 0.008” thick glass epoxy circuit board with conformal coating for circuit protection. Laminated on the back with 3M 300LSE Bonding Adhesive.

Sender length range: 4-1/2 to 12 inches, which will measure tank heights from 5” to 14” (single sender) and up to 26” (dual senders).

Display mounting panel: Black flush mount panel, approximately 4” wide by 2.8” high by 1” deep (102mm wide X 71mm high X 25mm deep). Panel screws to wall. Required cutout size is 3” wide by 1.8” high.

System power requirements: Display requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts. Current drain is less than 200mA.

Wiring: A single two wire conductor required from the display to the senders. All the senders are wired in parallel. 12 V power and ground required for display. Single wire required for LPG sender if sender grounded at tank.

LPG: Display will work with an LPG sender with a maximum resistance of 50 ohms to 500 ohms. Display shows increasing level as resistance increases. System must be calibrated with the LPG tank full, or it can be factory calibrated.

Pump Switch: The pump switch is rated for a maximum of 10 amps. The use of a relay is required if more than 10 amps is needed. We recommend using a 10 amp fuse inline with the switch.
