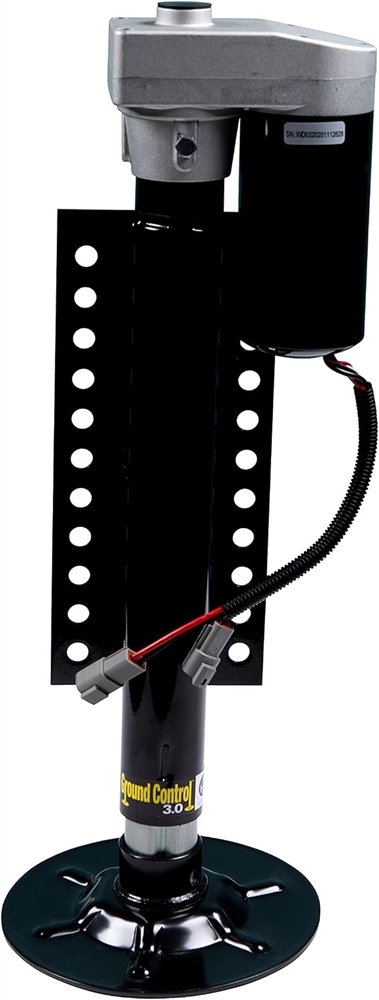

Restore left rear leveling function on a compatible Ground Control 5th wheel leveling system with the Lippert 305339 Hall Effect jack. This replacement leg includes the rear jack, motor, footpad, and mounting brackets.
The Lippert 305339 Ground Control Rear Hall Effect Jack is a replacement left rear leg for compatible Lippert Ground Control automatic 5th wheel RV leveling systems. It is designed to replace the left rear/follow leg in the leveling system.

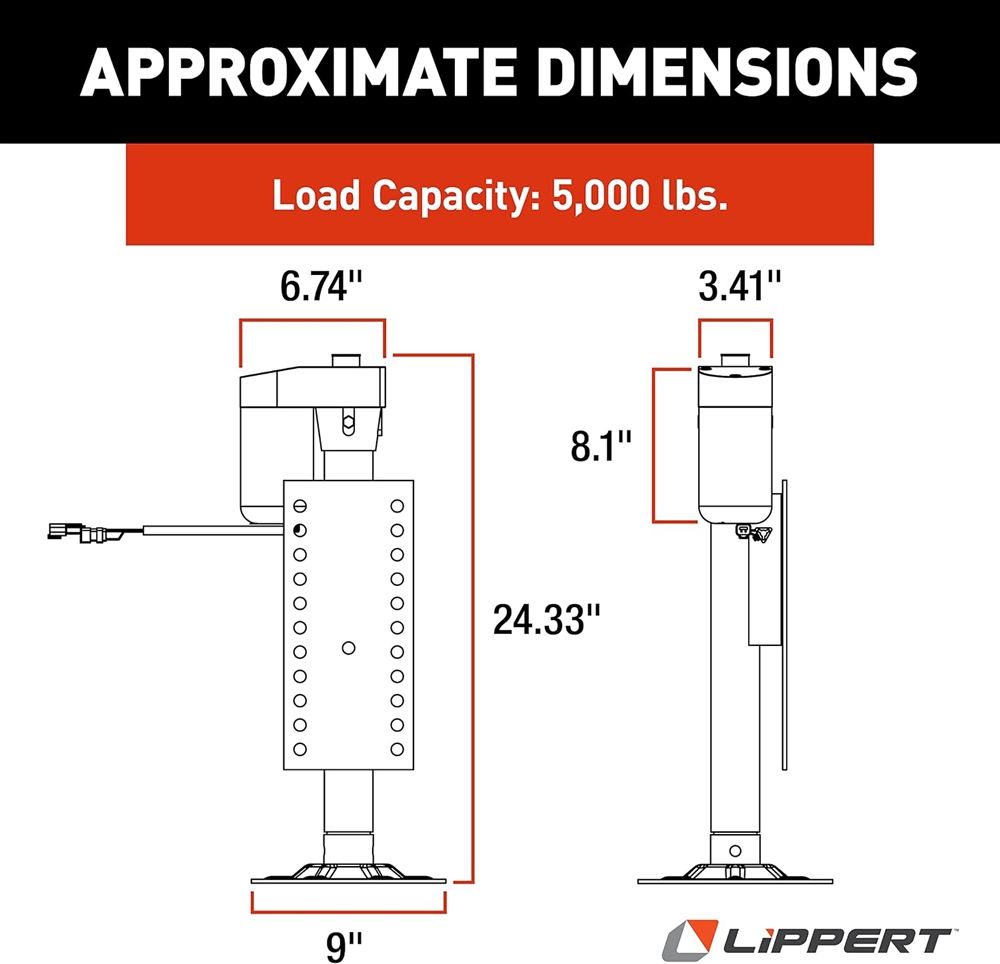

This replacement jack has a 5,000-lb load capacity and includes the motor and footpad for service replacement. The jack provides 12-1/2" of total lift, extends to 36-3/4", and retracts to 24-1/2".
Designed for the left rear/follow leg position on compatible systems
Compatible replacement jack for Ground Control leveling systems
Rated for 5,000 lb load capacity in compatible applications
Provides 12-1/2" total lift range
Designed for compatible Lippert Ground Control automatic 5th wheel leveling systems. Confirm system model, jack position, left rear/follow leg requirement, wiring connection, mounting style, and original equipment part number before ordering.
1. Confirm Fit: Verify the leveling system model, jack position, wiring, mounting style, and original part number before installation. 2. Support RV Safely: Securely support the RV according to the leveling system service instructions before removing the existing jack. 3. Disconnect Existing Jack: Disconnect power and wiring, then remove the old left rear jack assembly from the mounting location. 4. Install Replacement Jack: Mount the new jack and connect the motor wiring according to Lippert service instructions. 5. Test System: Run the leveling system through the required test or calibration process and confirm proper jack operation before travel.
One Lippert 305339 left rear Hall Effect jack Motor Footpad Mounting brackets
Lippert Customer Support: Phone: 432-LIPPERT (432-547-7378) Website: lippert.com For fitment help, confirm the Ground Control system model, jack position, left rear/follow leg requirement, wiring connection, mounting style, and original part number before ordering.
