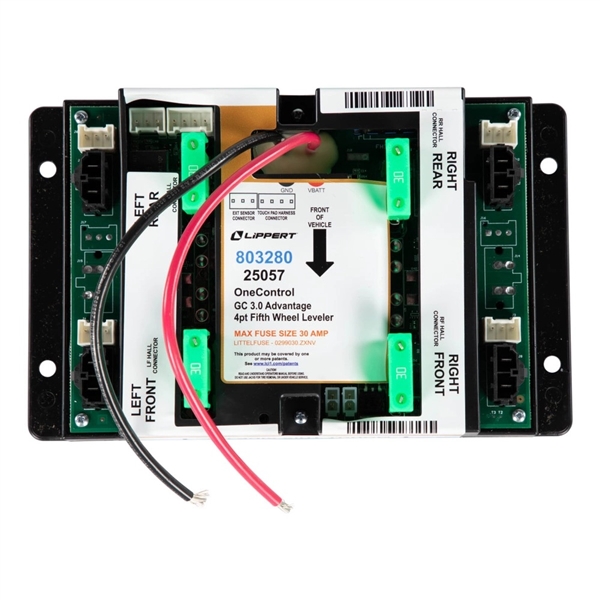

The factory-matched control module assembly for the Ground Control 3.0 Advantage automatic electric leveling system on 4-point fifth wheel RVs. This is the correct replacement when your existing control module has failed or needs updating -- superseding earlier part numbers 694656 and 304136 in a single drop-in unit that integrates with the OneControl smart RV platform.
Lippert's Ground Control 3.0 Advantage system is one of the most widely installed automatic electric leveling systems on fifth wheel trailers. When the control module assembly fails -- whether from a wiring fault, moisture intrusion, or component wear -- the 803280 is the OEM-correct replacement that restores full automatic leveling function without re-engineering your existing setup.
This assembly consolidates the functions previously handled by part numbers 694656 and 304136, so you are ordering the current production unit rather than a legacy part that may be discontinued or back-ordered.
Works within the Lippert OneControl smart RV ecosystem for app-based leveling control and system monitoring.
Manages all four electric jacks simultaneously for one-touch automatic leveling on fifth wheel applications.
Direct replacement for both earlier control module part numbers -- one current part number covers both legacy units.
Genuine Lippert part built to the same specification as the factory-installed unit on Ground Control 3.0 Advantage systems.
Ground Control 3.0 Advantage is Lippert's electric automatic leveling system designed specifically for fifth wheel trailers with four-jack configurations. Unlike hydraulic systems, it uses electric landing gear motors at each corner controlled by a central module. The system reads sensor data, drives each jack independently, and stops when the coach reaches a level position -- typically in under two minutes from a flat surface.
The "Advantage" designation includes enhanced OneControl connectivity, allowing the leveling sequence to be triggered from the Lippert OneControl app on a smartphone or tablet, in addition to the hard-wired interior control panel.
This assembly is the correct order if your fifth wheel's Ground Control 3.0 Advantage system shows any of the following symptoms:
Lippert part 803280 is the current production replacement for both 694656 and 304136. If you are cross-referencing from a parts list or service manual that shows either of those older numbers, 803280 is the unit to order. There is no intermediate part between those legacy numbers and this one.
OneControl is Lippert's CAN-bus-based smart RV control network. Components including slides, awnings, lighting, and leveling communicate over a shared bus rather than individual wiring runs. This module speaks the OneControl protocol natively -- no additional gateway or adapter is needed to restore app-based leveling control after installation.
Ground Control 3.0 Advantage is a specific generation of Lippert leveling system. Earlier Ground Control TT, Ground Control 2.0, and non-Advantage 3.0 systems use different control modules and are not compatible with this assembly. Check your existing module's part number or your coach's build sheet before ordering. If your existing module shows 694656 or 304136, this is the correct replacement.
If the control module tests good but the system still malfunctions, consider inspecting the level sensor, jack motor assemblies, and the OneControl touchpad or keypad before condemning the module. Lippert's dealer network and the OneControl app diagnostics screen can help isolate the fault to a specific component.
