Replace a worn right-side electric trailer brake with the Lippert 2024028247 forward self-adjusting brake assembly. This 10" x 2-1/4" assembly fits compatible 4,400-lb axles with a 4-bolt brake flange.

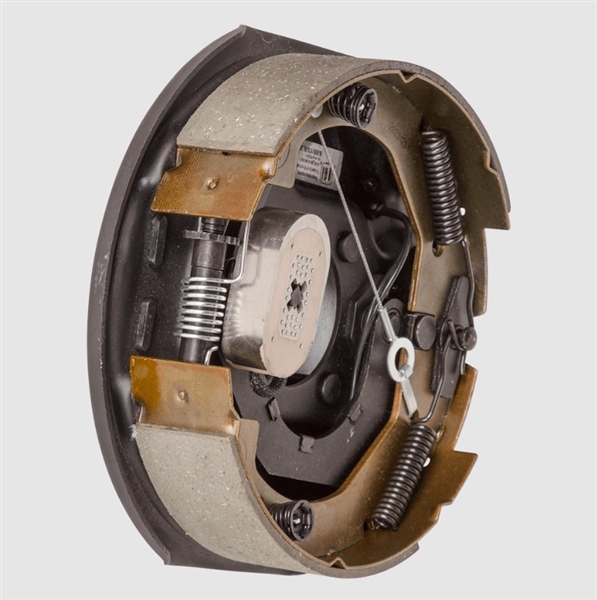

The Lippert 2024028247 Forward Self-Adjusting Electric Trailer Brake Assembly is a genuine replacement brake assembly for compatible trailer, RV, and utility trailer axles. It is designed for the right-hand, passenger-side position on compatible 4,400-lb axle applications.
This 10" x 2-1/4" electric brake assembly uses a 4-bolt mounting pattern and self-adjusts during forward braking to help maintain proper shoe-to-drum clearance. The assembly includes the backing plate, shoes, magnet, and internal brake components preassembled for service replacement.
Designed for the passenger-side brake position
Forward self-adjusting design helps maintain brake clearance
Built for compatible 4,400-lb trailer axle applications
Fits compatible 4-bolt brake flange setups
Designed for the right-hand/passenger-side position on compatible 4,400-lb axles using 10" x 2-1/4" electric brakes and a 4-bolt brake flange. Confirm axle rating, brake size, side, drum compatibility, mounting pattern, and existing brake label before ordering.
1. Confirm Fit: Verify axle rating, brake size, brake side, drum size, and 4-bolt mounting pattern before installation. 2. Remove Old Assembly: Safely lift and support the trailer, remove the wheel and drum, disconnect brake wiring, and remove the worn brake assembly. 3. Install New Brake: Mount the right-side brake assembly to the brake flange using compatible mounting hardware. 4. Connect Wiring: Connect the electric brake leads according to trailer brake wiring requirements and protect connections from road debris and moisture. 5. Test Brakes: Reinstall the drum and wheel, torque hardware to specification, adjust/test as required, and verify brake operation before travel.
One Lippert 2024028247 right-side forward self-adjusting electric trailer brake assembly
Lippert Customer Support: Phone: 432-LIPPERT (432-547-7378) Website: lippert.com For fitment help, confirm the axle capacity, brake size, side, mounting pattern, brake drum compatibility, and original equipment brake label before ordering.
