VMSPC20 Complete Engine Monitoring, Pigtail Only
Silverleaf VMSPC20 Complete Engine Monitoring, Pigtail Only
Silverleaf Complete Engine Monitoring, Pigtail Only

Alternative Views:

Price: $342.95
MFG: Silverleaf

Quantity in Stock :

Availability: Out of Stock
Product Code: VMSPC20
No Longer Available

Description Instructions
The Silverleaf VMSPC20 Pigtail is part of an intelligent data translator that links your USB port to the engine diagnostic connector on your rig, making it possible to use a laptop to monitor your engine. It allows you to read performance and diagnostic information with the special software right on your laptop.
  • Receive complete diagnostics, trip information, and a graphing system that lets you display up to five parameters at once.
  • Store engine data in a file and load it into a spreadsheet.

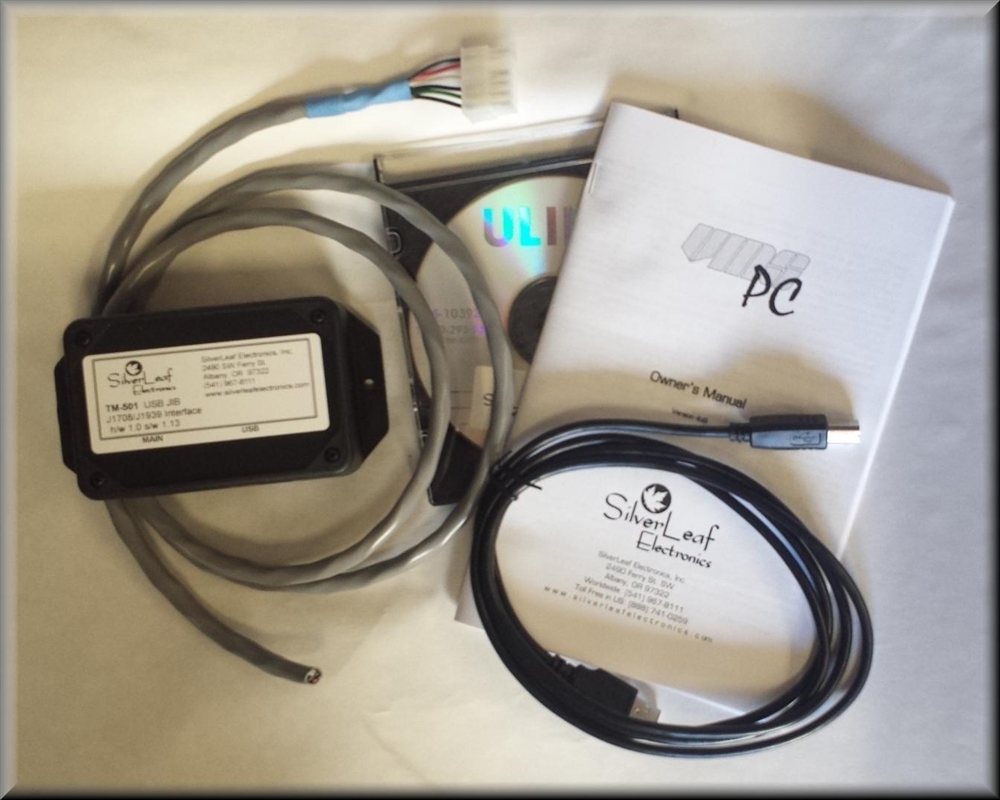

  • Includes VMSpc JIB, 6 ft USB cable, 5 ft engine diagnostic harness with JIB connection to open wires, software CD, and owner's manual.
    • Note: JS550/WiFi is only available through the manufacturer.
  • Weight: 3 lbs.
  • 1-Year Manufacturer Warranty.

Silverleaf Complete Engine Monitoring, Pigtail Only

Additional Product Information
The "standard" Diagnostic Plugs are a Round Deutsch plug with 6 or 9 Pin Positions. There are Diagnostic Connectors in the Engine Compartment and "upfront" near the Steering Column generally with a protective cap. The Round Deutsch plugs were chosen at the time the Electronic Engine Standard was developed, so you will always have one of these Plugs when you have an Electronic Diesel Engine. Not all of the Positions will have Terminals (the Metal Contacts). Typically, the 6 Pin Plugs have 4 Terminals, the 9 Pin Plugs have 4 Terminals and with later coaches, they have 7 Terminals.

The Silverleaf VMSpc lets you program audible alarms based on any engine parameter. For example, you can set it to play any WAV file (grab a microphone and record your own!) when your road speed reaches a certain point. Have it played once, once a minute, or continuously.

And you can create a "Tank Minder", which provides a miles-to-empty calculation based on your tank size and fuel economy. VMSpc lets you enter correction factors to compensate for a poorly calibrated engine. You can even program gauges to read in metric if you desire.

Professional engineers use the Silverleaf VMS pc software to test their vehicle designs. Now you can use the same tools to test your coach.

Feel free to download the VMSpc software - it's free. In fact, SilverLeaf Electronics is committed to providing the VMSpc software and all updates absolutely free on our website. We welcome your input and encourage you to tell us what you'd like to see in future versions of VMSpc.

System Requirements

-Windows 95, 98, ME, 2000, XP, Vista, or 7. Windows 95 users require a special version.
-Pentium 120 or better CPU
-16 MB RAM, Hard Drive
-USB Port
