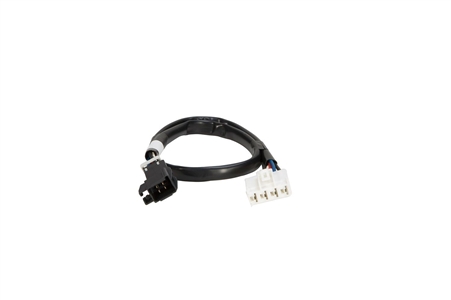

Hayes 81782-HBC Quik-Connect Harness-Dodge/Chrysler 1996-Current

Hayes Quik-Connect Harness-Dodge/Chrysler 1996-Current
Hayes 81782-HBC Quik-Connect Harness-Dodge/Chrysler 1996-Current



: $15.10
MFG P/N: 81782-HBC
MFG: Hayes
UPC #: 858891001084
Weight (lbs): 0.3
Shipping: Free Shipping on Orders $99 or More!

Quantity in Stock       :58

Availability:
In Stock
Product Code: 96-8548
Qty:

Description

  • Hayes Quik-Connect compatible.
  • Simple plug in reducing installation time.
  • No splicing, cutting or tools required.
  • Dimensions: 4.25" length, 1.75" width, 8" height.
  • Connects to Dodge/Chrysler 1996-Current (Fitting Chart Below).
  • Limited 90 day warranty.
  • Made in USA.

81782-HBC Quik-Connect Wiring Harness by Hayes

The Hayes Quik-Connect Wiring Harness - Dodge/Chrysler 1996-Current gives you an easy way to install a braking system on your vehicle by simply plugging the adapter plug into the connector under the dash and then to the brake controller. This plug in adapter will help you to make your life on the road better and safer by easily hooking up your Hayes brake system and giving you the extra braking you need, when stopping your tow vehicle.

Easy Plug In Installation

This wiring harness for the Dodge/Chrysler 1996-Current is made to be a simple do it yourself design. The simple plug in installation allows you to take it with you whenever it is not in use or if you need to transfer it to a new vehicle.

Connector Location On Your Vehicle

The BP2 position on the fitting chart is for where the connector is located in your vehicle. On the Dodge/Chrysler 1996-Current models, it is located under or behind the dash to the left of the steering column and brake pedal.

Technical Specs.

Plug in type: snap in.
Plug style: 2 plug.
Compatibility: Quik-Connect.
Length: 4.25".
Width: 1.75".
Height: 8".

Fitting Chart

Make/Model

Year

Position

Part No.

Chrysler

Aspen w/factory tow package

07 – 09

BP2

81782-HBC

Dodge

Dakota Pickup w/factory tow package

97 – 10

BP2

81782-HBC

Durango w/factory tow package

98 – 09

BP2

81782-HBC

Pickup, Ram Full Size 1500 only, all models

95 – 09

BP2

81782-HBC

Pickup, Ram Full Size 2500 only, all models

95 – 09

BP2

81782-HBC

Pickup, Ram Full Size 3500 only, all models

95 – 09

BP2

81782-HBC
