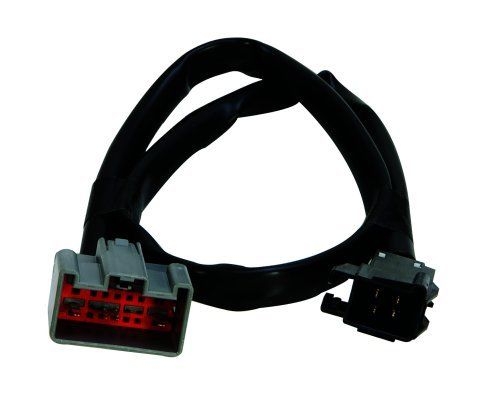

Hayes 81788-HBC Quik-Connect Wiring Harness, Ford 2008-Current

Hayes Quik-Connect Wiring Harness, Ford 2008-Current
Hayes 81788-HBC Quik-Connect Wiring Harness, Ford 2008-Current



: $21.61
MFG P/N: 81788-HBC
MFG: Hayes
UPC #: 858891001237
Weight (lbs): 0.3
Shipping: Free Shipping on Orders $99 or More!

Quantity in Stock       :43

Availability:
In Stock
Product Code: 96-8659
Qty:

Description

  • Hayes Quik-Connect compatible.
  • Simple plug in reducing installation time.
  • No splicing, cutting or tools required.
  • Dimensions: 4.25" length, 1.75" width, 8" height.
  • Connects to Ford 2008-Current (Fitting Chart Below).
  • Limited 90 day warranty.
  • Made in USA.

81788-HBC Quik-Connect Wiring Harness by Hayes

This wiring harness for the Ford 2008-Current is made to be a simple do it yourself design. This plug in adapter will help you to make your life on the road better and safer by easily hooking up your Hayes brake system and giving you the extra braking you need, when stopping your tow vehicle.

Snap In Adapter For Your Brake System

The Hayes Quik-Connect Wiring Harness - Ford 2008-Current gives you an easy way to install a braking system on your vehicle by simply plugging the adapter plug into the connector under the dash and then to the brake controller. The simple plug in installation allows you to take it with you whenever it is not in use or if you need to transfer it to a new vehicle.

Location Of The Connector

The position on the fitting chart is for where the connector is located in your vehicle. On the Ford 2008-Current models, the BP3 is located under or behind the dash to the right of the steering column and brake pedal and BP7 is centered behind the dash between the steering column and the radio. Check the chart to find where yours is.

Technical Specs.

Plug in type: snap in.
Plug style: 2 plug.
Compatibility: Quik-Connect.
Length: 4.25".
Width: 1.75".
Height: 8".

Fitting Chart

Make/Model

Year

Position

Part No.

Ford

Econoline Van Full Size

09 – 14

BP7

81788-HBC

F-250 Super Duty

08 – 14

BP3

81788-HBC

F-350 Super Duty

08 – 14

BP3

81788-HBC

F-350 Super Duty Cab & Chassis

08 – 14

BP3

81788-HBC

F-450 Super Duty

08 – 14

BP3

81788-HBC

F-450 Super Duty Cab & Chassis

08 – 14

BP3

81788-HBC

F-550 Super Duty Cab & Chassis

08 – 14

BP3

81788-HBC
