Plug-and-play wiring harness that connects a Redarc Tow-Pro Elite or Tow-Pro Liberty electric brake controller into a vehicle's existing Tekonsha brake controller harness, with no need to remove the factory wiring.

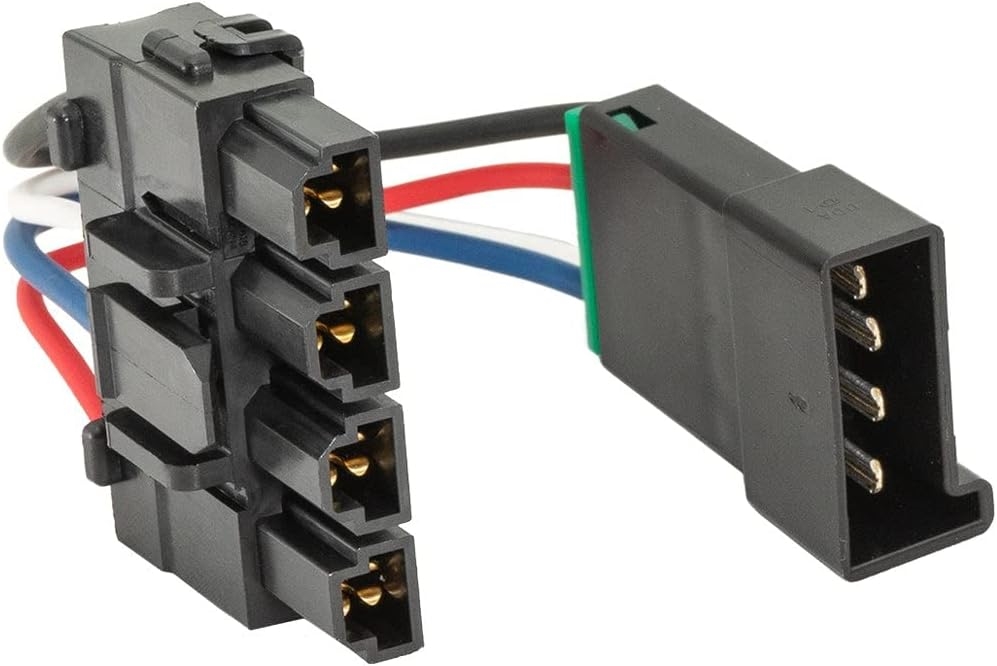

The Redarc TPH-017 is a wiring loom that lets a Tow-Pro Elite or Tow-Pro Liberty electric brake controller plug directly into a vehicle's existing Tekonsha brake controller harness, without pulling or replacing the factory wiring behind the dash. One end of the harness plugs into the Tow-Pro controller's connector, and the other end plugs into the vehicle's factory-fitted Tekonsha-style connector, for a clean, plug-and-play install. The harness includes fitting instructions and the loom with its mating connector.
Confirm the vehicle already has a Tekonsha-style brake controller harness behind the dash before ordering. For vehicles without an existing factory harness, a vehicle-specific Tow-Pro harness or the Universal Pigtail (TPH-025) may be the better fit instead.
• (1) TPH-017 wiring loom with mating connector • Fitting instructions
