Vehicle-specific wiring harness that connects a Redarc Tow-Pro Elite or Tow-Pro Classic electric brake controller directly into the factory tow package connector on RAM trucks.

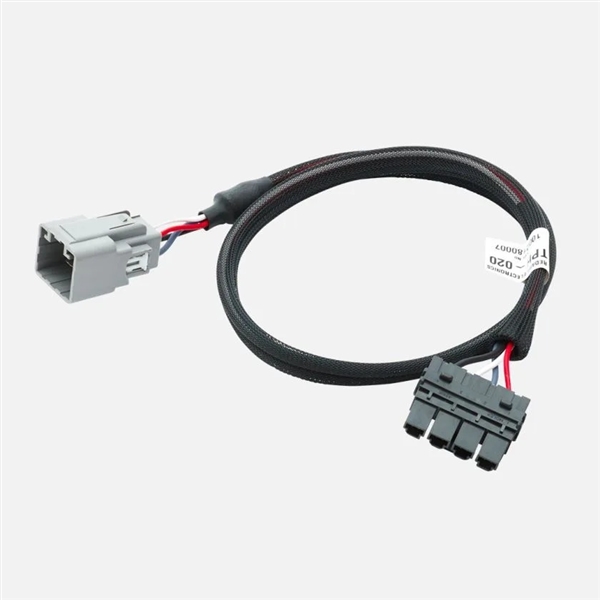

The Redarc TPH-020 is a vehicle-specific wiring harness that connects a Tow-Pro Elite or Tow-Pro Classic electric brake controller directly into the factory-fitted tow package connector behind the dash of RAM trucks, including RAM 1500, 2500, 3500, and 4500 models. One end of the harness plugs into the Tow-Pro controller, and the other plugs into the vehicle's existing factory connector, so there's no need to cut, splice, or hardwire into the vehicle's wiring for the Elite controller. The harness includes fitting instructions and the loom with its compatible connector.
This harness is fully plug-and-play with the Tow-Pro Elite. It will also connect to the Tow-Pro Classic, but the Classic controller does not have a mating connector, so bare wires will need to be spliced into the controller rather than simply plugged in.
This harness requires the vehicle to already have a factory-fitted tow package connector behind the dash. Confirm your specific RAM model and model year against current compatibility before ordering, as harness configurations can vary across RAM model years.
• (1) TPH-020 wiring loom with mating connector • Fitting instructions
