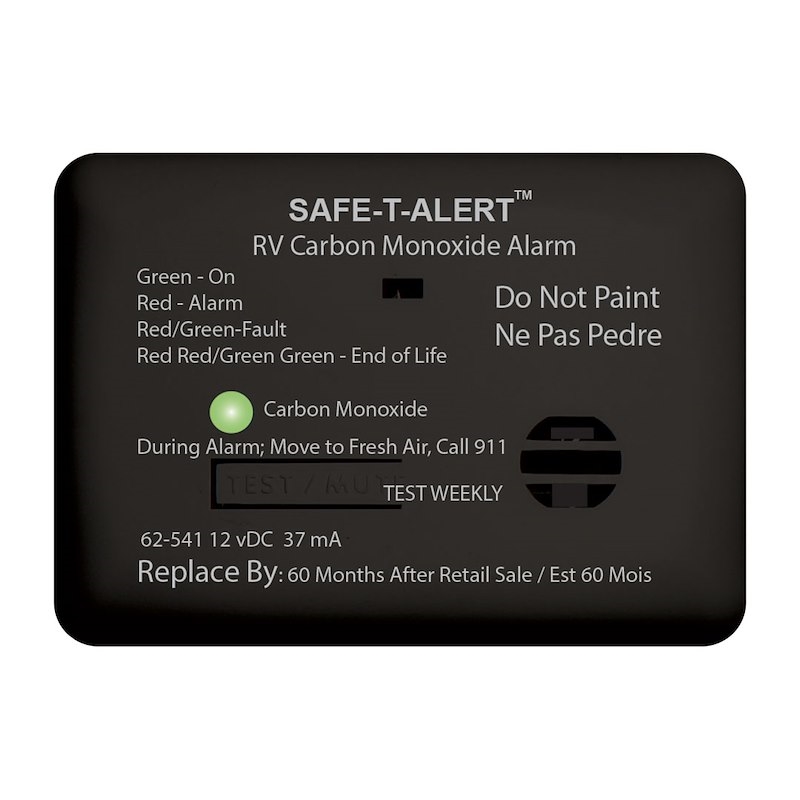

Safe-T-Alert 62-541-BL 12V Carbon Monoxide Alarm (Black) - Surface Mount

The Safe-T-Alert 62-541-BL is a 12V hard-wired, surface-mount carbon monoxide (CO) alarm designed specifically for RVs, trailers, and motorhomes. It’s the current-generation replacement for the popular 65-541 series, with low current draw, Test/Silence button, and end-of-life notification so you know when to replace it. Made in the USA.

Dimensions & electrical

• Overall (faceplate): 3.5" width x 2.5" height x 1.25" depth.
• Cutout: Not required (surface mount)
• Operating voltage: 12V DC
• Current draw: typically < 100 mA (idle very low; brief peaks during alarm/self-test)
• Operating temp (typical RV electronics): ~32°F to 104°F (0°C to 40°C)

What it does

• CO protection: Continuously monitors for dangerous CO from furnaces, generators, and appliances.
• Test/Silence: Verifies operation; temporarily quiets nuisance alarms while the sensor re-evaluates air.
• End-of-Life (EOL) alert: Chirp/indicator when the sensor module has reached its service life.
• Low current draw: Designed for RV 12V systems; minimal battery impact while boondocking.
• RV-rated design: Vibration/temperature-tolerant construction for mobile use.

Technical details

• Alarm type: Carbon Monoxide (CO) only
• Sensor: Electrochemical CO sensor, RV-calibrated
• Audible output: 85 dB class piezo horn (at 10 ft, typical)
• Indicators: Power/Status LED; alarm patterns for CO, fault, and EOL
• Service life: ~5–7 years typical (replace at EOL alert or per label date)
• Regulatory: Meets RV industry CO alarm requirements; lead-free/RoHS style build
• Wiring: Two-wire +12V/ground (no relay contacts)

Compatibility & replacement

• Direct update for: Safe-T-Alert 65-541 series CO alarms (check color/footprint).
• Use in: Motorhomes, travel trailers, fifth wheels, truck campers, toy haulers.
• Mounting footprint: Matches common Safe-T-Alert surface-mount CO openings; verify screw spacing before install.

Installation notes

1. Disconnect 12V power. Remove the old alarm (note polarity).
2. Mount the 62-541-BL at breathing height per MTI guidance—not in dead-air corners, near ceiling fans, or right next to appliances.
3. Connect +12V and Ground; restore power and press TEST to verify horn/LEDs.
4. Label your replacement date; replace the unit at EOL alert or per the printed date.

What’s in the box

• Safe-T-Alert 62-541-BL CO alarm (black)
• Mounting screws
• Owner’s/installation instructions

Warranty & support

• Manufacturer limited warranty (see insert for terms)
• RVupgrades phone, chat, email & text support
