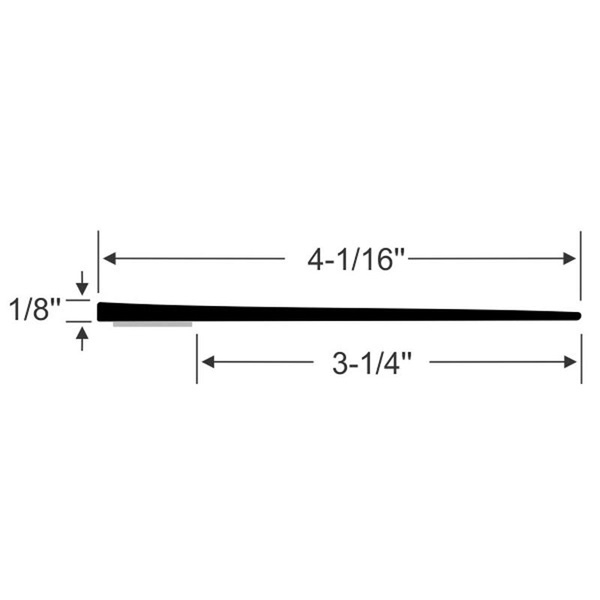

Dense EPDM rubber flat blade wiper seal with pre-applied 3M Peel-N-Stick adhesive. 1/8" H x 4-1/16" W ā 60 ft roll. Ideal for toy hauler slide-outs including the Starcraft Aruba. Base part 70-3899-265.
The Steele Rubber Products 90-3413-265 is a 4-1/16" Flat Blade Wiper Seal with pre-applied 3M Peel-N-Stick adhesive backing ā a wide, flexible wiper weatherstrip used on RV slide-outs to form a dynamic seal that keeps moisture, insects, and debris out of the coach. The flat blade design flexes inward or outward in response to slide-out movement, maintaining consistent wiping contact against the slide-out surface during both extension and retraction.
Made from high-quality dense EPDM rubber with superior wear and weather resistance, this seal will not fade, shrink, or crack through years of outdoor RV use. The 4-1/16" width provides broad coverage across the slide-out opening, making it particularly well-suited to the wider frames found on toy haulers. The pre-applied 3M adhesive backing delivers a strong, long-lasting bond ā simply peel the backing and press the seal firmly into place along the RV frame surrounding the slide-out.
Ideal for slide-outs on toy haulers, including the Starcraft Aruba. This wiper seal is designed to work in conjunction with a companion bulb seal, which is sold separately. The 60-foot roll provides generous coverage for a full slide-out perimeter, multiple sides, or a complete replacement across a large coach.
Wide flat blade provides broad coverage across the slide-out opening ā ideal for the larger frames common on toy haulers
Blade flexes in or out with slide movement, maintaining consistent wiping contact during both extension and retraction
Premium 3M adhesive backing is pre-applied at the factory ā peel, press, and bond directly to the RV frame
High-quality dense rubber construction ā superior wear and weather resistance, will not fade, shrink, or crack
This wiper seal is designed to work in conjunction with a companion bulb seal, sold separately. The wiper alone does not provide a complete slide-out seal system ā the bulb seal compresses against the RV body when the slide-out is closed. Confirm that you have or are ordering the correct companion bulb seal for your application before purchasing this wiper. Installation Temperature: Apply between 60Ā°F and 104Ā°F (15Ā°Cā40Ā°C) for best adhesive bond strength. The temperature difference between the seal and the bonding surface should be as small as possible. Completely remove all old seal material, adhesive residue, dirt, wax, and moisture before applying, and wipe the surface with isopropyl alcohol to ensure a clean, dry bond.
Primary Part Number: 90-3413-265 Base Part Number: 70-3899-265 Available Lengths (Same Profile): ā¢ 15 ft ā Part 90-3411-265 ā¢ 30 ft ā Part 90-3412-265 ā¢ 60 ft ā Part 90-3413-265 (This Item) ā¢ Also available by the foot for custom lengths Note: A companion bulb seal is required for a complete slide-out seal system and is sold separately.
What You Need: No hardware required. Recommended supplies: isopropyl alcohol or adhesive remover, clean cloth, tape measure, scissors or utility knife. Basic Installation Steps: 1. Check Temperature: Confirm ambient temp is between 60Ā°F and 104Ā°F (15Ā°Cā40Ā°C) ā match surface and seal temperature as closely as possible 2. Prep the Surface: Remove all old seal material, adhesive residue, dirt, wax, and moisture completely from the RV frame 3. Clean & Dry: Wipe with isopropyl alcohol and allow to fully dry 4. Measure & Cut: Cut to required length with scissors or a sharp utility knife 5. Peel & Press: Remove the 3M adhesive backing and press the seal firmly onto the frame, working from one end to the other 6. Install Companion Bulb Seal: Complete the system by installing the separately purchased bulb seal 7. Test the Slide: Extend and retract to confirm the blade flexes correctly and the adhesive holds securely
Included: ā¢ One (1) 90-3413-265 Flat Blade Wiper Seal ā¢ 60-foot pre-cut roll ā¢ Pre-applied 3M Peel-N-Stick adhesive backing ā¢ Dense EPDM rubber construction NOT Included: ā¢ Companion bulb seal (sold separately ā required for complete system) ā¢ Isopropyl alcohol or adhesive remover for surface prep ā¢ Clean cloth, tape measure, scissors or utility knife
All three lengths share the same flat blade profile, dense EPDM rubber construction, and pre-applied 3M adhesive. Also available by the foot for custom lengths. Order the length that best matches your project to minimize waste.
