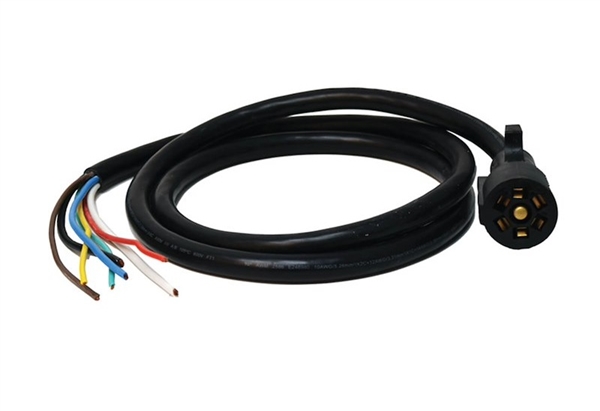

Trailer-end 7-way RV blade connector cord for manufacturing or repairing trailer wiring. Molded 7-way plug on one end, bare wire leads on the other for direct hardwiring into the trailer electrical system. Durable molded rubber construction with corrosion-resistant terminals. 10/2, 12/1, 14/4 wire configuration. 6-foot length.
The 7-way RV blade connector is the standard electrical connection between a tow vehicle and a modern trailer â carrying circuits for tail lights, brake lights, turn signals, electric brakes, battery charging, reverse lights, and ground across all seven pins. When a trailer's factory 7-way plug is damaged, corroded, or physically broken, or when building a new trailer wiring harness from scratch, the A10-7W6 provides a reliable, durable replacement cord with the molded plug already built on.
The A10-7W6 is a trailer-end cord â the molded 7-way RV blade plug connects to the tow vehicle's 7-way socket, while the opposite end of the 6-foot cord terminates in bare wire leads that are hardwired directly into the trailer's electrical circuits. This design makes it ideal both for replacing a damaged factory trailer plug and for new wiring installations on trailers being built or rewired. The molded rubber construction protects the connector internals from moisture and debris, and corrosion-resistant terminals maintain reliable electrical contact over years of outdoor use.
Factory-molded 7-way RV blade connector on one end â connects to any standard 7-way RV socket on the tow vehicle
Seven bare wire leads on the opposite end connect directly into the trailer's electrical circuits â for new installation or replacement of a damaged plug
Durable molded rubber body and corrosion-resistant terminals withstand outdoor exposure, moisture, and the elements at trailer connections
6 feet of cord provides adequate reach for most standard trailer tongue lengths â also available in 8-foot (A10-7W8) and 10-foot (A10-7W10) versions
The RV-style 7-way blade connector carries seven circuits between the tow vehicle and trailer. Standard pin assignments and typical wire colors on the A10-7W6: Pin 1 â Ground: White wire â common ground for all trailer electrical circuits Pin 2 â Electric Brakes: Blue wire â powers the trailer's electric brake controller signal Pin 3 â Running/Tail Lights: Brown wire â trailer running lights and tail lights Pin 4 â Left Turn / Brake: Yellow wire â left turn signal and brake light Pin 5 â Right Turn / Brake: Green wire â right turn signal and brake light Pin 6 â Auxiliary / Battery Charge: Black wire â 12V power for charging the trailer's battery and powering breakaway switch Pin 7 â Reverse Lights / Backup: Purple wire â reverse/backup light circuit Wire colors may vary slightly by manufacturer. Always verify circuit assignments with a test light or multimeter before finalizing connections.
The A10-7W6 is a trailer-end connector â the molded 7-way plug connects to the tow vehicle's 7-way socket, and the bare wire leads hardwire into the trailer's electrical system. It does not connect to the tow vehicle's wiring harness directly. If you need a tow vehicle-side 7-way connector (the socket that mounts on the truck bumper or hitch), see the Valterra A10-7082VP or similar vehicle-end connector. Length selection: 6 feet is appropriate for most standard bumper-pull trailers with a normal-length tongue. For 5th wheel or gooseneck trailers with a longer run from the trailer's electrical junction to the pigtail end, or for trailers with longer tongues, consider the A10-7W8 (8 foot) or A10-7W10 (10 foot). Wire configuration note: The A10-7W6 uses a 10/2, 12/1, 14/4 wire gauge configuration â the heavier gauge wires (10 AWG) carry the higher-current circuits (battery charging/auxiliary and electric brakes), while the lighter gauges serve the lower-current lighting circuits.
Replacing a Damaged Trailer Plug or Wiring New: 1. Disconnect Trailer: Ensure the trailer is disconnected from the tow vehicle and the battery is disconnected before beginning any wiring work 2. Remove Old Plug (If Replacing): Cut the old plug from the harness, leaving enough wire to identify each circuit. Note or photograph the existing wire color assignments before cutting 3. Strip and Match Leads: Strip the bare wire leads on the new A10-7W6 cord and match each lead to the corresponding circuit in the trailer's harness â use the standard wire color assignments (white=ground, blue=brakes, etc.) and verify with a test light 4. Connect and Secure: Connect each lead using appropriate connectors (heat-shrink butt connectors recommended for outdoor durability) â avoid crimping bare wires together without proper connectors 5. Route and Secure Cord: Route the cord along the trailer tongue and secure with wire clips or cable ties â avoid routing near hot exhaust or moving parts 6. Test All Circuits: Reconnect the battery, connect to the tow vehicle, and test all seven circuits before towing Always verify circuit assignments with a test light or multimeter before finalizing connections.
In The Package: âĸ (1) A10-7W6 7-Way Trailer Cord â 6 Feet âĸ Molded 7-Way RV Blade Plug (Trailer End) âĸ 7 Bare Wire Leads (Hardwire End) NOT Included: âĸ Wire connectors or terminals (butt connectors, heat shrink, etc. â purchase separately) âĸ Mounting hardware for routing the cord along the trailer tongue Other Lengths Available: âĸ A10-7W8 â 8-Foot Trailer Cord âĸ A10-7W10 â 10-Foot Trailer Cord
Valterra Products: Website: valterra.com Since 1981, Valterra Products has been a leading supplier of RV, plumbing, and pool/spa accessories to the recreation industry.
All three versions share the same molded 7-way RV blade connector, bare wire leads, wire configuration, and construction quality. Select based on the length needed for your trailer.
