High-output 60A 12V smart battery charger for RV, marine, work truck, coach, and specialty vehicle applications. Supports flooded, gel, AGM, LFP/lithium, and custom battery profiles with automatic multistage charging, universal AC input, and three battery bank outputs.

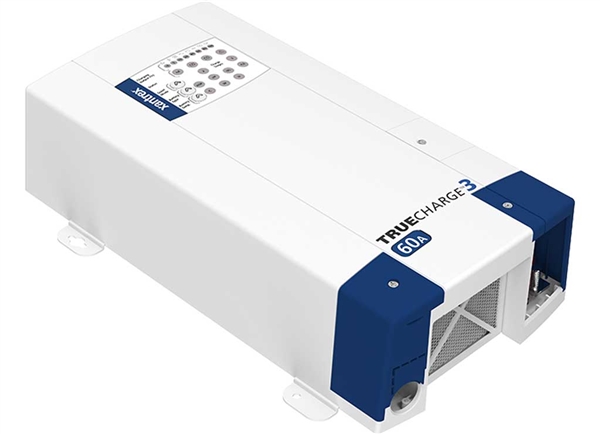

The Xantrex 804-1260-10 TRUEcharge3 is a 60 amp, 12 volt smart battery charger designed for larger RV, marine, commercial vehicle, and specialty vehicle battery systems. It provides high-output shore power charging for 12V battery banks using automatic multistage charging and selectable battery profiles.
The TRUEcharge3 60A model accepts a wide AC input range and is compatible with shore power, generator power, and varied AC power environments. It includes three DC output connections for multi-bank charging, making it useful for larger 12V systems that need more charging current than the 20A or 40A TRUEcharge3 models.
Provides high-output 60 amp charging for compatible 12V RV and marine battery systems
Three DC output connections support compatible multi-bank 12V charging setups
Accepts 90–265VAC, 47–63Hz input for shore power, generator, and global power compatibility
Supports flooded, gel, AGM, LFP/lithium iron phosphate, and custom charge profiles
The TRUEcharge3 60A charger is ideal for larger 12V RV, marine, heavy-duty truck, coach, bus, work truck, and specialty vehicle battery systems that need faster charging from shore power or generator power. This is the highest-output 12V model in the TRUEcharge3 12V lineup and is best suited for larger battery banks where a 20A or 40A charger would be undersized.
• One Xantrex 804-1260-10 TRUEcharge3 60A 12V battery charger • Product notice • Rubber boots for DC terminals • Nuts and washers for DC terminals and ground stud • AC input strain relief clamp • Crimp connectors for AC wiring
The optional Xantrex 808-8040-10 TRUEcharge3 Remote Panel can be used for remote monitoring and control. The remote panel also enables parallel operation when combining two TRUEcharge3 chargers for higher charging output. The optional Xantrex 808-0232-01 Battery Temperature Sensor can provide battery temperature protection and voltage compensation features when installed with compatible battery systems.
Xantrex 804-1260-10 is the TRUEcharge3 60A / 12V model. It is not a 24V charger and is not 12V/24V selectable. For 24V battery systems, use the correct TRUEcharge3 24V model instead. Do not mix battery chemistries on this charger. Confirm battery type, bank size, AC wiring, DC cable sizing, fuse/circuit protection, and charger settings before installation.
The Xantrex 804-1260-10 is the 60A / 12V TRUEcharge3 model. For 24V systems, select the appropriate TRUEcharge3 24V charger instead.
