As an RV technician with over a decade spent installing and repairing leveling systems for all types of rigs, I’ve seen firsthand how proper leveling can transform your camping experience.
There’s nothing quite like pulling into a scenic spot, setting up camp quickly, and having your RV perfectly balanced without hours of fiddling. But with so many leveling options out there—automatic, manual, hydraulic, electric—it’s easy to get overwhelmed.
In this post, I’ll walk you through the best RV leveling systems available today, comparing automatic and manual solutions so you can decide what’s best for your rig. I’ll touch on ease of use, precision, durability, and of course, value. Since leveling is crucial not only for comfort but also for protecting your RV’s structure and appliances, making an informed choice is key.
I also like to share bits of what I’ve learned on the road and in the shop. You might find a tip or two that saves you some frustration at your next campsite. So whether you’re a weekend warrior or a full-timer, this guide aims to help you roll out smoother and level up faster.
When it comes to heavy-duty hydraulic jacks, the EQ Systems 8107UPS AM Series stands out as a reliable workhorse. This single-leg hydraulic jack boasts a lifting capacity of 4,000 lbs, designed to handle the heavier end of RVs, including class A motorhomes, toy haulers, and some larger fifth wheels.
The hydraulic pump works on a smooth, positive displacement principle, which means each pump stroke raises the jack predictably. You get precise incremental control—ideal when leveling uneven terrain where half-inch adjustments matter. The maximum lift height is approximately 20 inches, providing ample range to compensate for most off-level campsites.
What sets this jack apart is its rugged construction and longevity. The leg is fabricated from solid steel tubing with a powder-coated black finish that resists rust in rainy or snowy environments. The base foot plate is wide and reinforced to prevent sinking into soft soil, a common problem with smaller jacks.
From my installation experience, when mounted on a reinforced welded bracket on the frame, this jack transmits weight directly and reduces stress on your RV chassis. Unlike smaller jacks designed only for temporary stabilization, the 8107UPS is intended for continuous support while parked, which is why it’s a favorite for serious full-timers.
One memorable job involved a 38-foot class A coach with a notoriously uneven front-end suspension setup. Using the EQ Systems jack, we were able to raise and level the front of the RV in under 12 minutes. This saved the client hours they previously spent trying to position blocks just right. Over multiple seasons, this setup proved durable and required minimal maintenance besides periodic hydraulic fluid checks.
Installation requires mechanical skill: mounting the jack with provided brackets, routing a hydraulic line to a foot pump (often located near the entry steps or in a storage bay), and filling the system with specified hydraulic fluid. The foot pump includes an integrated bleed valve to remove trapped air, which is essential for proper operation.
One downside to mention is that, being a single-leg system, the jack provides excellent support at one point but may need supplementary stabilizers or blocks for full multi-point leveling. However, for those prioritizing heavy load support and hydraulic smoothness, the EQ Systems 8107UPS is a dependable, cost-effective choice.
Buy EQ Systems 8107UPS AM Series Single Leg Hydraulic Jack
The BAL Light Trailer Tire Leveler targets owners of smaller trailers and lightweight campers who desire a compact, simple solution for minor leveling needs. Its design slides under the tire on the downhill side, lifting and stabilizing with just a quick placement underneath.
The leveler is molded from a UV-stabilized polymer material designed to withstand exposure to sun, rain, and freeze-thaw cycles without cracking or deforming. The surface texture is non-slip both on the ground and where the tire contacts, helping prevent unintentional movement.
Portability is a strong selling point here—the entire unit weighs only about two pounds and measures roughly 12 inches long, so it fits neatly in your toolbox or storage compartment. This makes it a handy backup or last-minute gear for uneven spots or overnight stays where traditional multi-point leveling is unnecessary.
While the manual nature of this product means it won't compensate for more than a few inches of tilt, it excels at rapid and repeatable fine-tuning. During a trip along rocky or mountainous routes, I’ve used this tire leveler myself to quickly smooth out a small side-to-side lean caused by uneven parking lot pavement. It took only seconds and saved me the hassle of lugging heavy leveling blocks.
The BAL light leveler fits tires up to 15-inch diameter and supports RV weights typically up to 3,000-3,500 lbs per tire, aligning with many small trailers and pop-up campers.
Buy BAL Light Trailer Tire Leveler
Leveling blocks remain the classic DIY solution for RV stabilization and come with vast customization options. The Tri-Lynx 000 Interlocking Levelers elevate this concept with quality and convenience in mind.
Each block in the 4-pack is made from high-density polyethylene (HDPE), widely recognized for its strength, durability, and weather resistance. The black plastic resists UV degradation and remains dimensionally stable across wide temperature swings.
The unique interlocking design incorporates dovetail-like connections, which means when stacked, the blocks lock firmly together. This interlock reduces the tendency of stacks to slip or slide under lateral forces—especially important on sloped or soft soil.
The foot surface features a textured, non-slip finish, and the blocks have a hollow, yet reinforced internal design, offering lightweight portability without sacrificing strength. These blocks can safely support weights of up to 10,000 lbs per set (when stacked properly), sufficient for most travel trailers and fifth wheels.
A standout feature is the modularity—each block is about 3 inches tall and approximately 8 inches square. Need two inches? Use less blocks; need a foot? Stack four blocks high. This versatility lets you respond precisely to site conditions without guesswork.
In real-world use, I’ve found these blocks invaluable on uneven dirt or grassy pads, where wooden wedges might rot or slip, and broken plastic wedges often crack. The Tri-Lynx blocks also avoid the mess of mud and dirt that wooden blocks acquire, keeping your hands cleaner.
One veteran RV owner told me they kept a set in every rig they owned for over eight years, with zero breaks or failures—a testament to the product’s longevity.
They also handle moisture well, not absorbing water, which prevents rot and reduces weight increase after rain.
Buy Tri-Lynx 000 Interlocking Lynx Levelers

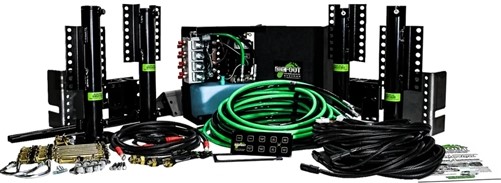

The Bigfoot AKC-8A1 represents top-tier automatic hydraulic leveling technology for motorhomes and large trailers. When ease of use, accuracy, and speed matter most, this system delivers unquestionable convenience.
This system integrates four hydraulic jacks (front and rear, left and right) operated via a central controller with one-touch initiation. After you park and press the button, built-in sensors analyze your rig’s pitch and roll angles, then automatically extend or retract the jacks to achieve a precise, rock-solid level.
The jacks themselves are baffled to resist dirt ingress, and use rugged sealed hydraulic cylinders with stainless steel rods that resist corrosion and pitting. The high-frequency pump motor operates quietly, which makes late-night setups unobtrusive to neighbors.
Installation often involves welding brackets and running hydraulic lines under your RV, plus mounting the pump motor and control module inside. Because the system uses fluid under pressure, all fittings require leak- and vibration-proof sealing to ensure long service life. Owners who have the Bigfoot system installed professionally typically report that the comfort and speed gains are worth the installation time.
One owner of a 42-foot diesel pusher shared how this system changed their life: "I used to dread setting up camp after long drives with tired arms, having to crawl under the coach and crank jacks manually. Since installing Bigfoot, I push a button and walk away. It’s level and stable in under 2 minutes every time."
The control panel is mounted conveniently inside near the driver’s seat, and the system status is displayed in clear LED readouts. If the system detects an issue—like insufficient pressure or a stuck piston—it will notify you to prevent damage.
Bigfoot recommends periodic inspection every 12 months for fluid levels, hose integrity, and electrical connections. They also supply a detailed maintenance manual with troubleshooting tips to keep owners self-sufficient.
Buy Bigfoot AKC-8A1 Automatic Leveling System

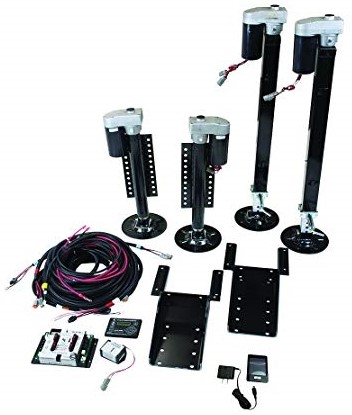

The Lippert Ground Control 3.0 system is a state-of-the-art electric leveling and stabilization solution designed specifically for 5th wheel trailers and larger travel trailers. It replaces the traditional manual jacks with electric actuators powered by your trailer’s onboard battery system.
Ground Control 3.0 features wireless remote control with long-range capabilities and smartphone integration via the Lippert app. This means you can control leveling from inside your rig or even outside, up to several hundred feet away—an immense benefit when setting up in difficult or dark environments.
Unlike hydraulic systems, the electric actuators use motors paired with high-torque gearboxes to extend and retract jacks quickly and quietly. The motors also include built-in thermal protection, preventing overheating during frequent use.
With a load capacity per jack of approximately 7,000 pounds, the system supports most 5th wheels under 40 feet. Importantly, the system offers precise micro-adjustments, making it easy to find an ideally level position without guesswork or block stacking.
A notable feature is the built-in diagnostic system. If a fault occurs—such as a stuck actuator or a blown fuse—the system will display error codes on the remote or app, significantly simplifying troubleshooting.
Installers should have a solid grounding in trailer electrical systems and wiring. The system requires a 12V power supply, a compatible control box, wired connections to each actuator, and in some cases, additional frame brackets or reinforcements.
I recall assisting a client who was hesitant about the installation complexity but decided to hire a professional. Within a few hours, the lippert system was up and running, transforming their setup process from 30 minutes of manual crank work into a graceful 5-minute remote-controlled experience. The client was thrilled.
Buy Lippert 358590 Ground Control 3.0 5th Wheel Electric Leveling System
The Eaz-Lift 24-inch manual scissor jack is a stalwart in the RV accessories toolkit. Its classic mechanical design provides a solid foundation for manual lifting and leveling without relying on power or hydraulics.
This jack supports up to 7,500 lbs, making it appropriate for medium to heavier lightweight trailers and smaller fifth wheels. The cranked gearing mechanism features a 2.8:1 gear ratio, meaning each full turn of the handle raises the jack with mechanical advantage, reducing effort.
The steel frame is powder-coated to resist corrosion and finished with durable black enamel. The base footplate is about 5 inches square, with a pivoting saddle head to ensure good contact on uneven ground.
The 24-inch length refers to the extended height of the jack, while its minimum collapsed height is approximately 10 inches, suitable for common trailer ground clearances.
I have installed and recommended this jack countless times for owners that prefer control and simplicity. One point of feedback is the need for some physical strength and patience during operation—cranking the jack through full extension manually will require arm and shoulder effort, especially under heavy loads. For those with mobility challenges, this may not be the best primary leveling solution but works well as a backup or secondary support.
This jack requires minimal maintenance: keep the screw threads clean and lightly oiled, inspect the handle for wear, and verify that the footplate is solid before use.
Buy Eaz-Lift Leveling Scissor Jack
The BAL Topwind A-Frame Manual Tongue Jack is an economical and efficient tool designed primarily for smaller trailers and campers with A-frame tongues. It’s constructed to provide reliable vertical lifting with a user-friendly topwind crank system.
What separates the Topwind jack from traditional side-crank jacks is its vertical winding shaft, which reduces wrist strain and makes operation faster. The crank handle is ergonomically shaped and collapsible for compact storage.
Constructed from molded steel and finished with a black powder coat, the jack balances durability with manageable weight—typically around 7 pounds. The strong steel tubing resists bending under typical load stresses commonly encountered while hitching or stabilizing the trailer.
The jack’s load rating is roughly 3,000 lbs, suited for trailers up to roughly 6,000 lbs gross trailer weight, depending on tongue weight distribution. The lift height ranges from 10 inches collapsed to about 14 inches extended, sufficient for most smaller utility trailers, teardrop campers, or fishing rigs.
Beyond the mechanical advantages, the powder-coat finish means the jack often lasts many years without rust problems, even in coastal or humid environments.
As a technician, I’ve seen many newer RVers purchase this model as their first tongue jack. It’s simple, tool-free to operate, and easily installed with basic hand tools on existing mounting holes or brackets.
Buy BAL Topwind A-Frame Manual Tongue Jack

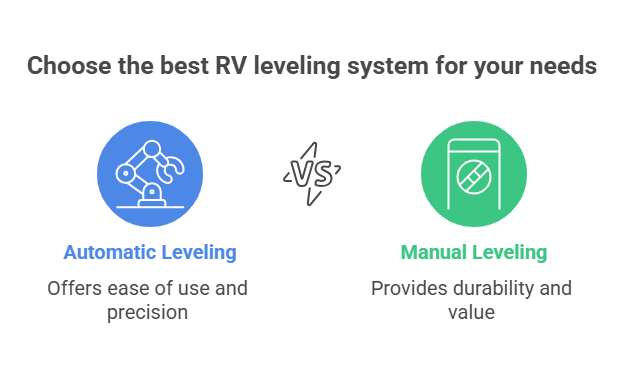

Choosing between automatic and manual RV leveling systems comes down to your personal preferences, budget, and how much time and effort you want to spend setting up camp. Automatic systems like the Bigfoot AKC-8A1 and Lippert Ground Control 3.0 offer unmatched convenience with minimal effort but do come with higher upfront costs, increased installation complexity, and some ongoing maintenance requirements.
On the other hand, manual options such as the Tri-Lynx interlocking levelers, Eaz-Lift scissor jack, and BAL manual tongue jack provide tried-and-true reliability with a lower initial investment, simpler maintenance, and greater hands-on control. For those who enjoy the physical engagement of setting up camp or travel infrequently, these are solid, flexible choices.
I often advise newer RV owners to start with manual methods—both for cost savings and familiarity—and then consider upgrading as their travel frequency increases or if convenience becomes a priority. The EQ Systems 8107UPS offers a solid hybrid choice for those who want hydraulic power limited to a single leg, balancing simplicity with capability.
Remember, a quality leveling system isn’t just about comfort—it’s about protecting your investment. Consistently leveling your RV prevents uneven stresses on the frame, reduces wear on slideouts, avoids appliance malfunctions, and helps keep seals watertight.
Ultimately, a level RV leads to better nights of sleep, safer appliance operation, and less long-term wear and tear on your home away from home. That peace of mind, quite simply, makes the effort—and the investment—well worth it.
Q: How important is leveling my RV?
Leveling ensures stability while parked, prevents damage to appliances like refrigerators which function optimally only when level, and improves overall comfort. An unlevel RV can cause water drainage issues, cabinet door malfunctions, and accelerated wear on tires and suspension components.
Q: What’s the difference between hydraulic and electric leveling systems?
Hydraulic systems use fluid pressure to raise and lower jacks and generally offer powerful, smooth operation suitable for larger RVs. Electric systems employ motors and switches or remotes to extend jacks, offering quieter, often faster adjustment but sometimes with less lifting capacity. Hydraulic systems may require more maintenance and complex installation.
Q: Can I install an automatic leveling system myself?
Installation often requires advanced mechanical and electrical expertise. While some experienced RV owners with solid DIY skills have successfully installed these systems themselves, professional installation is usually recommended to ensure safety, system integrity, and warranty compliance.
Q: Are manual leveling blocks safe?
Yes, if used correctly. Always place blocks on firm, stable ground, ensure stacks are level and interlocked where possible, and use blocks rated for the weight of your rig. Quality interlocking blocks like Tri-Lynx reduce the risk of slippage and provide secure support.
Q: How often should I perform maintenance on my leveling system?
Regular inspection of hydraulic fluid levels, mechanical components, and electrical wiring (if applicable) is recommended—typically before and after each camping season. Manual systems generally require less attention but should still be checked for wear, corrosion, or damage.
Q: What is the typical lifespan of these leveling systems?
With proper care, manual systems can last many years to decades. Automatic systems with hydraulic or electric components may require periodic repairs or part replacement but usually have a long service life if maintained properly.
Q: Can leveling systems be used on all types of RVs?
Most systems are designed and rated for specific RV classes or trailer types. Always check manufacturer specifications to ensure compatibility with your vehicle’s weight and design.
