Dometic FJX5557EHPBKCS FreshJet 5 RV Air Conditioner with Heat Pump, 15,000 BTU, Low Profile, Black
A true drop-in upgrade over the Penguin II -- the FreshJet 5 delivers 15,000 BTU of cooling AND electric heat pump operation down to 40F, all in a 10.5-inch rooftop profile. Built-in hard start, R-32 refrigerant, and a pre-installed Multi-Zone FreshJet control board make this one of the most capable low-profile units available for Class A, Class C, and fifth-wheel applications.
Most RV rooftop units force you to choose: cool in summer, run a furnace in shoulder seasons. The Dometic FreshJet 5 eliminates that tradeoff. Its integrated electric heat pump operates efficiently down to 40F outside, reducing furnace propane consumption during spring and fall travel. When temperatures drop below 40F, your coach furnace picks up where the heat pump leaves off -- no gap in comfort.

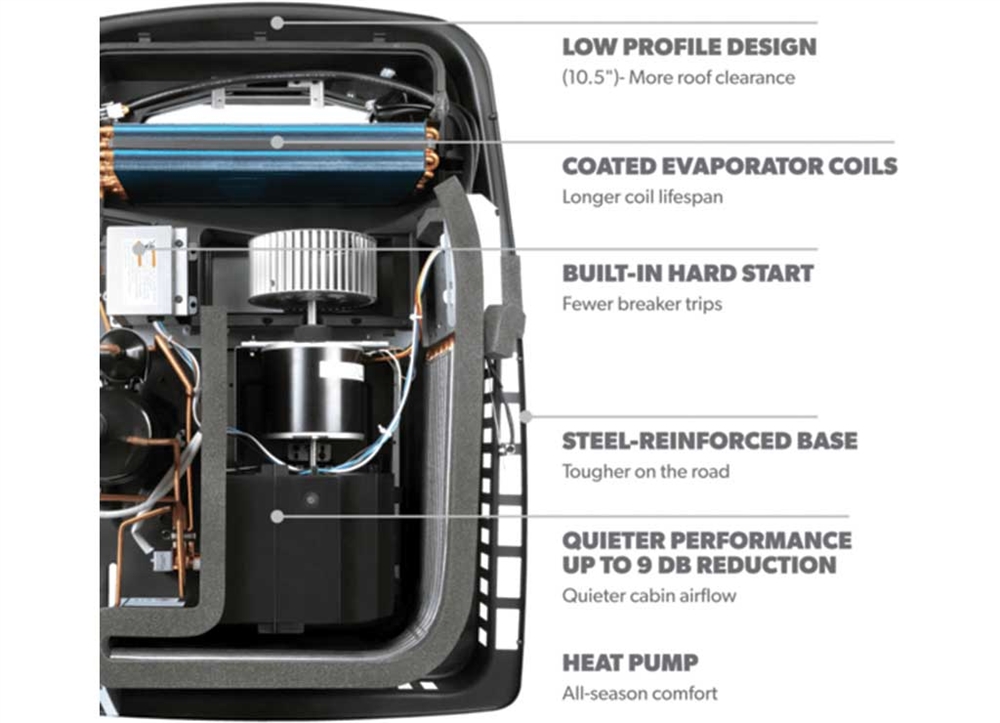

At 10.5 inches tall, the FJX5557EHPBKCS clears low-clearance garages, bridges, and overhangs that defeat taller units. The black finish matches popular dark-roof coach profiles and resists UV fading in direct sun exposure.
High-capacity output for coaches up to approximately 40 feet, even in desert heat.
Electric heat pump operation keeps the cabin warm in shoulder seasons without burning propane.
Clears low bridges, campground overhangs, and enclosed storage buildings most taller units cannot.
Reduces compressor startup amp draw -- critical for generator operation and smaller shore power pedestals.
The FreshJet 5 is engineered to use the same 14.25 x 14.25-inch roof opening as the Dometic Penguin II series. No roof cutting or custom adapter required for most Penguin II installations. Verify your current unit uses the standard Penguin footprint before ordering.
Unlike older R-410A units, the FreshJet 5 uses R-32 refrigerant, which offers a lower global warming potential and improved thermodynamic efficiency. R-32 requires EPA Section 608-certified technicians for any refrigerant service -- this is not a DIY refrigerant task. The sealed system arrives pre-charged from the factory and should not need field refrigerant service under normal operation.
The FJX5557EHPBKCS ships with the Multi-Zone FreshJet control board already installed in the unit. This board enables integration with Dometic's Connect ecosystem for zone-by-zone climate management across multiple rooftop units. You still need the Connect Essential thermostat and the ADB (Air Distribution Box) -- sold separately -- to complete a functional installation. The unit will not operate without a compatible thermostat connected.
The FreshJet 5 mounts through the standard 14.25 x 14.25-inch roof opening. A gasket seal is included to prevent water intrusion between the unit base and the roof surface. Torque the mounting bolts evenly to compress the gasket uniformly. The unit requires a 120V AC shore power or generator connection -- it is not a 12V DC unit.
This unit requires the Dometic Connect Essential thermostat AND the compatible ADB (Air Distribution Box) to function. Neither is included with this purchase. Confirm you have both components on hand before installation. Operating the unit without the ADB installed risks evaporator damage from unrestricted airflow.
