Drain Master 5202 Electric 3" Waste Valve with LED Indicator & Push-Button Operation

The Drain Master 5202 is a 3" 12V DC electric gate valve for RV black/gray tanks that opens and closes at the push of a button. The heavy-duty LED operator switch shows open/not-closed status at a glance, while stainless-steel gearing delivers fast, reliable actuation—typically in about a second. The system is plug-and-play with a simple two-wire hookup and includes a manual override so you can operate the valve if power is unavailable.

Dimensions & electrical

• Valve body (approx.): 10" W × 6" H × 1-3/4" D (allow clearance for motor and wiring) :contentReference[oaicite:0]{index=0}
• Manual valve size (for comparison): 9-5/8" W × 4-1/2" H × 3/4" D :contentReference[oaicite:1]{index=1}
• Operating voltage: 12V DC
• Current draw: up to ~2.5A during the 1–2 second cycle; minimal at rest :contentReference[oaicite:2]{index=2}
• Wiring: Mate-N-Lok connectors; LED switch harness includes inline fast-blow fuse (5A) :contentReference[oaicite:3]{index=3}
• Weight (approx.): ~2 lb (valve assembly) :contentReference[oaicite:4]{index=4}

Why RVers choose Drain Master

• Push-button dumping: No crawling under slides to pull stiff cables.
• LED status: The switch light shows when the valve is open or not fully closed, preventing drive-off mistakes. :contentReference[oaicite:5]{index=5}
• Fast actuation: Opens/closes in about a second—reduces partial dumps and cable chatter. :contentReference[oaicite:6]{index=6}
• Manual override: Double-sided override with included 1/8" Allen key—operate even with no power. :contentReference[oaicite:7]{index=7}
• Durable drive: Stainless gearing handles frequent use and tank residue better than cable systems. :contentReference[oaicite:8]{index=8}

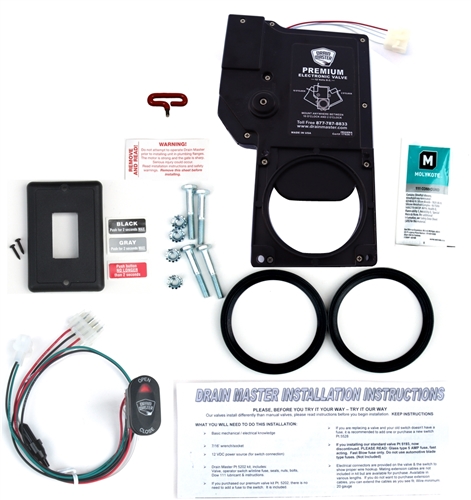

What’s in the box (5202 kit)

• 3" electric gate valve assembly
• Weatherproof LED operator switch with harness & inline 5A fuse
• Pre-mounted LED sensor on valve gate
• Set of 2 seals, nuts/bolts
• Dow 111 lubricant
• Mate-N-Lok connectors
• 1/8" Allen wrench (manual override)
• Installation instructions

Compatibility & install notes

• Piping: Designed for standard 3" ABS tank plumbing. For 1-1/2" galley lines, use the Drain Master reducer kit (sold separately). :contentReference[oaicite:9]{index=9}
• Mounting footprint: Similar to manual valves; allow extra height for the motor head.
• Switch location: Can be mounted inside a compartment or interior panel; weatherproof construction for bay installs. :contentReference[oaicite:10]{index=10}
• Power: Fuse the circuit at 5A; keep wire runs tidy; avoid constant pressing—hold for ~1–2 seconds per operation. :contentReference[oaicite:11]{index=11}

Basic installation

1. Support the plumbing. Remove the manual 3" valve and clean sealing surfaces.
2. Install new seals, position the 5202 valve, and bolt through the flanges.
3. Mount the LED operator switch; run the harness to the valve and connect the plugs.
4. Connect 12V DC with a 5A fuse; test open/close (button press ~1–2 seconds).
5. Apply Dow 111 to seals as needed; verify no drips and proper LED indication.

Warranty & support

• Manufacturer limited warranty (see included terms)
• RVupgrades phone, chat, email, and text support if you need wiring or reducer guidance

Recommended add-ons

• Second LED operator switch for interior control (compatible harness) :contentReference[oaicite:12]{index=12}
• 1-1/2" reducer kit (for galley lines) :contentReference[oaicite:13]{index=13}
• ABS cement, flange hardware refresh, and butyl/tank sealant as needed
