Fasco Furnace Draft Inducer Blower Motor For Fasco/Lennox, 115V, 2850/3300 RPM

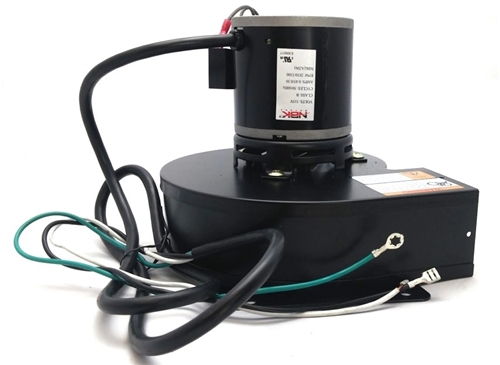

Fasco A206 Furnace Draft Inducer Blower Motor For Fasco/Lennox, 115V, 2850/3300 RPM
Fasco Furnace Draft Inducer Blower Motor For Fasco/Lennox, 115V, 2850/3300 RPM



Price: $139.95
MFG P/N: A206
MFG: Fasco
SHIPS: Same Business Day Before 1 PM CST
SPECIAL: Click Here for Transit Time


Quantity in Stock :10


Availability: In Stock
Product Code: 12177
Qty:

Description

The Fasco Replacement Draft Inducer Blower Motor is designed for certain Fasco and Lennox furnace models. 2850/3300 RPM, 115 volts.
  • Replaces the following models:
    • Fasco 70218473
    • Fasco 70218983
    • Lennox 20J8901
    • Lennox 65204100
    • Lennox 7021-8473
    • Lennox 7021-8983
  • Voltage: 115V.
  • Current: 0.45/0.50A.
  • Cycles: 50/60 Hz.
  • Class B insulation.
  • Single phase.
  • Shaded pole.
  • Sleeve bearing.
  • Open air over.
  • Diameter: 3.3".
  • 55" leads with spade terminal and stripped end.
  • Built-in thermal protection.
  • Ambient Temperature: 104 degrees F / 40 degrees C.
  • Speed: 2850/3300 RPM.
  • Weight: 5 lbs.
  • Note: Also known as NBK Parts 12177.
