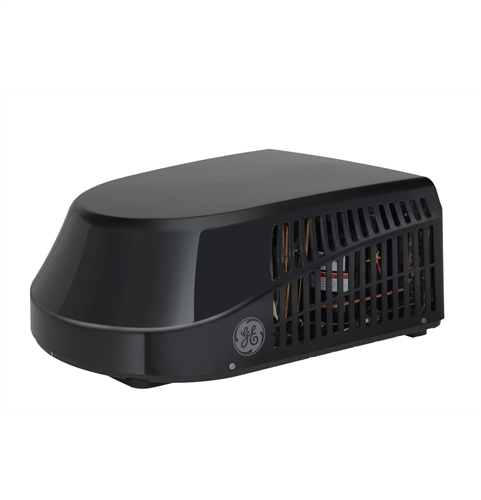

The GE Appliances GRHS13XHHB delivers powerful year-round climate control for your RV with a heat pump that cools in summer and heats in cooler weather, all while running on R32 refrigerant with 70% lower global warming potential than R410A. Designed as a direct rooftop replacement for standard 14" x 14" openings, this unit is built for full-time RVers, weekend warriors, and anyone serious about reducing propane consumption without sacrificing comfort.
The GRHS13XHHB is GE Appliances' answer to demands for both performance and environmental responsibility in the RV market. R32 refrigerant carries zero ozone depletion potential and a global warming potential roughly 70% lower than the R410A used in older ARH-series units. Despite the greener chemistry, cooling output is identical -- 13,500 BTU -- so you are not sacrificing performance for sustainability.
The integrated heat pump uses a reverse-cycle defrost system to keep producing heat even when outside temperatures drop to 25 deg F, significantly cutting the hours your propane furnace needs to run. GE estimates the heat pump can replace output equivalent to a propane furnace rated between 20,000 and 40,000 BTU at 75% efficiency, depending on conditions.
Zero ozone depletion potential and 70% lower GWP than R410A with no reduction in 13,500 BTU cooling output.
Reverse-cycle operation with auto defrost provides reliable heat without propane -- even in near-freezing conditions.
High-performance motor mounted on noise-reducing rubber grommets with reinforced brackets and vibration-control hardware.
Compatible with both ducted and non-ducted interior kit configurations -- choose the upgrade kit that matches your ceiling setup.
R32 is a single-component refrigerant (not a blend), which makes it easier to recharge in the field without concerns about blend-ratio drift. Its lower GWP of 675 (vs. 2,088 for R410A) also places it ahead of upcoming regulatory thresholds, meaning this unit is designed for the long term. Same BTU output, smaller environmental footprint.
Running the heat pump instead of your propane furnace during shoulder seasons (spring and fall camping, or nights that drop into the 30s and 40s) can meaningfully reduce propane consumption. The auto defrost cycle runs automatically when the outdoor coil begins to ice, temporarily reversing the refrigerant cycle to clear buildup and then resuming heating -- no manual intervention required.
This rooftop unit ships without an interior ceiling assembly. You must order a compatible upgrade kit separately to complete the installation. Four options are available depending on your duct configuration and color preference:
If you are replacing an older ARH-series unit (ARH15AACW or ARH15AACB), you must also purchase one of these upgrade kits. ARH control boards and ceiling assemblies are not electrically compatible with GRH-series units.
The GRHS13XHHB is built to handle the thermal cycling, road vibration, and UV exposure that quickly degrade lesser rooftop units. Key construction details include:
The GRHS13XHHB is the direct upgrade replacement for the following GE Appliances RV air conditioners:
Physical footprint and the standard 14" x 14" roof opening are compatible. However, the wiring harness, control board signals, and ceiling assembly connectors changed between generations. An upgrade kit (listed above) is mandatory when coming from an ARH unit.
