LaSalle Bristol Utopia UniGuard Waterless Drain Valve System
LaSalle Bristol 65UGAKIT1 Utopia UniGuard Waterless Drain Valve System
LaSalle Bristol Utopia UniGuard Waterless Drain Valve System

Alternative Views:


Price: $32.32
MFG P/N: 65UGAKIT1
MFG: Lasalle Bristol
UPC #: 040472109498
SHIPS: 1 Business Day

Quantity in Stock :35

Availability: In Stock
Qty:

Description Instructions

The LaSalle Bristol Utopia UniGuard is a low-profile, waterless sanitary waste drain valve that installs in place of a standard water seal P-trap. Features a self-sealing silicone rubber valve to prevent nasty odors from seeping out from your plumbing into your RV living space.

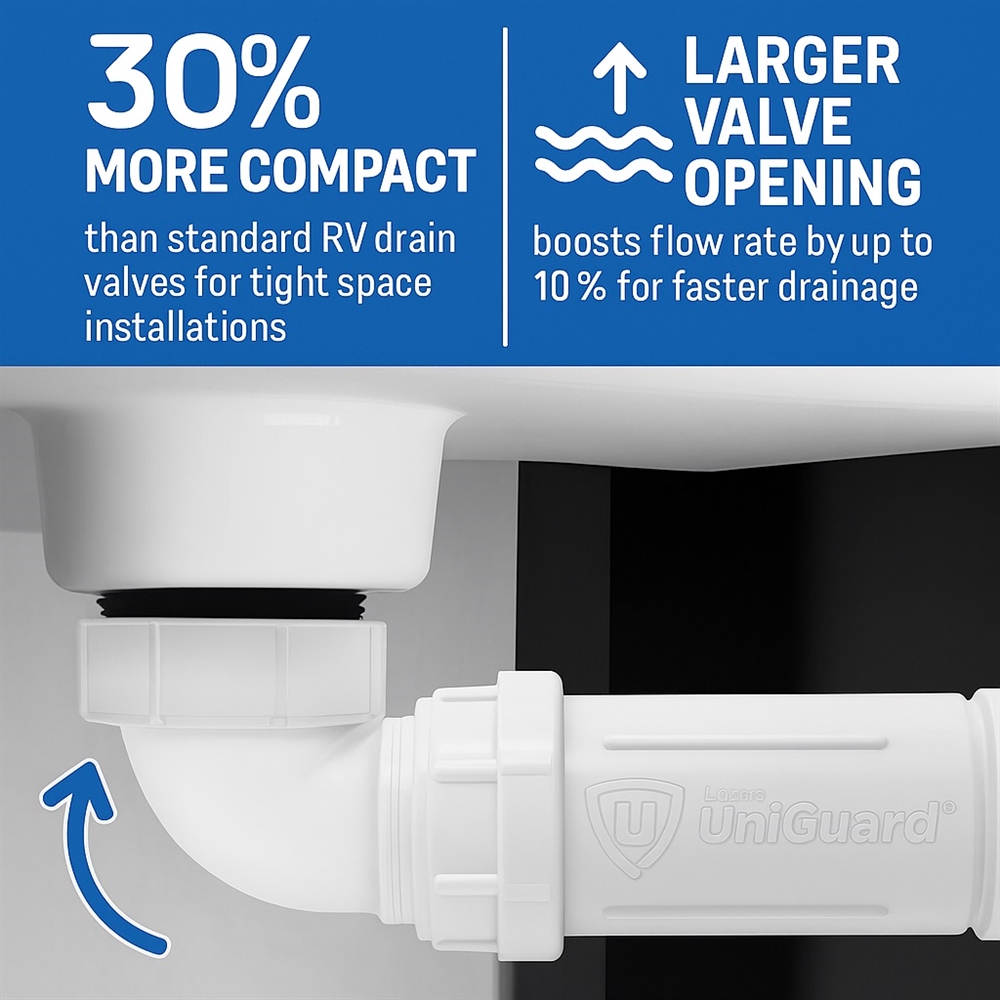

  • 30% more compact than similar drain valves, making it ideal for tighter spaces.
  • Larger valve opening for up to 10% more flow than similar waterless valves.
  • Better flow capacity for faster draining and less clogging.
  • Exclusive inner guard prevents the silicone valve from inverting during reverse flood testing.
  • May be installed in vertical or horizontal orientation.
  • Water pressure coming from a draining fixture, such as a sink or bathtub, causes the self-sealing valve to open.
    • Once water has drained out of your fixture, the valve will close again to form an air-tight seal.
  • Ideal for the following applications: kitchen sinks, bathroom sinks, showers, bathtubs, washing machine discharge, and dishwashers.
  • Note: must be installed no further than 6 ft away from the fixture it is servicing, and a minimum of 12" away from holding tanks.
  • Quiet operation, no gurgling sounds.
  • Materials used in this kit are:
    • Silicone rubber - internal bladder/valve.
    • White polypropylene - inner guard.
    • Thermoplastic rubber (TPR) - slip-joint washers.
    • EPDM rubber - black flat washer.
  • UniGuard valve offers a 1-1/2” female threaded connection and a 1-1/2” male threaded connection.
  • Compliant with several codes and standards, see additional info section below.

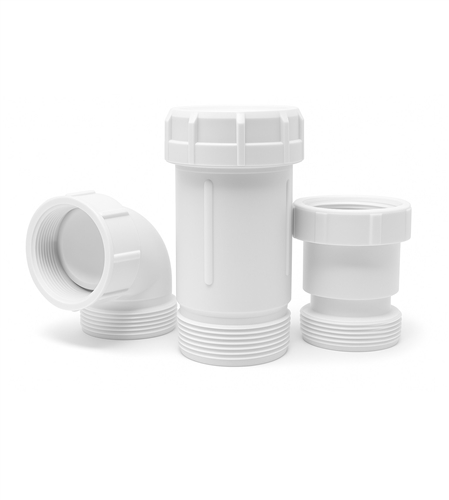

  • This kit includes (1) UniGuard valve, (1) UniGuard elbow, (1) straight adapter coupling, and ABS fittings. Note: See additional info section below for attachment sizes for each individual component.
  • Weight: 3 lbs.
  • Limited 1-Year Manufacturer Warranty.
  • Made in the USA.

LaSalle Bristol Utopia UniGuard Waterless Drain Valve System

Additional Product Information
Kit components are as follows:



Compliant with the following codes and standards:

2018 National Fire Protection Association (NFPA) 1192

2018, 2015 and 2012, Uniform Plumbing Code®

2015 and 2010 National Plumbing Code of Canada

ASME A112.18.8-2009(R14), In-Line Sanitary Waste Valves for Plumbing Drainage Systems

CSA TIL MSE 55-2009, In-Line Sanitary Waste Valves for Plumbing Drainage Systems
