Steps propane cylinder pressure down to a regulated 30 PSI output. 1/4" female NPT inlet and outlet. Single stage, 65,000 BTU. UL144 certified for LP gas. -20°F to 120°F operating range. Horizontal mount.

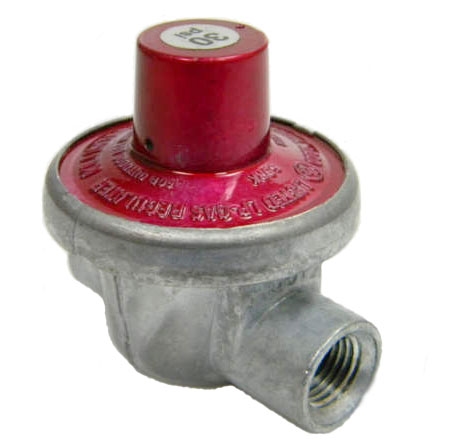

Propane leaves the tank at high, variable pressure that depends on tank fill level and ambient temperature — far too high and inconsistent to feed directly into most gas lines or downstream regulators safely. The MB Sturgis 108072-MBS is a single-stage high-pressure regulator that takes that raw cylinder pressure and steps it down to a steady, regulated 30 PSI output, giving you a consistent, predictable supply pressure to work with further down the system.
With a 1/4" female NPT inlet and a matching 1/4" female NPT outlet, the 108072-MBS threads directly into standard pipe-threaded fittings on both ends — no flare adapters needed if your connections are already NPT. It's commonly used as the first-stage regulator in multi-regulator gas distribution setups, such as feeding several individual RVs from a single large propane source, or as part of a two-regulator system where a second, low-pressure regulator further reduces the 30 PSI output down to the roughly 11" water column pressure that RV appliances actually require.
Regulates variable cylinder pressure down to a consistent 30 PSI, protecting downstream components and lines
Female NPT threads on both ends thread directly into standard pipe-threaded fittings without flare adapters
Certified to UL144 standard for LP gas regulator applications
Straightforward single-stage regulation — ideal as the first stage in a multi-regulator distribution setup
The 108072-MBS regulates gas down to 30 PSI — a high-pressure output, not the low water-column pressure (typically around 11" W.C.) that RV appliances like stoves, furnaces, and water heaters are designed to run on. This regulator is typically used: • As the first stage in a two-regulator setup, paired with a second low-pressure regulator that steps the 30 PSI output down further to appliance-safe pressure • To distribute propane from a large central tank (such as a 1,000-gallon supply) to multiple separate RVs, each with its own downstream low-pressure regulator • In applications specifically requiring a 30 PSI supply pressure This regulator should NOT be used to feed RV appliances directly without a downstream low-pressure regulator — doing so would deliver dangerously high pressure to appliances designed for low water-column pressure. If you need a regulator to feed RV appliances directly from a propane tank, look at MB Sturgis's two-stage regulators (such as the Two-Stage Regulator or Vertical 2-Stage Propane Regulator) instead, which handle both pressure-reduction stages in one unit.
Installation Steps: 1. Shut Off Gas Supply: Close the tank valve completely before installing or replacing a regulator 2. Confirm System Design: Verify whether this regulator is intended as a stand-alone high-pressure stage or as the first stage feeding a downstream low-pressure regulator — confirm your overall system design before installation 3. Mount Horizontally: Install the regulator in a horizontal mounting position per the included instructions 4. Connect Inlet: Thread the upstream gas supply line's male NPT fitting into the regulator's 1/4" female NPT inlet, using appropriate thread sealant rated for gas lines 5. Connect Outlet: Thread the downstream line or regulator's male NPT fitting into the 1/4" female NPT outlet 6. Tighten Securely: Tighten both connections to a secure, leak-free fit without overtightening 7. Leak Test: Slowly open the gas supply and perform a soap-and-water leak test on all connections before placing the system into service Regulator installation should be performed or verified by a qualified technician. Always leak-test connections before use.
In The Package: • (1) 108072-MBS 30 PSI High Pressure Regulator • 1/4" Female NPT Inlet and Outlet Connections NOT Included: • Mounting hardware • Downstream low-pressure regulator (required separately for direct appliance feed applications) • Thread sealant • Pigtail or supply hose
MB Sturgis Technical Support: Phone: (314) 291-6665 Email: [email protected] MB Sturgis Inc. has supplied OEMs, distributors, gas installers, and end users with safe LP and natural gas connection products since 1959.
