Connects a propane tank to your RV's regulator. RV Type 1 (ACME) connector with built-in back check valve prevents hazardous backflow — suitable for dual-tank setups. 1/4" male inverted flare regulator-side fitting. 60" (5 ft) length. Rated up to 450,000 BTU/hr.

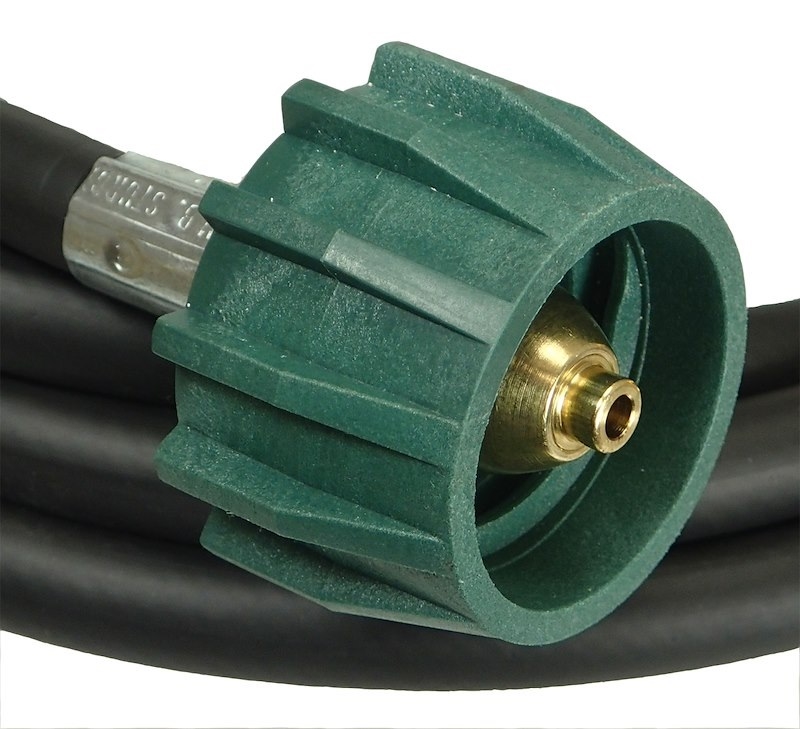

A propane pigtail is the connection between your RV's propane tank and its regulator — and the MB Sturgis 100575-60-MBS is built around the RV Type 1 (ACME) connector, the modern standard fitting found on most current propane cylinders. This 60" (5 ft) pigtail features a built-in back check valve, which prevents hazardous backflow leakage and makes it suitable for dual-tank setups where two pigtails feed a shared two-stage regulator.
The Type 1 connector provides a higher rate of flow than older POL-style connections, which reduces the chance of the system going into bypass mode and shutting down gas supply during normal use. If flow demand does exceed the connector's 450,000 BTU/hr capacity, an internal ball valve responds by pressing against a spring to shut off flow as a safety measure, rather than allowing an unsafe condition to develop. The opposite end terminates in a 1/4" male inverted flare fitting, designed to thread into the female inverted flare inlet found on most RV propane regulators. At 60" (5 feet), this is the longest pigtail length MB Sturgis offers in this series — well suited for tank mounting locations set farther from the regulator, larger dual-tank trailer configurations, or installations where tank and regulator placement leaves extra distance to cover. Built from durable thermoplastic hose material, the 100575-60-MBS is designed to handle the temperature swings and outdoor conditions typical of RV use.
Prevents hazardous backflow leakage — makes this pigtail suitable for dual-tank propane systems with a shared regulator
Modern standard tank connector provides higher flow rate than older POL fittings, reducing the chance of bypass shutdown
Internal ball-and-spring mechanism shuts off flow if demand exceeds rated capacity, protecting against unsafe overflow conditions
The longest standard pigtail length MB Sturgis offers — ideal for greater tank-to-regulator distances
Propane pigtails are matched to specific tank and regulator fitting types. Before ordering, confirm: 1. Tank-side connector — Type 1 (ACME) vs. POL: This pigtail uses the modern RV Type 1 (ACME) connector, standard on most current propane tanks. If your tank uses the older POL left-hand-thread connection, you will need a different pigtail or an adapter — this part will not thread onto a POL valve. 2. Regulator-side fitting: The regulator end of this pigtail is a 1/4" male inverted flare. Confirm your regulator has a matching 1/4" female inverted flare inlet. Most regulators instead use 1/4" NPT — if yours does, you will also need a brass NPT-to-inverted-flare adapter fitting, or consider the MB Sturgis 100473 series, which has a male NPT regulator-side fitting built in. 3. Length: This pigtail is 60" (5 ft) long — the longest in the 100575 family. If your tank-to-regulator distance is shorter, a shorter pigtail (12"–48") will route more cleanly with less excess hose to manage. 4. Dual-tank setups: If you have two tanks feeding a single two-stage regulator, you will need two pigtails — one per tank.
The 100575 Propane Pigtail with Back Check is available in multiple standard lengths, all sharing the same RV Type 1 x 1/4" male inverted flare connector configuration: • 100575-12-MBS — 12" (1 ft) • 100575-15-MBS — 15" • 100575-20-MBS — 20" • 100575-24-MBS — 24" (2 ft) • 100575-30-MBS — 30" • 100575-36-MBS — 36" (3 ft) • 100575-48-MBS — 48" (4 ft) • 100575-60-MBS (This Product) — 60" (5 ft) Select the length that best matches the physical distance between your tank(s) and regulator. If your regulator instead requires a 1/4" male NPT connection, see the MB Sturgis 100473 series.
Installation Steps: 1. Shut Off Gas Supply: Close the tank valve completely before disconnecting any existing pigtail or making new connections 2. Connect the Type 1 End: Thread the RV Type 1 (ACME) connector onto the propane tank valve and hand-tighten 3. Connect the Inverted Flare End: Thread the 1/4" male inverted flare fitting into the regulator's matching female inlet 4. Manage Excess Hose: With 60" of length, route and secure any excess hose neatly to avoid kinking, pinching, or contact with hot surfaces or moving parts 5. Tighten Securely: Tighten both connections to a secure, leak-free fit without overtightening 6. For Dual-Tank Setups: Repeat installation for the second tank and pigtail, connecting both to the two-stage or automatic changeover regulator's separate inlets 7. Leak Test: Slowly open the tank valve(s) and perform a soap-and-water leak test on every connection before use Gas line work should be performed or verified by a qualified technician. Always leak-test connections before placing the system into service.
In The Package: • (1) 100575-60-MBS Propane Pigtail — 60" Length • RV Type 1 (ACME) Connector with Built-In Back Check Valve • 1/4" Male Inverted Flare Fitting NOT Included: • Second pigtail (required for dual-tank setups — purchase separately) • Regulator • NPT adapter fitting (needed if your regulator uses NPT instead of inverted flare) • Thread sealant
MB Sturgis Technical Support: Phone: (314) 291-6665 Email: [email protected] MB Sturgis Inc. has supplied OEMs, distributors, gas installers, and end users with safe LP and natural gas connection products since 1959.
