Low-profile 35,000 BTU LP gas RV furnace with direct spark ignition and 12V DC operation. Designed for ducted RV heating systems with flexible vertical or horizontal installation and bottom, side, or top discharge options.

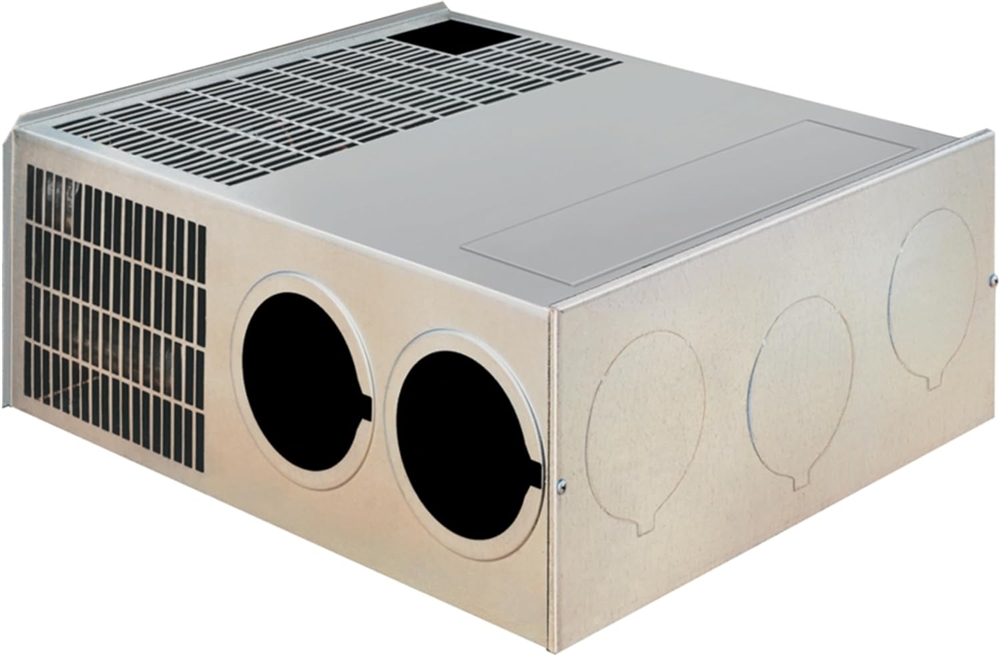

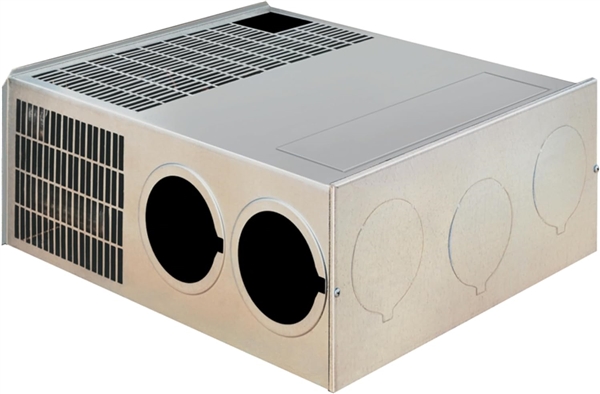

The Suburban 2588A SF-35VHQ is a 35,000 BTU LP gas furnace designed for ducted RV heating applications. Its low-profile cabinet helps it fit into areas where taller furnace models may not work, while the direct spark ignition system provides automatic ignition without a standing pilot.
This VHQ furnace can be installed vertically or horizontally, making it a flexible replacement or installation option for many RV layouts. It supports bottom, side, or top discharge configurations, allowing installers to adapt the furnace to the coach’s ducting layout.
Provides strong heating performance for compatible ducted RV furnace systems
Automatic DSI ignition eliminates the need for a standing pilot light
Only 7-1/2 inches high, helping fit tight RV furnace compartments
Flexible orientation supports more replacement and installation layouts
The SF-35VHQ is commonly used in motorhomes, travel trailers, fifth wheels, and other RVs that require a 35,000 BTU ducted LP furnace with 12V DC controls and blower operation. This furnace may be used as a replacement for compatible Suburban furnace applications when the BTU rating, cabinet dimensions, ducting layout, venting, gas connection, thermostat setup, and access door requirements are verified.
• One Suburban 2588A SF-35VHQ 35,000 BTU RV furnace • Furnace installation documentation/instructions as supplied by manufacturer
• Wall thermostat required for furnace operation • Correct Suburban exterior access door required for VHQ installation • Vent assembly, ducting, registers, LP gas fittings, and installation hardware as required by the RV application Always verify the required access door and venting components for the exact furnace model and RV installation before ordering.
RV furnace installation involves LP gas, combustion air, exhaust venting, 12V electrical wiring, thermostat wiring, and duct airflow requirements. Improper installation can create fire, carbon monoxide, gas leak, or overheating hazards. Installation and replacement should be performed by a qualified RV technician. Verify model compatibility, clearances, ducting, return air, gas pressure, venting, and local code requirements before installation.
The Suburban 2588A SF-35VHQ is a 35,000 BTU LP gas ducted RV furnace with direct spark ignition, 12V DC operation, low-profile cabinet dimensions, and flexible vertical or horizontal installation capability. Verify the access door, venting, ducting, thermostat, and RV fitment requirements before ordering.
