I got a call a few years back from a customer who was parked at a campground in the Smoky Mountains and couldn’t get his entry door to close properly. The door had been getting progressively harder to latch over the course of a season, and that morning it had finally reached the point where he couldn’t get a secure close at all. The cause, when I walked him through the diagnosis over the phone, was a hinge that had lost its friction tension—the leaf springs inside the hinge assembly had fatigued to the point where the hinge was no longer holding the door in position. The door was sagging just enough to misalign with the latch.
RV entry door hinges take more abuse than almost any hinge application I can think of outside of heavy industrial use. They open and close dozens of times per day when the rig is in use. They carry the full weight of a substantial door—often a door with a window, a screen insert, and reinforced construction—through that opening cycle every time. They’re exposed to road vibration, temperature cycling, and the stress of a rig that’s constantly flexing over uneven surfaces. That factory hinge has a finite service life, and when it reaches the end of it, the door problems that follow range from annoying to genuinely compromising the security of the rig.
This roundup covers the best entry door hinges and door hardware we carry at the RV Upgrade Store, from direct-replacement friction hinge assemblies to overhead door support hinges that distribute door weight more effectively and protect the door frame over time.
Best for: Travel trailer and fifth wheel owners with black entry door frames who need a direct-replacement friction hinge assembly
Lippert is the dominant supplier of structural and hardware components to the RV manufacturing industry—if you own a travel trailer, fifth wheel, or motorhome built in the last two decades, there’s a high probability that Lippert components are already on it. Their 6-leaf friction hinge assembly is a direct replacement for the factory hinge on a wide range of RV entry doors, which means the mounting pattern, the screw holes, and the overall dimensions match what’s already on the rig.
The friction hinge design is what makes this assembly work the way an RV door hinge should. Unlike a standard residential door hinge that simply pivots on a pin, the friction hinge incorporates internal leaf springs that create resistance at specific positions in the door’s swing arc. This friction holds the door open at the position you leave it—whether that’s fully open, half open, or anywhere in between—without the door swinging closed on its own in a breeze or swinging fully open and straining the hinges in a crosswind.
That hold-open function is essential in the RV context in a way it isn’t in a house. At a campsite, you’re constantly moving in and out with your hands full—carrying dishes, groceries, firewood, dogs, and children. A door that swings closed every time you pass through it is a daily frustration. A door that stays where you put it is a quality-of-life feature that you notice and appreciate every single time you use it.
The 6-leaf design provides more contact area and more spring load distribution than simpler hinge assemblies, which translates to longer service life before the friction mechanism fatigues. When the old hinge’s leaf springs have lost their tension—the symptom is a door that no longer holds position and either swings freely or requires active effort to keep in position—replacing the hinge assembly restores the original hold-open function immediately.
Pro Tip: When replacing a friction hinge, use the original screw holes where possible rather than trying to relocate the hinge position. The factory mounting holes are in the structural framing behind the door skin, and the screws that went into them have compacted the surrounding material for a tight grip. New holes in new locations may not have the same holding strength, particularly in the foam-core door panels common in modern RV construction.
Buy the Lippert Black Entry Door Friction Hinge Assembly
Best for: RV owners whose entry door has developed a sag or misalignment problem, or who want to add overhead support to reduce the load on the main entry door hinges
The overhead door support hinge is the product that solves the sag problem—when the entry door has dropped at the latch side and no longer aligns properly with the strike plate, making it difficult or impossible to latch without lifting the door as you push it closed. This sag develops when the main entry door hinges have fatigued and can no longer fully support the door’s weight, or when the door frame itself has shifted slightly over years of road travel, and the door no longer hangs plumb in the opening.
The overhead support hinge mounts at the top of the door opening and provides an additional bearing point that takes some of the door’s weight off the main hinges. By distributing the door’s weight across more contact points, the overhead hinge reduces the load on each individual hinge, slows the rate of hinge fatigue, and—critically—helps correct existing sag by providing upward support at the top of the door.
RV Designer’s overhead support hinge is designed for the door frame dimensions and construction typical of RV entry doors, with mounting geometry that accommodates the door’s swing arc while providing effective support throughout the door’s range of motion. The installation adds a hinge at the top corner of the door where the door frame meets the body—a location that provides maximum mechanical advantage for lifting and supporting the door’s latch-side edge.
I recommend the overhead support hinge both as a corrective measure for sagging doors and as a preventive addition to rigs where the entry door is particularly heavy—large doors with dual-pane windows, reinforced fiberglass doors, or doors on wider slides that carry more weight than the standard entry door configuration. Adding overhead support before sag develops is cheaper than correcting sag after the fact, because you’re protecting the main hinges rather than restoring them.
Pro Tip: After installing an overhead door support hinge, check the door latch alignment before fully tightening all the mounting screws. The new hinge changes the door’s hanging geometry slightly, and you may need to make minor adjustments to the overhead hinge position to achieve the best door alignment before committing to the final screw positions.
Buy the RV Designer Overhead Door Support Hinge

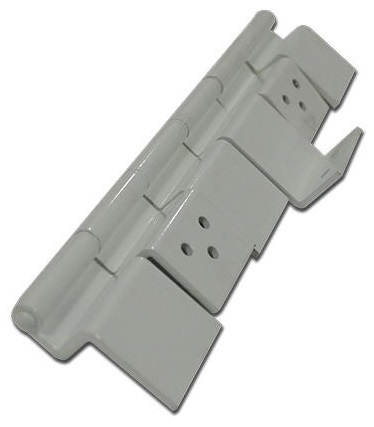

Best for: Travel trailer and fifth wheel owners with white entry door frames who need a color-matched direct-replacement friction hinge assembly
This is the white-finish counterpart to the Lippert black friction hinge assembly—functionally identical in design, spring load, and performance, but with a white finish that matches the white door frames and trim used in a large proportion of travel trailers and fifth wheels. If your rig has white door hardware and trim, installing a black hinge creates a visible mismatch that’s immediately obvious. The white version eliminates that aesthetic issue entirely.
The 6-leaf friction mechanism is the same engineering as the black version: internal leaf springs create hold-open resistance at any position in the door’s swing arc, the 6-leaf design distributes the spring load across multiple contact points for extended service life, and the overall hinge dimensions are designed as a direct replacement for factory Lippert hinges.
Lippert’s white finish is applied to withstand the outdoor exposure that RV door hardware experiences—UV, rain, temperature cycling, and the mechanical abrasion of the door opening and closing repeatedly against the hinge. A white finish that yellows, chips, or peels within a season or two doesn’t solve the aesthetic problem it was installed to address. Lippert’s OEM-quality finish holds up under real conditions.
When ordering, confirm your door frame color before purchasing. White and almond are visually similar, but not the same, and an almond-framed door with a true white hinge will show the mismatch under direct light. If you’re unsure of your door frame’s finish, compare it to a known white reference—a piece of white paper or a white appliance panel—to confirm before ordering.
Pro Tip: Replace all hinges on a sagging door at the same time, not just the one that appears most worn. If one hinge has fatigued to the point of causing problems, the others have been working harder to compensate and are likely close behind. Replacing them all together is more efficient than making three separate repair trips, and it ensures consistent friction resistance across all the hinge points.
Buy the Lippert White Entry Door Friction Hinge Assembly

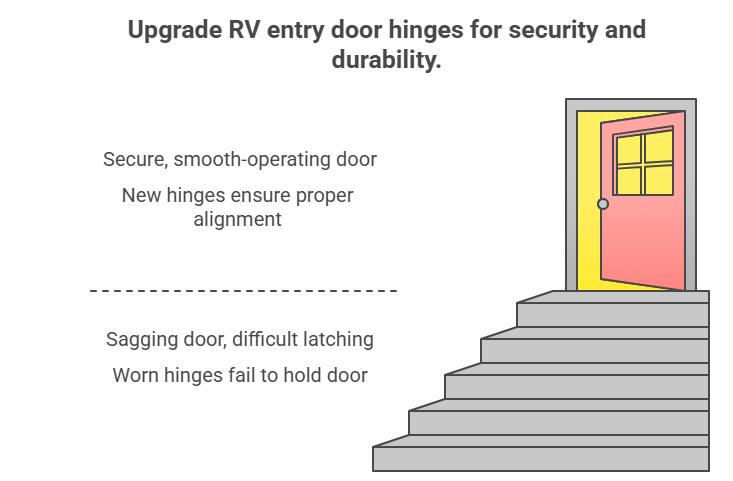

Most entry door problems fall into one of three categories, and knowing which category applies to your situation points directly to the right solution.
The entry door is one of the most used components on any RV—it opens and closes more times per trip than almost anything else on the rig. The hinges that support it are critical to the door functioning properly, holding position reliably, and latching securely. When they wear out, the effects are immediately noticeable and progressively worse until they’re addressed.
Lippert’s friction hinge assemblies are the right replacement choice for the vast majority of RV entry doors—they’re OEM-quality components that restore the factory hold-open function and support the door correctly for years of continued use. The overhead support hinge is the right addition when the main hinges alone are insufficient for a heavy door or when correction of an existing sag is needed.
If you’re not sure which hinge assembly fits your specific door, give us a call at the store. Door hinge identification typically requires knowing your rig’s make, model, and year, along with the door frame color—a thirty-second conversation that makes sure you get the right parts the first time.
