Understanding your RV’s electrical system is essential for safe, reliable operation and for avoiding the frustration of tripped breakers and failed appliances. After decades of helping RVers navigate electrical issues, I can tell you that electrical system confusion causes more problems and misunderstandings than almost any other aspect of RV ownership.
The difference between 30-amp and 50-amp service isn’t just about how much power you have available—it fundamentally affects what appliances you can run simultaneously, what adapters and surge protection you need, and how you manage your power consumption at campgrounds.
The challenge for many RVers is that electrical systems seem mysterious and intimidating. Terms like “amp rating,” “voltage,” and “wattage” get thrown around, and it’s not always clear what they mean or why they matter. Add in the complications of adapters, surge protectors, and campground electrical variations, and it’s no wonder many RVers feel confused. But understanding your RV’s electrical system doesn’t have to be complicated, and making informed decisions about electrical equipment is essential for safe, trouble-free RVing.
Today, I’m providing a comprehensive guide to understanding 30-amp and 50-amp RV electrical systems and choosing the right equipment for your needs. This isn’t an electrical engineering course—it’s practical guidance based on years of experience helping RVers understand and manage their electrical systems safely and effectively.
The fundamental difference between 30-amp and 50-amp service is the amount of power available to your RV. Understanding this difference is essential for managing your power consumption and avoiding electrical problems.
30-amp service provides 3,600 watts of power at 120 volts. This is adequate for most travel trailers and smaller motorhomes. A 30-amp system uses a three-prong plug with one hot leg, one neutral, and one ground. With 3,600 watts available, you can run most RV appliances, but you need to be mindful of what you’re running simultaneously. Running your air conditioner, microwave, and electric water heater all at once will likely trip your breaker.
50-amp service provides 12,000 watts of power at 120/240 volts. This substantially higher capacity is standard on larger motorhomes and high-end fifth wheels. A 50-amp system uses a four-prong plug with two hot legs, one neutral, and one ground. With 12,000 watts available, you can run multiple air conditioners, your microwave, electric water heater, and other appliances simultaneously without worrying about tripping breakers.
The key distinction is that 50-amp service isn’t just “more powerful” than 30-amp service—it provides more than three times the power capacity. This difference fundamentally changes how you use your RV and what electrical demands you can meet.

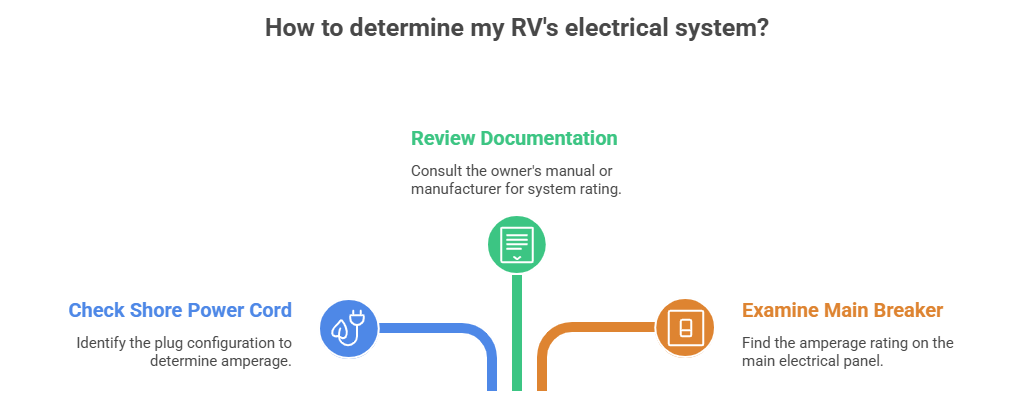

Before you can choose appropriate electrical equipment, you need to know what electrical system your RV has. This is usually straightforward but sometimes requires investigation.
One of the most common electrical challenges RVers face is connecting their RV to campground power when the available service doesn’t match their RV’s system. This is where adapters become essential equipment.
30-amp to 50-amp adapters like the Voltec Power Cord Adapter, 30 Amp TT-30P Plug And 50 Amp SS2-50R Receptacle allow you to connect your 50-amp RV to a 30-amp campground outlet. This adapter is essential equipment for any 50-amp RV owner, as many campgrounds have limited 50-amp sites. When using this adapter, remember that you’re limited to 30-amp power (3,600 watts) regardless of your RV’s 50-amp capability. You’ll need to manage your power consumption accordingly, avoiding running multiple high-draw appliances simultaneously.
15-amp to 30-amp adapters like the Camco Power Grip Electrical Adapter - 15 Amp Male to 30 Amp Female allow you to connect your 30-amp RV to a standard 15-amp household outlet. This adapter is valuable for emergency situations or when camping at locations without RV electrical hookups but with household power available. When using a 15-amp connection, you’re severely limited in what you can run—typically just your converter/charger, lights, and small appliances. Air conditioners and other high-draw appliances will trip the breaker.
50-amp power maximizers like the Camco Power Grip Power Maximizer 50 Amp Adapter provide a sophisticated solution for 50-amp RVs. These devices allow you to connect to two separate 30-amp circuits and combine their power to approach 50-amp capacity. This is particularly useful at campgrounds that have 30-amp service but no 50-amp sites. The power maximizer intelligently distributes loads across both 30-amp circuits, giving you significantly more power than a single 30-amp connection while still not quite reaching full 50-amp capacity.
Surge protectors are essential equipment for protecting your RV’s electrical system from power surges, voltage fluctuations, and other electrical problems. Campground power quality varies dramatically, and unprotected RVs are vulnerable to damage from electrical issues.
30-amp surge protectors like the Progressive Industries Hardwired 30 Amp RV Surge Protector With Remote Display provide comprehensive protection for 30-amp RVs. This hardwired unit installs permanently in your RV and protects against surges, low voltage, high voltage, open ground, open neutral, and reverse polarity. The remote display shows real-time voltage and alerts you to electrical problems before they damage your RV.
What makes the Progressive Industries hardwired protector particularly valuable is its comprehensive protection and convenience. Because it’s hardwired into your RV, you don’t need to remember to plug it in or worry about it being stolen from the campground pedestal. The remote display inside your RV provides constant monitoring of your electrical system, giving you peace of mind and early warning of problems.
50-amp surge protectors like the Progressive Industries SSP-50X Portable 50 Amp RV Smart Surge Protector provide the same comprehensive protection for 50-amp RVs. This portable unit plugs into the campground pedestal, and your shore power cord plugs into the protector. The portable design allows you to use it with any RV and take it with you if you change RVs.
The Progressive Industries portable protector includes all the protection features of the hardwired unit, including surge protection, voltage monitoring, and fault detection. The unit’s display shows real-time electrical status and error codes that help you understand any problems with campground power. The portable design makes it easy to move between RVs or to use with rental RVs.
Understanding how to manage your power consumption is essential, particularly when using adapters that limit your available power.
Some RVers consider upgrading from 30-amp to 50-amp service, but this is rarely practical or cost-effective. Such an upgrade requires replacing your shore power cord, main breaker panel, and potentially rewiring significant portions of your RV. The cost and complexity usually make it more practical to work within your existing 30-amp system or to upgrade to a different RV with 50-amp service.
However, upgrading your surge protection and adding quality adapters is always worthwhile. The Progressive Industries surge protectors provide protection that can save you thousands in repair costs, and quality adapters like the Voltec and Camco adapters ensure safe, reliable connections in various situations.
Electrical safety should always be your top priority when dealing with RV electrical systems. Understanding and following basic safety practices protects you, your RV, and others at the campground.

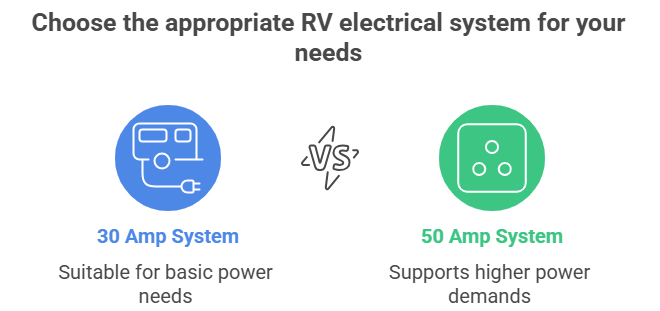

Choosing the right electrical equipment depends on your RV’s system, how you camp, and what situations you’re likely to encounter.
For all 30-amp RV owners:
For all 50-amp RV owners:
Understanding your RV’s electrical system and having the right equipment ensures safe, reliable power in any camping situation. Invest in quality surge protection and adapters, understand your power limitations, and manage your consumption appropriately for the available power. These practices will protect your RV and ensure comfortable, trouble-free camping.
