Screw-in replacement heating element for compatible RV water heaters requiring a 1000 watt, 120 volt high watt density element. Includes gasket and is designed for water heater tanks with a minimum 8" tank diameter.

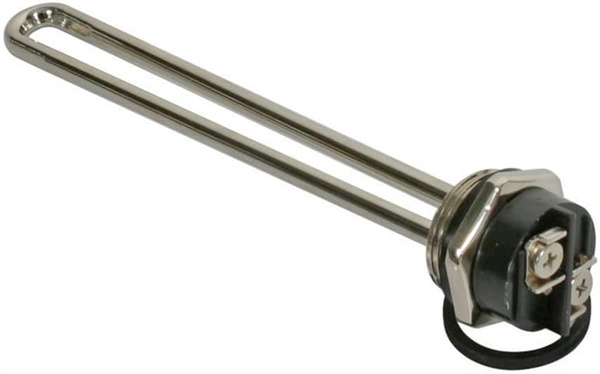

The Camco 02103 is a 1000 watt, 120 volt screw-in replacement water heater element designed for compatible RV water heaters. It is a high watt density element intended to restore electric heating performance when the original element is burned out, damaged, or no longer heating properly.
This element uses nickel-plated copper tubing with magnesium oxide construction and includes a gasket for installation. Always match the replacement element to the water heater’s required voltage, wattage, thread style, and tank clearance before ordering or installing.
Designed for compatible RV water heaters using a 1000 watt, 120 volt element
Threaded element design for compatible screw-in water heater ports
HWD replacement element for RV water heater applications
Includes gasket for sealing the element during installation
Do not choose a replacement element by appearance alone. Match the water heater’s required wattage, voltage, thread style, tank clearance, and manufacturer specifications before ordering. Disconnect power, relieve water pressure, and drain the water heater before replacing the element. Never energize a water heater element unless the tank is full of water, as dry-firing can damage the element.
The Camco 02103 is commonly used as a replacement screw-in heating element for compatible RV water heaters in travel trailers, fifth wheels, motorhomes, campers, toy haulers, and other RVs using a 1000W, 120V electric element. It is a good fit when the existing element matches the same electrical rating and screw-in style, and the water heater tank has the required internal clearance.
• One Camco 02103 screw-in water heater element • Gasket • Installation instructions / packaging as supplied by manufacturer
Confirm your RV water heater requires a 1000W, 120V screw-in element and has a minimum 8" tank diameter. Check the 6-1/4" element length, 1-1/4" threaded portion diameter, screw-in mounting style, gasket requirement, and water heater manufacturer specifications before ordering.
Turn off electrical power to the water heater before service. Drain the tank and relieve pressure before removing the old element. After installation, refill the tank completely and purge air from the water system before restoring electric power to avoid dry-firing the new element.
The Camco 02103 is a 1000W, 120V screw-in high watt density RV water heater element with nickel-plated copper tubing, magnesium oxide construction, gasket included, 6-1/4" element length, 1-1/4" threaded portion diameter, and minimum 8" tank diameter requirement. Verify wattage, voltage, mounting style, tank clearance, element length, threaded portion size, gasket sealing surface, and water heater manufacturer specifications before ordering.
