Signature Series ultra-low profile rooftop AC — 15,000 BTU, textured black finish. The lowest aerodynamic rooftop profile in the industry at just 8.25" tall. Dual-motor design, industry-exclusive fiberglass basepan, standard gravity condensate drain.

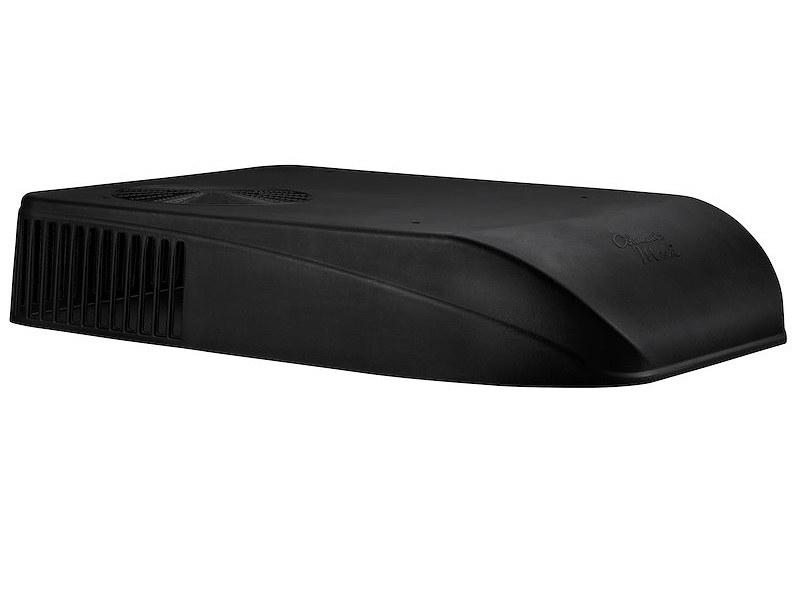

The Coleman Mach 8 Plus 37204-079 is the black-finish, standard-drain variant of Coleman Mach's flagship ultra-low profile rooftop air conditioner. At just 8.25 inches tall, it holds the industry record for the lowest aerodynamic rooftop profile — reducing highway wind drag, clearing low overhangs and covered storage structures, and keeping a sleek, low-slung roofline on any RV. Despite its compact height, the Mach 8 Plus 37204-079 delivers a full 15,000 BTU of cooling — the maximum output available in the Mach 8 Plus A/C lineup.
Built around an industry-exclusive fiberglass basepan that delivers superior structural strength at lower weight than metal alternatives, the Mach 8 Plus is engineered to outlast and outperform all competitive ultra-low profile units. A dual-motor system provides maximum high-speed cooling power for the hottest days and near-silent low-speed operation for undisturbed nighttime cooling. The durable textured black exterior shroud is a natural fit for dark-trimmed or black-roofed RVs and resists UV fading and surface wear through years of road exposure.
Industry's lowest aerodynamic rooftop height — clears obstacles that stop medium and low-profile units and reduces wind drag at highway speeds
Maximum cooling capacity in the Mach 8 Plus A/C lineup — powerful, fast cooling in the smallest possible rooftop footprint
Two dedicated motors — maximum high-speed cooling output and ultra-quiet low-speed operation for comfortable nighttime use without disrupting sleep
Industry-exclusive fiberglass construction delivers exceptional structural strength and corrosion resistance at lower weight than metal alternatives
If you are switching from a different brand of rooftop air conditioner or performing a first-time installation, a Coleman Mach ceiling assembly is required and sold separately. For this Ultra-Low Profile (37xxx) unit, use only Coleman Mach Ultra-Low Profile compatible ceiling assemblies. The ceiling assembly provides the interior grille, air distribution, return air path, and wiring connections to complete the system. Verify ceiling assembly compatibility before ordering if replacing an existing Coleman Mach unit.
The Mach 8 Plus 37204-079 is heat-ready. Add the Coleman Mach Ultra-Low Profile Electric Heat Kit (part 37203-4551, sold separately) to gain 6,000 BTU of electric heat — more than the 5,600 BTU available on medium and low-profile units, owing to the Mach 8 Plus's larger heat strip capacity. Important: Use only the Ultra-Low Profile heat kit (37203-4551) with this unit. The medium/low profile heat kit (38203-4551) is not compatible with 37xxx series units. Confirm your ceiling assembly is heat-ready before ordering the heat kit.
Note: Electrical amp and watt specifications (cooling amps, locked rotor amps, running watts) should be confirmed from the unit's nameplate or data sheet. The Mach 8 Plus line includes multiple electrical variants; verify against your specific unit's documentation before sizing wiring or generator capacity.
Before Installing: 1. Verify Roof Opening: Confirm a standard 14" × 14" vent cutout is present 2. Ceiling Assembly: For brand switches or new installs, order a compatible Coleman Mach Ultra-Low Profile (37xxx) ceiling assembly separately before beginning work 3. Prepare the Roof: Remove old unit, clean the opening, and inspect the roof deck for soft spots or damage 4. Set Gasket & Position Unit: Place the roof gasket over the opening and lower the unit from above 5. Secure & Seal: Fasten mounting bolts through the ceiling assembly from inside; apply RV roof sealant around the perimeter 6. Connect Wiring: Complete all electrical connections per the wiring diagram in the included installation manual 7. Test: Restore power and verify operation at all blower speeds Professional installation is recommended. Always disconnect shore power before beginning work.
In the Box: • Mach 8 Plus Rooftop AC Unit (37204-079) • Roof Gasket / Seal • Mounting Hardware • Installation Manual • Warranty Documentation NOT Included — Must Purchase Separately: • Coleman Mach Ultra-Low Profile Ceiling Assembly (required for brand switches or new installs) • Electric Heat Kit — part 37203-4551 (optional, 6,000 BTU) • Thermostat / Wall Control (if not already installed) • RV Roof Sealant
Coleman Mach Document Library: Installation manuals, wiring diagrams, parts lists, and spec sheets available at coleman-mach.com/document-library Technical Support: Coleman Mach / Airxcel Customer Service available through your authorized Coleman Mach dealer or service center Dealer & Service Center Locator: Use the Service Locator at coleman-mach.com to find the nearest authorized dealer or service center Warranty Information: 2-Year Limited Manufacturer's Warranty covering defects in materials and workmanship under normal use conditions. Extended warranty registration available at warranty.coleman-mach.com Note on Part Numbers: Part number 37204-079 is the current active manufacturer number for this unit. It supersedes legacy part number 47204-079. Both numbers refer to the same product. Verify current availability and supersession status with your dealer prior to ordering.
