Dayton 1XJX7 Blower Motor, 1009 CFM, 1070 RPM, 115V
Dayton 1XJX7 Blower Motor, 1009 CFM, 1070 RPM, 115V
Dayton Blower Motor, 1009 CFM, 1070 RPM, 115V



Price: $279.95
MFG P/N: 1XJX7
MFG: Dayton


Quantity in Stock :18

Availability: In Stock
Product Code: 20620
Qty:

DESCRIPTION

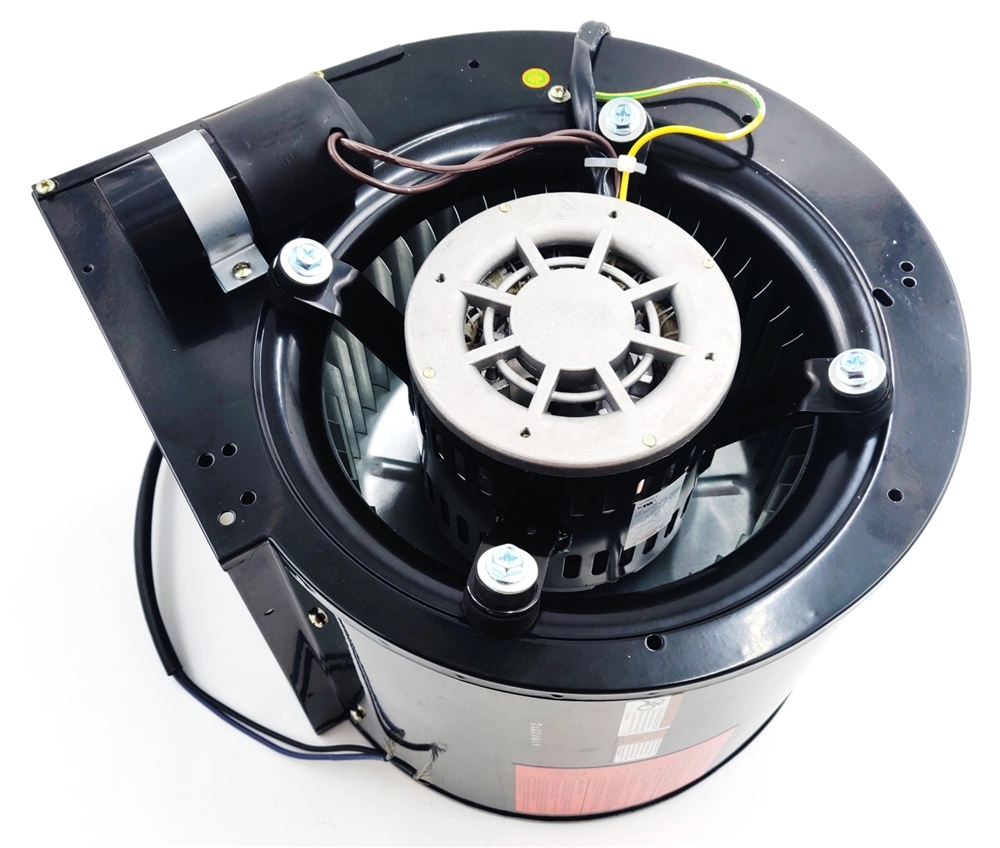

The Dayton 1XJX7 is a replacement blower motor. 1009 cubic ft per minute, 1070 RPM. 115 volts. Motor, housing and blower wheel are included. 9-7/16" wheel diameter. 1/6 horsepower.
  • CFM: 1009.
  • RPM: 1070.
  • Cycles: 60 Hz.
  • HP: 1/6.
  • Amps: 3.7A.
  • Volts: 115V.
  • Ball bearings.
  • Single speed.
  • Wheel Diameter: 9-3/8".
  • Shaft Diameter: 14mm.
  • Wheel Width: 7-1/8".
  • Inlet Diameter: 7-3/4".
  • Outlet Height: 7-3/4".
  • Outlet Width: 9-1/8".
  • Overall Height: 12-3/4".
  • Overall Width: 9-3/4".
  • Overall Depth: 12-1/2".
  • Housing Height: 12-3/4".
  • Housing Width: 9-3/4".
  • Housing Depth: 12-1/2".
  • Clockwise rotation.
  • Max Inlet Temperature: 104 degrees F.
  • Weight: 6 lbs.
  • Also known as NBK Parts 20620.
