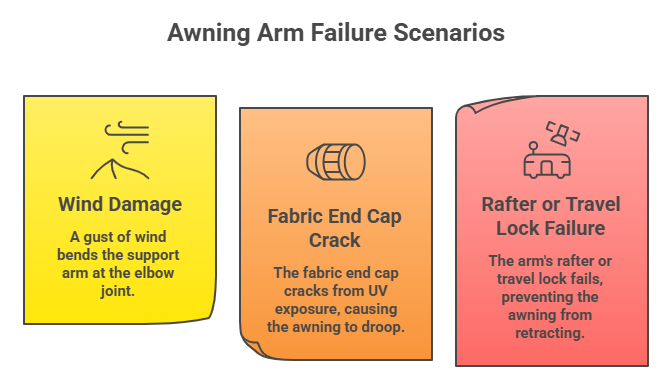

Awning arm failures have a habit of happening at the worst possible moments. I’ve heard the story dozens of times: an RV owner is set up at a beautiful campsite, awning extended, relaxing under the shade, and a gust of wind catches the awning and bends one of the support arms at the elbow joint. Or the arm’s fabric end cap cracks from years of UV exposure, and the awning starts drooping at one end. Or—the scenario that requires immediate action—the arm’s rafter or travel lock fails, and the awning won’t retract fully before departure.
Patio awning arms are the structural components that extend out from the RV wall and support the awning fabric at the correct angle and tension. They fold and unfold every time the awning is deployed and retracted, they flex in wind loading, and they live permanently attached to the exterior of the rig—exposed to UV, temperature cycling, and the mechanical vibration of highway travel. After enough cycles and enough exposure, the pivot points wear, the materials fatigue, and the arm needs replacement.
Carefree of Colorado is the dominant manufacturer in the RV patio awning market—their arms, hardware, and fabric are factory-installed on more RVs than any other brand. This roundup covers Carefree replacement arm sets and individual arm components for the most common Carefree awning models, so you can identify the right parts for your specific awning and get it back in service.
Best for: Owners of Carefree Compass, Longitude, or Altitude awning systems who need to replace a damaged or worn arm set with a complete OEM-specification replacement
The TAJVAP arm set is a complete replacement assembly for three of Carefree’s most widely installed patio awning models—the Compass, Longitude, and Altitude. These are some of the most common patio awnings in the travel trailer and fifth wheel market, which means this arm set covers a very large proportion of Carefree awning owners who need a replacement.
A complete arm set replacement is the right approach when both arms have reached the end of their service life simultaneously—which is the most common situation, since both arms experience the same usage, the same UV exposure, and the same mechanical cycling throughout the awning’s life. Replacing one arm while leaving a worn second arm in place means your awning is supported by mismatched hardware that provides unequal tension and support. The newer arm will compensate for the worn one, accelerating its own wear. A matched set ensures equal loading across both support points.
Carefree’s OEM replacement arm set uses the same materials, the same pivot geometry, and the same mounting hardware as the original installation. The fabric attachment points, the wall bracket mounts, and the overall extended dimensions are identical to what came off the RV. This matters because aftermarket arm alternatives that aren’t dimensionally identical to the Carefree OEM spec can alter the awning’s deployed tension and geometry—leading to fabric that’s either too tight (causing stress on the fabric and the cassette housing) or too loose (allowing pooling and wind flutter).
The white finish matches the standard Carefree hardware color that’s used across their residential-grade awning product line. If your rig has the original Carefree white arm hardware, this replacement maintains the color match that keeps your awning looking like factory-installed equipment rather than a patchwork of replacement parts.
Pro Tip: Before installing replacement awning arms, check the wall bracket mounting hardware—the bolts, backing plates, and seals that attach the arm’s pivot point to the RV wall. These mounting points take the full load of the awning in wind conditions and are often neglected during arm replacements. Corroded bolts, loose backing plates, or failed seals at the wall penetrations should be addressed at the same time as the arm replacement.
Buy the Carefree TAJVAP Replacement Awning Arm Set

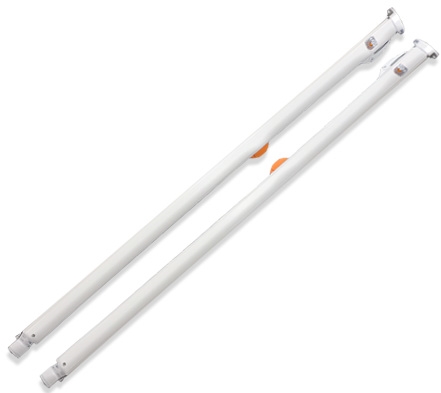

Best for: Owners of Carefree Fiesta awning systems needing a single long arm replacement, or for installations requiring the extended reach of the Fiesta long arm geometry
The Fiesta is one of Carefree’s long-running manual patio awning designs, and the long arm configuration is the version used on wider awning installations where the extended reach provides better fabric support across the full awning width. Individual arm replacement—rather than a complete set—is appropriate when one arm has been damaged in a specific incident while the other remains serviceable, or when the arms are at different wear stages due to one receiving more direct wind loading from the prevailing wind direction at your typical camping locations.
The Carefree Fiesta long arm is built to the same specification as the factory-installed hardware, with the anodized aluminum construction that provides the combination of lightweight and strength appropriate for an outdoor structural component. Aluminum doesn’t corrode in the way that steel does, which matters for a component that’s permanently exposed to the elements and that operates in the humid environments—coastal campgrounds, lakefront sites, rainy climates—that RVs frequently encounter.
The pivot elbow on the Fiesta arm is the component most susceptible to damage in a wind event. When a gust catches the awning at the wrong angle, the force transfers to the arm’s elbow joint—the folding point where the upper and lower sections of the arm connect. This joint can bend or crack under impact loads that exceed the arm’s design strength. If your arm shows a bent or cracked elbow but the fabric and cassette are undamaged, a single arm replacement like the 640016WHT is the cost-effective solution.
Always confirm the specific Fiesta model—standard versus long arm—before ordering. Carefree makes both configurations, and the dimensional differences between them affect how the fabric hangs and tensions. Installing a standard-length arm in a long-arm position will result in a drooped fabric edge that doesn’t clear the slide-out or step properly.
Pro Tip: When replacing a single awning arm, deploy and retract the awning several times after installation to verify that the new arm’s geometry matches the existing arm and that the fabric tensions evenly across the full width. Check that the awning retracts fully into the cassette without bunching on the new arm’s side—a sign that the arm dimensions are slightly off from the original.
Buy the Carefree Fiesta Long Awning Arm

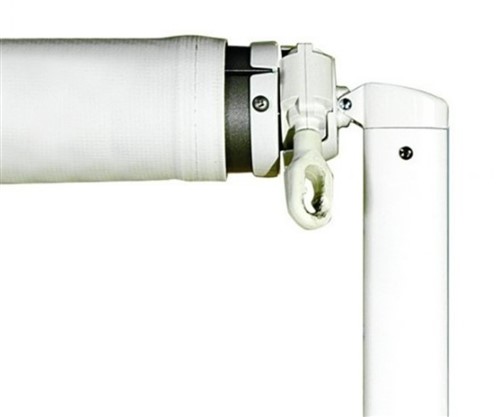

Best for: Owners of Carefree Pioneer awning systems requiring a long arm replacement for this specific Carefree model line
The Pioneer is another member of Carefree’s manual awning product family, with arm geometry and mounting hardware specific to the Pioneer model line. Like the Fiesta, the Pioneer long arm is the configuration for wider awning installations, and individual arm replacement is appropriate when one arm needs attention while the other remains serviceable.
The white finish—970516WHT—matches the standard Carefree hardware color across the Pioneer line. Arm replacement on a patio awning is visible from outside the RV, and maintaining the color match between the replacement arm and the existing hardware keeps the installation looking cohesive. A white arm replacing a white arm is invisible as a replacement; a mismatched arm is noticeable every time you look at your awning.
The Pioneer arm’s construction follows Carefree’s standard for manual awning arms: anodized aluminum extrusions, stainless steel fasteners at the pivot points, and nylon bushings in the elbow joint that allow smooth folding and unfolding over thousands of cycles. The bushing wear is a normal service item—as the bushings wear, the pivot develops play that causes the arm to feel loose during deployment and retraction. Replacement arms include new bushings and restore the smooth, controlled pivot action of the original installation.
Before ordering the Pioneer long arm, confirm your specific Pioneer model and the awning width to ensure the long arm configuration is correct for your installation. Carefree’s model number system identifies awning width and configuration, and providing your awning’s model number to us at the store is the fastest way to confirm you’re ordering the right arm.
Pro Tip: Lubricate the arm pivot points annually as part of your awning maintenance routine. Carefree recommends a light silicone spray at the elbow pivot and the wall bracket pivot. Regular lubrication prevents the metal-on-metal contact that accelerates bushing wear and causes the squeaking that develops in neglected awning arms. Five minutes of lubrication extends arm life by years.
Buy the Carefree Pioneer Long Awning Arm
Best for: Owners of Carefree Travel’r electric awning systems requiring a complete replacement arm set for the 12V motorized version
The Travel’r is Carefree’s electric patio awning system—the version that deploys and retracts at the push of a button rather than requiring manual operation. Electric awning arms have additional complexity compared to manual arms: they incorporate the motor drive mechanism, the limit switches that tell the motor when the awning is fully extended or fully retracted, and the wiring runs that deliver 12-volt power to the motor from the RV’s electrical system.
When an electric awning arm needs replacement, the process is more involved than swapping a manual arm because of the electrical components integrated into the assembly. The motor drive coupling, the limit switch contacts, and the wiring connections all need to be correctly transferred or reconnected during the replacement procedure. Carefree’s OEM replacement arm set includes the complete assembly with all electrical components pre-installed, which simplifies the replacement by eliminating the need to transfer individual components from the old arm.
Electric awning failures often present as the awning failing to deploy or retract fully—stopping short of the intended position, reversing unexpectedly, or not responding to the control switch. Before assuming an arm replacement is required, check the motor’s power supply, the limit switch operation, and the control switch function. A motor that’s receiving inadequate voltage from a weak battery or long wire run will behave as if the arm mechanism is faulty when the real problem is electrical. Confirm the electrical system is functioning correctly before committing to an arm replacement.
When the arm assembly is genuinely the issue—cracked or bent from physical damage, seized pivot points, or worn-out motor drive components—the complete OEM replacement set is the right approach. The OVJVAPHW set provides both arms pre-wired and pre-adjusted, restoring the electric awning’s full function with a complete replacement that doesn’t require sourcing individual components or adapting non-OEM parts.
Pro Tip: After installing replacement electric awning arms, run through the full deployment and retraction cycle several times before relying on the awning at a campsite. Verify that the awning extends fully and evenly, that the limit switches stop the motor at the correct positions, and that the fabric tensions correctly at full extension. Catching a misadjusted limit switch in the driveway is far better than discovering it when you’re trying to retract before departure.
Buy the Carefree Travel’r Electric Awning Arm Set
The most important step before ordering any Carefree replacement arm is confirming your specific awning model. Carefree makes multiple awning product lines—Compass, Longitude, Altitude, Fiesta, Pioneer, Travel’r, and others—with arms that are not interchangeable between models. Installing the wrong arm can result in incorrect fabric tension, incomplete retraction, or mounting hardware that doesn’t align with the existing wall brackets.
If you’re unable to locate the model label or confirm the correct part number from the information available, give us a call at the store. Carefree awning identification is something we help customers with regularly, and with the awning’s label information or your RV’s make, model, and year, we can usually identify the correct arm assembly in a few minutes.
A patio awning is one of the features that transforms an RV campsite from a parking spot into a livable outdoor space. When the arms are in good condition, the awning deploys smoothly, supports the fabric correctly, and retracts cleanly. When they’re worn or damaged, the awning becomes unreliable—and an unreliable awning that fails to retract before a storm or that deploys unevenly is a liability rather than a feature.
Carefree’s replacement arm hardware is the right solution for Carefree-equipped rigs. The OEM parts restore original performance in a way that generic alternatives don’t, and the identification work of confirming the right model and arm length pays off in an installation that works correctly from the first deployment. Take the time to identify your awning model accurately, order the right parts, and your awning will be back to reliable, smooth operation for another season.
Questions about identifying the right arm for your specific Carefree awning? Give us a call at the store—we’ll help you confirm the correct part number and get you the right hardware.
