A few years back, I helped a customer who’d just installed a 200-watt solar panel on the roof of his Class C and was frustrated that his batteries weren’t staying charged the way he expected. He’d done everything right—good panels, quality wiring, proper mounting—but he’d grabbed the cheapest charge controller he could find at a big box store, a basic unregulated unit that was essentially dumping raw panel output straight into his batteries. Within two months, one of his AGM batteries had been cooked by overcharging. The replacement battery cost him four times what a proper charge controller would have.

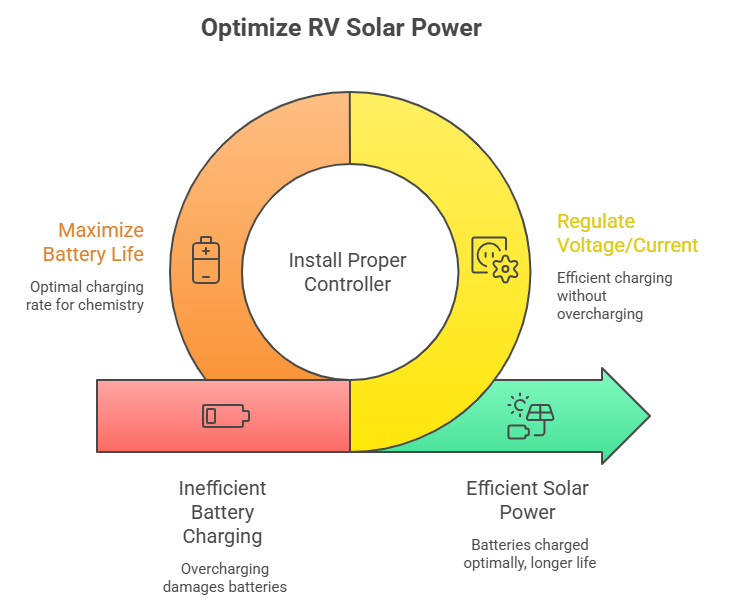

The solar charge controller is the brain of your RV’s solar power system. It sits between the panels and the battery bank and does one critical job: it regulates the voltage and current coming from the panels to charge your batteries efficiently without overcharging them. Without a proper controller, solar panels can push too much current into batteries, causing heat buildup, reduced capacity, and premature failure. With the right controller, your panels charge your batteries at the optimal rate for their chemistry and current state of charge, maximizing battery life and solar efficiency.
I’ve been helping RV owners design and upgrade their solar systems for over twenty years, and the charge controller conversation comes up constantly. This roundup covers the best options we carry at the RV Upgrade Store, from a capable solar-plus-controller combo kit that gets you generating power right away, to a dedicated controller for RV owners who want to maximize what their existing panels can deliver.
Best for: RV owners who want a complete, ready-to-use solar charging solution without buying components separately
The BatteryMINDer solar charger is the product I hand to customers who want to start benefiting from solar power without the time and complexity of designing a full system from scratch. It comes with both the solar panel and the integrated charge controller in one package, so you connect it, set it in the sun, and your batteries start charging. There’s no separate controller to source, no compatibility questions to sort through, no wiring diagram to interpret. It’s engineered to work together as a system from day one.
The 20-watt panel generates enough current to maintain and top up your RV’s battery bank during storage or periods of low use—exactly the scenario that kills more RV batteries than anything else. A battery that sits uncharged for weeks or months sulfates internally, losing capacity and eventually becoming unrecoverable. The BatteryMINDer’s trickle charging approach keeps the battery at an optimal state of charge continuously, without the overcharging risk that comes from plugging into shore power and leaving a basic charger connected indefinitely.
What I particularly appreciate about BatteryMINDer’s approach is its desulfation technology. Most charge controllers simply regulate voltage and current. BatteryMINDer’s controllers also apply a high-frequency pulse that breaks down the sulfation crystals that naturally form on battery plates over time. This desulfation process can actually restore some lost capacity to aging batteries, which is something a basic controller simply doesn’t do. For RV owners who store their rigs seasonally, this feature alone can extend battery life by years.
The 12V/24V compatibility means this unit works with either standard 12-volt RV battery systems or the less common 24-volt setups found in some larger motorhomes and diesel pushers. You don’t need to verify your system voltage before purchasing—the controller handles both automatically. That flexibility makes it a practical choice for RV owners who might upgrade their battery bank in the future without wanting to replace all their solar equipment at the same time.
Pro Tip: Position the panel where it gets unobstructed direct sunlight for the longest part of the day—typically a south-facing location in North America. Even partial shading from a roof vent, air conditioner, or antenna can significantly reduce output. A panel that’s 75% shaded produces far less than 75% of its rated output due to how solar cells are wired in series.
Buy the BatteryMINDer Solar Battery Charger
Best for: RV owners with an existing solar panel array who need a reliable, capable charge controller to regulate and optimize charging for their battery bank
Samlex America has built a strong reputation in the RV and marine power electronics market, and the SCC-30AB is a solid example of why. This is a dedicated 30-amp PWM (Pulse Width Modulation) charge controller designed specifically for regulating solar panel output into lead-acid battery banks—the most common battery chemistry in the RV market. At 30 amps, it’s rated to handle solar arrays up to approximately 400 watts on a 12-volt system, which covers the majority of RV solar installations from entry-level weekend rigs up to substantial boondocking setups.
PWM controllers work by rapidly switching the connection between the panel and the battery on and off, reducing the effective current in a controlled way as the battery approaches full charge. It’s a proven, time-tested technology that works reliably with standard lead-acid, AGM, and gel battery chemistries. The SCC-30AB implements a multi-stage charging algorithm—bulk, absorption, and float—that mirrors the ideal charging profile for these battery types. The bulk phase charges at maximum current until the battery reaches the absorption voltage. The absorption phase holds the voltage steady while the current tapers off. The float phase maintains the battery at a lower voltage to prevent self-discharge without overcharging. Each stage protects battery health in a specific way.
I recommend the Samlex controller, particularly for RV owners who have already invested in quality solar panels and want a controller that does justice to that investment. A cheap controller can negate the performance of expensive panels by failing to extract maximum power efficiently or by charging batteries suboptimally. The SCC-30AB’s engineering ensures that the current your panels generate is used to charge your batteries as effectively as possible, rather than being wasted as heat in an inefficient switching circuit.
The onboard LED indicators provide clear status information without requiring a separate monitoring device—you can tell at a glance whether the system is in bulk charging, absorption, float, or equalization mode. This kind of visibility is genuinely useful for diagnosing system behavior and understanding how your solar setup is performing across different weather conditions and seasons. The compact form factor makes installation straightforward in tight utility bays, and the unit operates quietly with no fan noise.
One practical consideration: the SCC-30AB is a PWM controller rather than an MPPT (Maximum Power Point Tracking) controller. For most RV applications with standard panel-to-battery voltage ratios, PWM performs excellently and costs significantly less than MPPT. If you’re running high-voltage panels with a 12-volt battery bank—or if you want the absolute maximum efficiency from your array—an MPPT controller captures more of your panels’ potential output. But for the vast majority of RV owners with standard 12-volt or 24-volt systems, PWM at this quality level is entirely appropriate and delivers excellent real-world performance.
Pro Tip: Always size your charge controller for at least 25% more capacity than your current panel wattage. If you have 200 watts of panels today, a 30-amp controller gives you room to add more panels later without replacing the controller. Solar systems tend to expand as owners discover how much they rely on the power, and building in headroom from the start saves you from a premature upgrade.
Buy the Samlex America 30 Amp Solar Charge Controller
Selecting the right charge controller comes down to understanding a few key variables: your battery chemistry, your panel array size, and how you plan to use your solar system.
Standard lead-acid, AGM, and gel batteries all use slightly different charging voltages, and a quality controller lets you select the appropriate profile for your battery type. Using the wrong charging profile accelerates wear—particularly in gel batteries, which are sensitive to high absorption voltages that AGM batteries handle without issue. Always verify that the controller you choose explicitly supports your battery chemistry before installing.
For a 12-volt system, divide your total panel wattage by 12 to get the maximum current your controller needs to handle. A 200-watt array generates a maximum of about 16.7 amps, comfortably within a 30-amp controller’s capacity. A 400-watt array generates up to 33 amps—right at the limit of a 30-amp controller, which means you’d want a larger unit or need to confirm the panels never exceed the controller’s rating under real-world conditions.
PWM controllers are simpler, less expensive, and perfectly effective for standard RV solar systems where the panel voltage is close to the battery voltage. MPPT controllers are more sophisticated and extract 10–30% more power from the same panels by tracking the panel’s maximum power point—the voltage/current combination that delivers peak output. MPPT is worth the premium when you’re running higher-voltage panels or a larger array where that extra efficiency makes a meaningful difference to your daily usable power. For smaller or entry-level systems, PWM is the practical choice.
If you don’t yet have solar panels installed, the BatteryMINDer combo kit removes the complexity of sourcing compatible components. When you’re ready to expand, you can add more panels and upgrade to a larger dedicated controller—but having the all-in-one kit gets you generating power immediately without the research burden of building a system piece by piece.
Solar charging is one of the best investments you can make in your RV’s power system—it reduces your dependence on shore power and generator runtime, extends your boondocking capability, and keeps your batteries in better condition between trips. But the solar panels themselves are only half the equation. A quality charge controller is what turns those panels into a safe, effective, battery-friendly charging system rather than a liability.
The customer I mentioned at the start of this guide replaced his cheap controller with a proper unit and never had another battery issue. The panel he already had worked perfectly fine—the problem was never the solar power itself, it was the unregulated path it was taking to get to his batteries. That’s the charge controller’s job: to make sure every watt your panels generate reaches your battery bank in exactly the right way, at exactly the right time.
Whether you’re just getting started with solar and want a complete, no-fuss combo kit, or you’re building out a more capable system and need a dedicated controller to match your panels, both products in this roundup represent genuine quality at a reasonable price. Either will serve you reliably for years—and your batteries will last longer because of it. If you have questions about which option fits your specific setup, give us a call at the store. Solar system sizing is something I help customers with regularly, and it’s a five-minute conversation that can save you real money and headaches down the road.
