The first time I watched a first-time RV owner try to hook up to campground power, I counted four separate mistakes in the first three minutes: they plugged in before checking the pedestal voltage, they used the wrong adapter, they didn’t understand why the breaker on the pedestal kept tripping, and they had no surge protector. Nothing went seriously wrong—they were fortunate—but any one of those four issues could have damaged their RV’s electrical system, and the last one still can on the next trip if it’s not addressed.
Shore power hookup is the first thing you do at almost every campsite, and it’s also the step where the most mistakes happen. The process isn’t complicated once you understand it, but it involves a few specific things that need to happen in the right order with the right equipment. Get them right, and you have reliable power for the duration of your stay. Get them wrong, and you either have a tripped breaker within minutes or—in the worst case—damaged appliances and control boards that cost hundreds of dollars to repair.
This guide covers the complete shore power hookup process for 30-amp and 50-amp RV systems, the equipment you need, and the steps that protect both you and your RV every time you connect.
Before you can hook up shore power correctly, you need to know what system your RV uses.
Your power cord—the cable that exits your RV and connects to the pedestal—tells you which system you have. A 30-amp TT-30 plug looks similar to a heavy-duty dryer cord. A 50-amp SS2-50 plug is larger and heavier, with four prongs. Know which one you have before you arrive at a campsite so you can confirm the pedestal has the right service available.
Three pieces of equipment make every hookup safe, flexible, and reliable:
The Glendinning Cablemaster is the premium solution to one of the practical inconveniences of 50-amp RV ownership: managing a heavy, 36-foot shore power cord. A 50-amp cord is substantially heavier and stiffer than a 30-amp cord, and coiling and storing it after each move is a time-consuming task that also puts wear on the cord’s insulation at the bend points.
The Cablemaster is a motorized retractable reel that stores your shore power cord automatically with the push of a button. Deploy the cord when you arrive, connect to the pedestal, and when you’re ready to leave, the reel retracts the cord in a smooth, even coil that doesn’t create the tight bends that manual coiling produces. The motorized retraction takes approximately thirty seconds and requires no physical effort—a meaningful difference when you’re disconnecting in the rain or in a hurry to make a departure window.
The 36-foot reach covers the vast majority of campsite configurations where the pedestal is within a reasonable distance of the RV’s power inlet. The 50-amp rating matches the full capacity of a 50-amp RV system, so there’s no derating or current limitation from using the Cablemaster versus a standard cord.
Pro Tip: When installing the Cablemaster, mount it at a height and position that allows the cord to unwind and travel to the pedestal without sharp bends or kinks at the outlet point. The cord should exit the reel in a relatively straight line toward the pedestal location, not at a sharp angle that creates a bend immediately at the reel exit.
Buy the Glendinning Cablemaster 50A Motorized Cable System
The Marinco detachable power conversion kit is a quality solution for 30-amp RV owners who want a more organized, versatile shore power connection than a standard fixed-cord arrangement provides. The detachable design allows you to store the cord and connector end separately, reducing wear on the cord’s connection hardware from the repeated plugging and unplugging that happens at every campsite.
Marinco’s connector quality reflects their marine heritage—the connection hardware is built for the corrosion exposure, mechanical cycling, and weather conditions that outdoor power connections experience. The 30-amp TT-30 standard connection is the most common for travel trailers and Class C motorhomes, and the Marinco kit’s quality ensures that the connection remains secure and leak-free through years of regular use.
The conversion kit format is also useful for RV owners who want a spare cord end for backup, or who want to upgrade an existing cord’s connector hardware without replacing the entire cord. Cord replacement is expensive; connector hardware replacement is a fraction of the cost and addresses the part most likely to wear or develop connection issues.
Pro Tip: Inspect the connector pins and housing on both your RV cord and the campground pedestal before connecting. Bent pins, cracked housings, or visible corrosion at the contact surfaces are signs of hardware that shouldn’t be used until repaired or replaced. A damaged connector that arcs during connection can damage the pedestal’s internal components as well as your own cord.
Buy the Marinco 30 Amp Detachable Power Conversion Kit

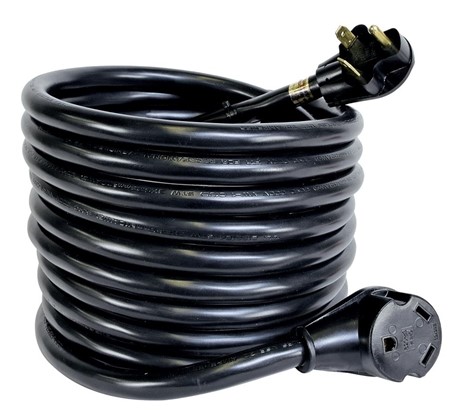

The Arcon generator power cord is a 25-foot extension cord rated for the current demands of RV power systems, designed specifically for connecting your RV to a portable generator or to a campsite pedestal where additional reach is needed. Generator use is common in camping situations where shore power isn’t available—at dry campgrounds, at dispersed camping sites, or as backup power when the campground’s electrical system is overloaded or fails.
The 25-foot length provides reach for generator placement at a practical distance from the RV—close enough for the cord to reach but far enough that the generator’s exhaust doesn’t concentrate near the RV’s entry door or windows. Generator exhaust contains carbon monoxide, and maintaining distance between the generator and the RV’s openings is a critical safety requirement, not a preference.
The cord’s rating for RV power system current means it’s built with the correct wire gauge for the amperage involved—undersized extension cords used with RV loads generate heat in the cord that degrades the insulation over time and creates a fire hazard. The Arcon cord’s appropriate sizing ensures it handles the load without thermal stress.
Pro Tip: Never run a generator inside an enclosed space—not in an awning room, not in a screen enclosure, not in a garage area under the RV. Carbon monoxide from generator exhaust is colorless, odorless, and lethal. Always position the generator outdoors with the exhaust directed away from all RV openings, and install a battery-operated CO detector inside the RV as an additional safety layer.
Buy the Arcon Generator RV Power Cord

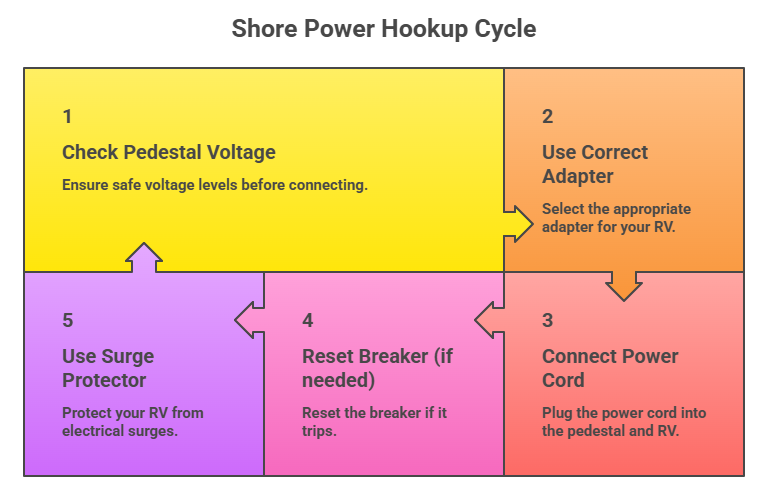

Look at the pedestal’s breaker status—is the breaker in the on position? Are there any visible signs of damage or burning around the outlet? If you have a surge protector with a voltage display, use it to check the pedestal voltage before connecting your RV’s main cord.
Before connecting to shore power, switch off your RV’s main breaker or disconnect switch. This prevents a surge when the connection is made and protects sensitive electronics from the brief voltage spike that occurs at connection.
Plug your surge protector or EMS into the pedestal outlet. Allow it to verify that the pedestal’s power quality is acceptable—most units take 30 to 120 seconds to complete their initial power check and indicate readiness to connect.
Once the surge protector indicates acceptable power quality, connect your RV’s shore power cord to the surge protector’s output. Ensure the connection is fully seated and locked before proceeding.
With the physical connections made and verified, turn on your RV’s main breaker. Power should be live to your RV’s distribution panel.
On 30-amp service, don’t run your air conditioner and microwave simultaneously. On 50-amp service, you have more headroom but still need to respect the pedestal’s actual capacity. If you’re running two air conditioners and notice lights dimming when the microwave starts, the pedestal is struggling with the load.
Campground pedestals don’t always offer the service type your RV needs. This is where your adapter kit becomes essential.
Disconnection is the reverse of connection, and the order matters as much as during hookup.
Never pull a cord out of an outlet by the cord itself—always grip the plug housing. Pulling by the cord stresses the internal wire connections at the plug end and is the primary cause of cord failure at the most inconvenient point.
Shore power hookup is a five-minute routine once you’ve done it a few times and have the right equipment in place. The surge protector is non-negotiable—install it in your hookup routine permanently and never connect to a campground pedestal without it. The adapters give you the flexibility to use whatever service the campground offers. The cord management system makes the physical handling of heavy 50-amp cords practical and extends cord life by eliminating the wear that manual coiling causes.
Get the process right, do it in the right order, and shore power hookup becomes one of the fastest and most routine parts of setting up at a new campsite. The investment in the right equipment pays for itself the first time your surge protector detects a pedestal problem and keeps your RV disconnected until it clears.
Questions about equipment sizing or adapter selection for your specific RV system? Give us a call at the store—we’ll help you put together the right kit for your setup.
