A generator that shuts off when you need it most is a specific kind of miserable. You're boondocking in the desert, the temperature is climbing, you're running the AC through the generator, and somewhere around the 45-minute mark, the generator decides it's done and cuts out. You reset it, it runs for another 30 minutes, and shuts off again. The AC compressor restarts and stops. The interior temperature climbs while you stand outside trying to figure out what the machine is trying to tell you.
Onan generators are the dominant brand in the built-in RV generator market for good reason — they're robust, they have an enormous installed base, and their diagnostic fault code system actually gives you information about what's going wrong rather than just shutting down silently. But even well-maintained Onan units have components that wear on a schedule, and when a generator starts shutting off unexpectedly, the cause is almost always one of a handful of maintenance-deferred parts.
This guide covers the five Onan replacement parts that address the most common reasons a built-in generator shuts off unexpectedly. Understanding what each part does, how it fails, and what symptoms it produces when failing is the fastest path from a shut-off generator back to a running one. All five parts are available through the RV Upgrade Store.

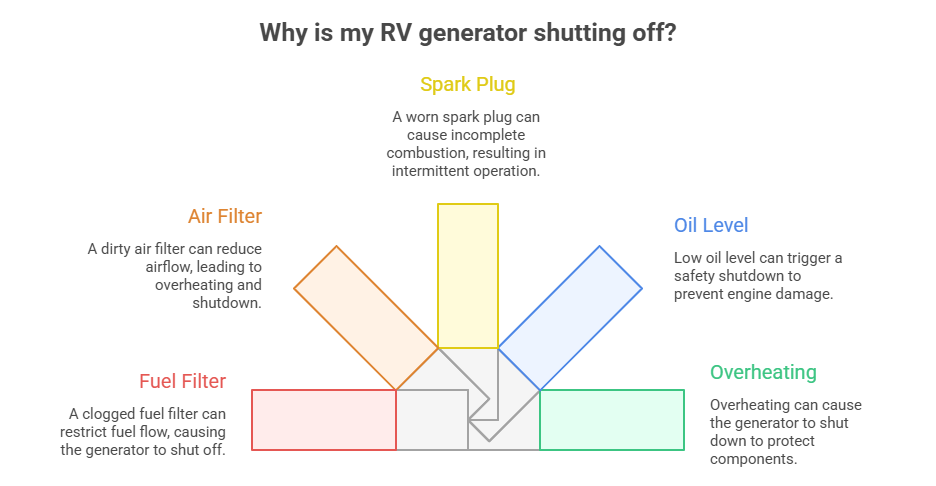

Before going through the specific parts, it helps to understand the failure categories that cause unexpected shutdowns. Onan generators shut off for three broad reasons: fuel starvation, overheating, and load or electrical problems.
Fuel starvation is the most common category. The generator isn't getting consistent fuel delivery, either because the fuel filter is clogged and restricting flow, because the carburetor is gummed from stale fuel, or because the fuel pickup is drawing from the very bottom of the tank where sediment and water accumulate. Fuel starvation shutdowns typically present as the generator running fine under light load but shutting off when load increases — the moment fuel demand goes up, the restricted delivery can't keep pace.
Overheating shutdowns happen when the generator runs hot enough to trigger its thermal protection. The most common cause is a clogged air filter that restricts combustion air and causes the engine to run inefficiently. An oil that's overdue for a change, or an oil level that's low from burning or leaking, also causes thermal shutdowns. Overheating shutdowns typically present as the generator running fine when cool but shutting off after extended operation, often in hot ambient conditions.
Load and electrical problems are the third category: overload, low oil pressure from oil that's too thin in high heat, and worn spark plugs that cause misfires under load. Each of these produces a distinct shutdown pattern, and the Onan fault code system — a series of flashes on the fault indicator light — provides a diagnostic shortcut to identifying which category you're dealing with.
Fixes: Fuel starvation shutdowns, particularly under increased load, caused by a clogged or restricted fuel filter, reducing fuel delivery
The fuel filter is the simplest and cheapest component on this list, and it's the first thing I change on any generator that presents with intermittent shutdowns — not because it's always the cause, but because it's so inexpensive and quick to replace that eliminating it as a variable costs almost nothing. A clogged fuel filter doesn't fail suddenly; it restricts gradually as the filter medium accumulates contaminants from the fuel supply, until one day the generator can't maintain combustion under full load and shuts off.
Onan recommends fuel filter replacement every 100 to 200 hours of operation, and most RV owners are significantly behind that interval. If you've been running your generator for two or three seasons and haven't replaced the filter, it's overdue regardless of whether you're experiencing problems — clogged filters cause premature carburetor wear and can pull sediment through into the fuel system if the filter medium breaks down under pressure.
This Onan filter fits the MicroLite and Quiet KY series — the compact generators found in slide-in truck campers, small travel trailers, and van conversions. The replacement is straightforward: locate the filter in the fuel line between the tank and the carburetor, clamp the line on both sides of the filter with small fuel line clamps to minimize spill, swap the filter, and release the clamps. The entire job takes under 15 minutes.
A solo traveler I know had been dealing with a generator that would run for 45 minutes and shut off in the afternoon heat for two consecutive summers. She'd attributed it to overheating. The actual cause, discovered on the third summer when I finally talked her through a fuel system check, was a fuel filter that was so restricted it couldn't support a full AC load. New filter, problem gone completely.
Fixes: Overheating shutdowns and poor power output caused by restricted air intake, reducing combustion efficiency
Onan generators pull combustion air through a paper element filter, and that filter accumulates dust, pollen, insects, and general campground particulate matter at a rate that varies dramatically by environment. A generator that camps regularly in dusty desert conditions or near fire rings needs its air filter checked every 25 to 50 hours of operation. A generator that rarely runs in clean conditions might go a full season without the filter becoming restrictive.
A clogged air filter causes two problems simultaneously: the engine runs lean because it's getting insufficient air relative to fuel, which produces excess heat and reduces power output; and the engine control system responds to the lean condition by enriching the fuel mixture, which increases fuel consumption and deposits carbon on the spark plugs and in the combustion chamber. By the time a severely clogged air filter causes a shutdown, the engine has been running in a suboptimal condition for some time.
The Onan 140-0495 fits the BF, BG, and NH generator series — the older Onan platform found in many Class A motorhomes and older fifth wheels. These generators have enormous installed bases and are still running reliably in rigs from the 1990s and early 2000s with proper maintenance. The air filter is one of the three items — along with the oil and spark plugs — that should be replaced on a strict schedule regardless of appearance, because by the time a paper filter looks obviously dirty, it has already been restricting airflow for some time.
Fixes: Misfires under load, rough running, and load-triggered shutdowns caused by fouled or worn spark plugs that fail to fire consistently
Spark plugs in an RV generator endure conditions that automotive plugs rarely see: extended continuous operation at high load, fuel quality variability from rural and off-brand sources, extended storage periods with fuel sitting in the combustion chamber, and oil contamination from engines that burn small amounts of oil during break-in or from age. Each of these conditions fouls plugs and degrades spark quality.
A generator with fouled or worn plugs typically presents with a specific shutdown pattern: it starts and runs fine at idle and light load, but when you turn on the AC or add significant load, the misfires multiply under the higher combustion pressure, and the engine control system interprets the roughness as a problem and shuts down. This is often misdiagnosed as an overload condition — the owner assumes the generator is too small for the load — when the actual cause is spark plugs that are failing to fire reliably under pressure.
The Onan 167-0275 fits the MicroQuiet 3600 and 4000 series, which are among the most common built-in generators in newer Class A motorhomes and larger fifth wheels. Onan recommends spark plug replacement every 150 hours of operation or annually, whichever comes first. For a generator that sees regular use, that interval arrives faster than most owners expect. Keep a spare set in the rig — they're small, light, and inexpensive, and a plug change takes 15 minutes if you have the right socket.
A motorhome owner in New Mexico had been convinced for two summers that his 4,000-watt generator was too small to run his single rooftop AC unit. He'd been told by a service advisor to upgrade to a larger unit. Before he spent the money, he described the failure symptoms to me: runs fine for 20 minutes, shuts off when the AC compressor kicks in on its second cycle. Classic spark plug behavior under compression load. New plugs. Generator ran his AC reliably for the rest of that trip and the following season without a single shutdown.
Fixes: Thermal and low-oil-pressure shutdowns caused by degraded, contaminated, or low-viscosity oil that no longer provides adequate lubrication and cooling at operating temperature
Generator oil maintenance is more critical than automotive oil maintenance, and the reason is the load profile. A car engine idles at traffic lights, cruises at partial load on the highway, and only occasionally sees sustained high load. A generator running an RV air conditioner runs at 70 to 90 percent of the rated load, continuously, for hours at a time. That sustained high load creates significantly more heat and oil shear than typical automotive use, which means oil degrades faster and needs to be changed more frequently.
Onan recommends oil changes every 150 hours of operation or annually on most MicroQuiet models. Most RV owners are running significantly beyond that interval, and the consequences are real: oil that's past its service life loses viscosity at high temperatures, which increases bearing wear and reduces the oil film between moving metal surfaces. Low-viscosity hot oil triggers the generator's oil pressure sensor, which shuts the unit down to prevent engine damage — exactly the mysterious high-ambient-temperature shutdown that frustrates owners who can't reproduce it when the engine is cool.
OnaMax 15W-40 is the oil Onan specifies for most of their generator engines — using the manufacturer's specified oil matters because the viscosity grade is chosen to maintain adequate film thickness at the operating temperatures Onan generators reach. Using a thinner oil or a high-temperature automotive blend can seem fine at low ambient temperatures, but fails to maintain adequate pressure on a 100-degree day when the generator has been running for two hours.
Always check the oil level before every extended generator run — not just every trip, but every time you plan to run the generator for more than an hour. Low oil is the most preventable cause of generator damage, and the generator's low-oil shutdown is designed to prevent catastrophic engine failure, not to prevent damage entirely. By the time the low-oil sensor trips, wear has already occurred.
Fixes: Exhaust backpressure problems and exhaust leaks that cause shutdown or poor performance by disrupting the generator's back-pressure specifications
The exhaust downtube adapter is the component that directs exhaust gases from the generator's exhaust port to the exit point on the chassis or skirt. It doesn't look like a performance part, and it isn't — until it fails. A cracked, rotted, or improperly connected exhaust downtube causes two distinct problems: exhaust backpressure disrupts the generator's air management and can cause shutdown under load, and exhaust leaks allow carbon monoxide to enter the living space from below, which is a safety issue that supersedes any discussion of performance.
Exhaust system components on built-in generators are exposed to road spray, road salt, thermal cycling, and the vibration of travel. The rubber boot sections that join the metal components degrade over time, and the metal adapter itself corrodes in humid and coastal environments. Exhaust leaks from degraded connections produce a noticeable exhaust smell from outside the rig and sometimes from inside, particularly at the floor level, where gaps in the coach floor allow exhaust gases to migrate upward.
If you smell exhaust from inside your RV when the generator is running, inspect the exhaust system before running the generator again. Any exhaust leak is a carbon monoxide risk, and carbon monoxide poisoning can occur gradually and without obvious warning in an enclosed living space. The downtube adapter replacement is a straightforward mechanical job — remove the old component, transfer any reusable clamps to the new part, install and seal the connections — but the safety stakes make it a priority repair.
One of the most useful features on Onan MicroQuiet generators is the fault code system. When the generator shuts down unexpectedly, the control board stores a fault code that indicates the reason. You can read the code by observing the pattern of flashes from the fault indicator light on the generator or control panel after a shutdown. The codes are documented in the operator's manual, but the most common ones are worth memorizing.
A 3-flash code indicates low oil pressure — check oil level and condition immediately. A 2-flash code indicates overload — you're asking more watts than the generator is rated for, or a failing component is drawing excess current. A 4-flash code indicates high engine temperature — check for air filter restriction, oil level, and adequate ventilation around the generator compartment. A 1-flash code indicates an overcrank condition — the generator tried to start and failed multiple times, often from a fuel delivery problem.
Writing down the fault code before resetting and restarting the generator is important — the code clears when you attempt a restart, and the pattern that told you exactly what failed disappears. The 30 seconds it takes to count flashes and write down the code can save hours of diagnostic time.
The pattern I see repeatedly in generator service is deferred maintenance followed by cascading failure. An owner skips the 150-hour oil change once, then twice, then the generator starts shutting off, and they replace the spark plugs — which were overdue — but the real problem was also degraded oil that caused bearing wear, and now the generator has two problems where it had one. The most efficient and least expensive approach is strict maintenance intervals.
An RV generator that shuts off unexpectedly is almost always telling you something specific, and the Onan fault code system gives you more diagnostic information than most appliances in your rig. The five parts in this roundup — fuel filter, air filter, spark plugs, OnaMax oil, and exhaust downtube — address the most common causes of those shutdowns, and together they represent a complete maintenance overhaul for a generator that's been running beyond its service intervals.
Work through the diagnostic sequence, read the fault codes, and address the most likely cause first. Keep spare filters and plugs on board — they're small, lightweight, and the difference between a generator problem that resolves in 20 minutes at a campsite and one that ends a trip early. Your generator is the power system that makes everything else in your rig work when shore power isn't available. Give it the maintenance it needs, and it will give you the reliable power you depend on.
