700 lb capacity for lawn mowers, garden tractors, small ATVs. 71.5" x 9.25" rails. 60" center-folding ramps included. Spring tension. Reversible. 174 lbs. Made in USA.
The VersaHaul VH-LG RO is a heavy-duty lawn and garden carrier designed for hauling lawn mowers, garden tractors, and garden supplies. This carrier is especially great for landscaping professionals or homeowners who need to transport equipment. With a 700 lb capacity and two wide 71.5" x 9.25" carrier rails, the VH-LG RO accommodates larger equipment including lawn mowers, garden tractors, and small ATVs.

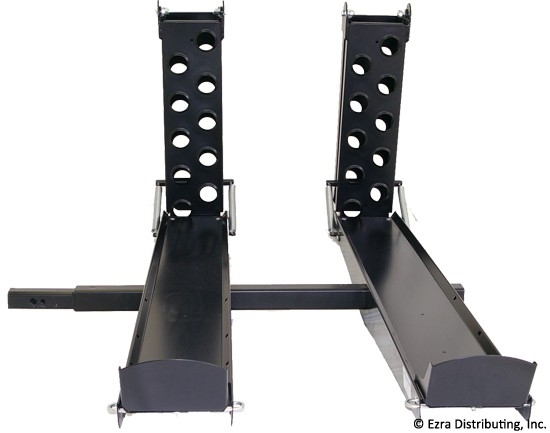

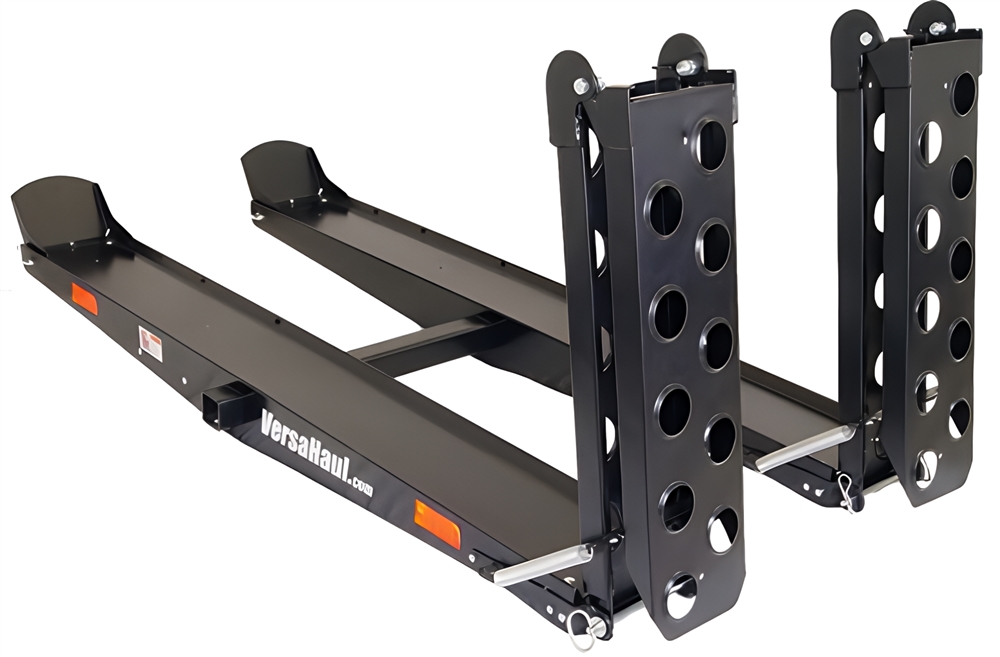

The carrier includes two 60" center-folding ramps with spring tension that easily fold into an upright position when not in use. The reversible rails allow loading access from either side of the carrier, and the distance between the rails and bumper is adjustable. The VH-LG RO includes anti-tilt lock bracket, 50" main tube, 2 wheel stops, 2 carrier rails, 2 center-folding ramps with spring brackets, hinge brackets, hinge pins, and springs. Weighing 174 lbs (118 lbs without ramps) with powder coat finish, the VH-LG RO is made in the USA and protected by US Patents (US D523,389 S, 20070052206).
Hitch Requirements: • Class III Hitch: Typically rated for 500 lbs tongue weight • Class IV Hitch: Typically rated for 1,000 lbs tongue weight • Receiver Size: Standard 2" receiver Vehicle Requirements: • Always verify your vehicle's tongue weight rating and payload capacity • Total tongue weight = VH-LG RO (174 lbs) + equipment (up to 700 lbs) = up to 874 lbs Hitch Limitations: • Most Class III hitches: 500 lbs tongue weight - limits equipment to approximately 326 lbs (500 - 174) • Most Class IV hitches: 1,000 lbs tongue weight - adequate for full 700 lb capacity Suitable For: Trucks, SUVs, and vehicles with Class IV hitches for full capacity

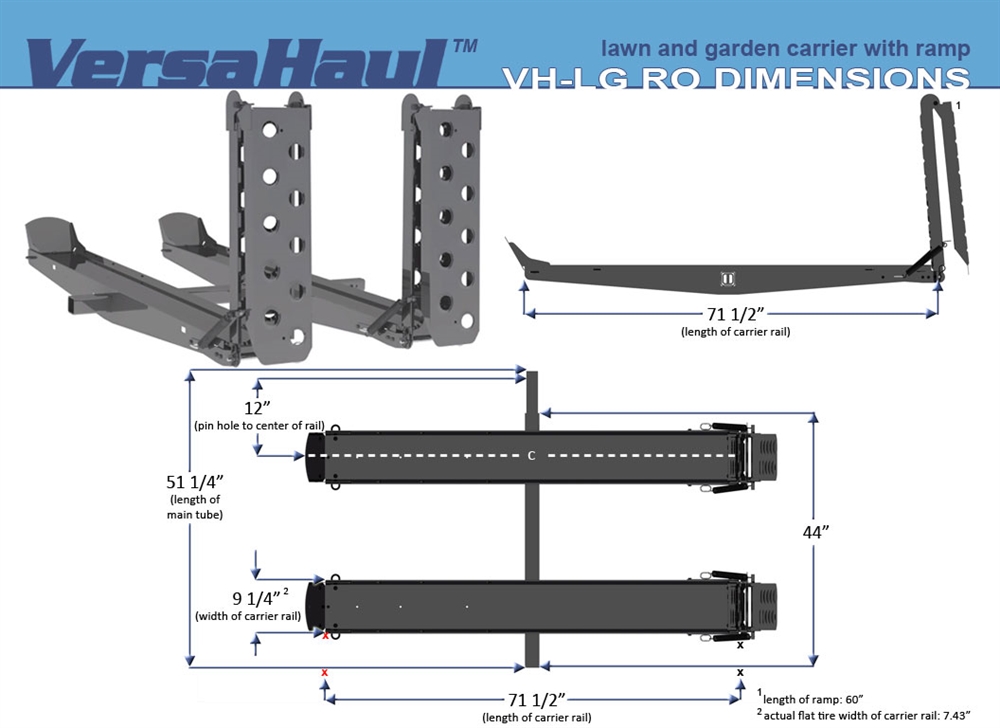

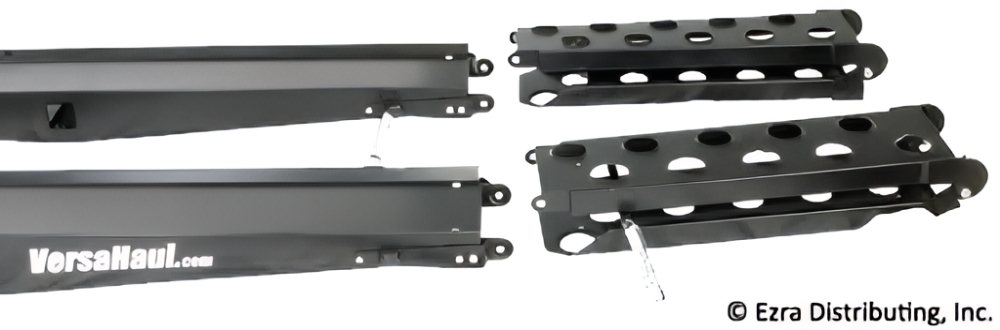

This Complete System Includes: • (1) Anti-Tilt Lock Bracket • (1) 50" Main Tube • (2) Carrier Rails (71.5" x 9.25") • (2) Wheel Stops • (2) Center-Folding Ramps (60") • (2) Spring Brackets • (2) Hinge Brackets • (2) Hinge Pins • (4) Springs • Installation Instructions Carrier Specifications: • Model: VH-LG RO • Weight: 174 lbs (with ramps), 118 lbs (without ramps) • Capacity: 700 lbs • Rails: 71.5" x 9.25" • Main Tube: 50"

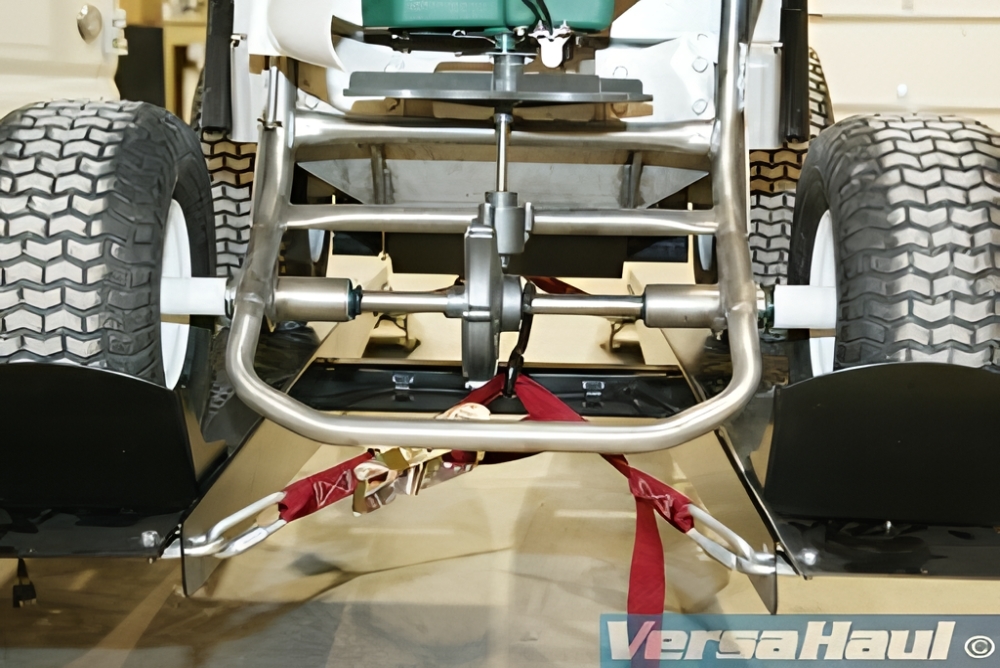

Download the VersaHaul VH-LG Lawn And Garden Carrier Instruction ManualPre-Installation Requirements: 1. Verify equipment weighs 700 lbs or less 2. Check vehicle tongue weight rating (must handle 874 lbs minimum) 3. Verify ground clearance for ramp deployment 4. Review complete VH-LG instruction booklet Installation Overview: Connect 50" main tube to two carrier rails (71.5" x 9.25" each). Install anti-tilt lock bracket. Position wheel stops on carrier rails. Attach spring brackets, hinge brackets, and hinge pins. Install center-folding ramps with springs. Insert assembled carrier into 2" hitch receiver and secure with hitch pin. Two-person installation recommended due to 174 lb weight. Reversible Rails Feature: Rails can be reversed for loading from either driver or passenger side. Configure for best access. Distance between rails and bumper is adjustable. Loading Your Equipment: 1. Deploy 60" center-folding ramps 2. Ensure ramps are stable and secure 3. Slowly drive or roll equipment up ramps onto carrier rails 4. Position equipment between wheel stops 5. Secure equipment with tie-down straps to carrier 6. Fold ramps into upright position (spring tension holds them) 7. Verify equipment stability Driving with Loaded Carrier: • Accelerate gradually - 874 lbs tongue weight affects handling • Brake earlier - stopping distance increases • Turn carefully - wider turns required • Watch ground clearance - avoid steep driveways, speed bumps • Monitor constantly - check equipment remains secured Important Safety Notes: • DO NOT exceed 700 lbs capacity • ALWAYS use tie-down straps to secure equipment • NEVER exceed vehicle's tongue weight rating • Use spring tension to fold ramps into upright position
