600 lb capacity for sport bikes. 77.5" x 7.875" rail. Wide tires. Reversible. Towing capable (3,000 lb). Ramp not included. 89 lbs. Made in USA.

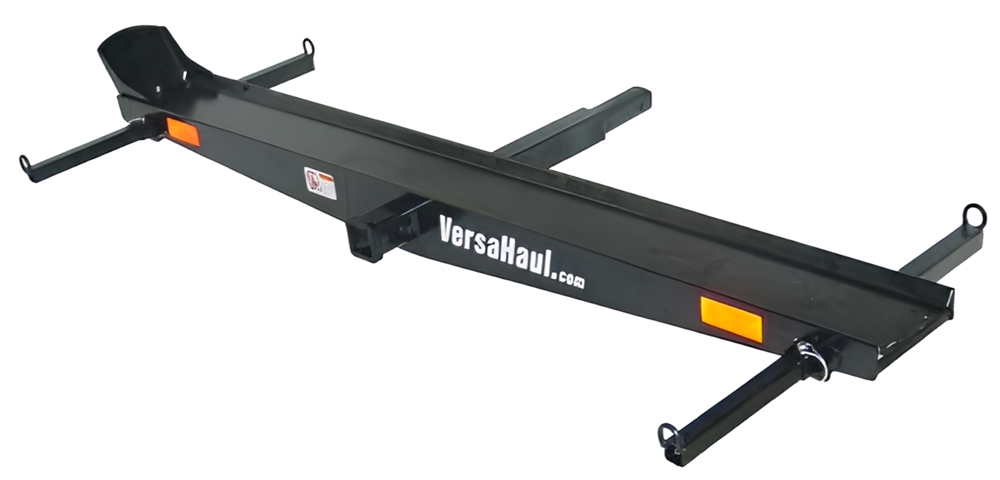

The VersaHaul VH-SPORT is a sport motorcycle carrier designed specifically for sport bikes and motorcycles with wide tires. This heavy-duty single-track carrier features a 77.5" x 7.875" carrier rail that provides a stable platform for sport motorcycles up to 600 lbs capacity. The wider 7.875" rail accommodates wide sport bike tires that may not fit on standard carriers.
The VH-SPORT features reversible rails for loading from either side of the vehicle, adjustable tie-down bars for custom bike fit and easy storage, and a movable wheel stop for perfect positioning. The carrier includes a 24" main tube, anti-tilt lock bracket to eliminate wobble, 4 retractable tie-down bars, and an integrated Class III tow receiver for light-duty towing (3,000 lbs maximum). **Important: This carrier does NOT include ramps - ramps must be purchased separately (VH-SPORT RK ramp kit recommended).** Weighing 89 lbs with powder coat finish, the VH-SPORT is made in the USA and protected by US Patents (US D554,041 S, 20070052206).
Hitch Requirements: • Class III Hitch: Typically rated for 500 lbs tongue weight • Class IV Hitch: Typically rated for 1,000 lbs tongue weight • Receiver Size: Standard 2" receiver Vehicle Requirements: • Always verify your vehicle's tongue weight rating and payload capacity • Total tongue weight = VH-SPORT (89 lbs) + motorcycle (up to 600 lbs) = up to 689 lbs Towing Capability: • Integrated Class III receiver for light-duty towing • Maximum towing weight: 3,000 lbs (light trailers only) • Calculate total tongue weight: carrier + motorcycle + trailer tongue weight
This Complete System Includes: • (1) Anti-Tilt Lock Bracket • (1) 24" Main Tube • (4) Retractable Tie-Down Bars • (1) Carrier Track (77.5" x 7.875") • (1) Wheel Stop • (2) Reflectors • Installation Instructions Carrier Specifications: • Model: VH-SPORT • Weight: 89 lbs • Capacity: 600 lbs • Towing: 3,000 lbs max • Rail: 77.5" x 7.875" IMPORTANT: Ramps NOT included. Purchase VH-SPORT RK ramp kit separately.
BEFORE PURCHASING - READ CAREFULLY: Ramps NOT Included: This carrier does NOT include loading ramps. You must purchase ramps separately. VersaHaul recommends the VH-SPORT RK (ramp kit for VH-SPORT) sold separately. The VH-SPORT ramp is wider (8") than standard VH-55 ramps (5.5") to accommodate wide sport bike tires. Do not attempt to load motorcycles without proper ramps. Weight Considerations: VH-SPORT weighs 89 lbs empty. When loaded with a 600 lb motorcycle, total tongue weight will be approximately 689 lbs. This requires: • A vehicle with sufficient towing capacity and suspension • A properly rated Class III (500 lb) or Class IV (1,000 lb) hitch Hitch Limitations: • Most Class III hitches: 500 lbs tongue weight - limits motorcycle to approximately 411 lbs (500 - 89) • Most Class IV hitches: 1,000 lbs tongue weight - adequate for full 600 lb capacity
Download the VersaHaul VH-SPORT Sport Motorcycle Carrier Instruction Manual Installation Overview: Connect 24" main tube to 77.5" x 7.875" carrier track. Install anti-tilt lock bracket. Position wheel stop on carrier track. Mount 4 retractable tie-down bars. Insert assembled carrier into 2" hitch receiver and secure with hitch pin. Attach reflectors. Reversible Rails Feature: Rails can be reversed for loading from either driver or passenger side. Configure for best access in your garage/driveway. Loading Your Sport Bike: 1. Deploy VH-SPORT RK loading ramp (sold separately) 2. Slowly roll or ride motorcycle up ramp onto carrier track 3. Center motorcycle on 7.875" wide carrier track 4. Roll forward until front wheel reaches wheel stop 5. Secure motorcycle with tie-down straps using retractable tie-down bars 6. Remove and store ramp in vehicle 7. Verify motorcycle stability Using Integrated Tow Receiver (Light-Duty Only): The VH-SPORT has a Class III receiver for light-duty towing up to 3,000 lbs maximum. Suitable for small utility trailers, lightweight boat trailers, or compact cargo trailers. DO NOT exceed 3,000 lbs. Calculate total tongue weight: carrier (89 lbs) + motorcycle + trailer tongue weight. Important Operating Restrictions: • DO NOT exceed 600 lbs capacity • DO NOT exceed 3,000 lbs towing capacity • MUST purchase ramps separately • NEVER exceed vehicle's tongue weight rating
