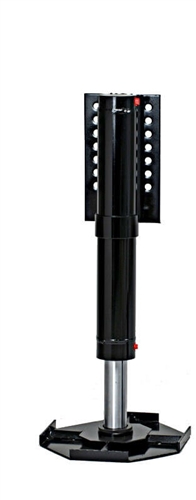

OEM replacement hydraulic jack leg for the EQ Systems SL 16 motorhome leveling system. 12,000 lb lifting capacity. Powder-coated straight leg design. No leg switch included — for systems that do not use plunger style leg switches.
The EQ Systems 7214 is the OEM replacement hydraulic jack leg for the SL 16 leveling system — EQ Systems' highest-capacity SL series motorhome jack at 12,000 lbs per leg. The SL 16 is a straight leg design used on Class A and larger Class C motorhomes where a compact, low-profile jack is required for limited ground clearance applications.
The 7214 ships without a leg switch, making it the correct replacement for SL 16 installations on systems that use pressure switches rather than individual plunger style leg switches on each jack. Jack legs are powder-coated for durability and corrosion resistance. The foot pad is not included and must be ordered separately.
The 7214 does not include a plunger style leg switch. It is the correct replacement for SL 16 installations where the leveling system uses pressure switches rather than individual leg switches on each jack, or where the existing leg switch is being reused from the original jack leg assembly. If your SL 16 installation uses plunger style leg switches on each jack, order part #7114 (SL 16 Jack Leg with Leg Switch) instead. Confirm your system configuration before ordering.
EQ Systems SL series jacks are straight leg hydraulic jacks designed for motorhome leveling applications where limited ground clearance makes a compact profile essential. The powder-coated outer tube provides corrosion resistance for extended service life. The SL 16 is the highest-capacity jack in the SL series at 12,000 lbs per leg, suited to heavier Class A motorhomes. The foot pad attaches to the rod end via a 3/4"-16 threaded bolt and is designed to pivot slightly for uneven terrain — it must be ordered separately.
7114 — SL 16 Jack Leg with Leg Switch Same SL 16 jack leg assembly with a plunger style leg switch included. Order this version if your system uses individual leg switches on each jack. 7849 — 10" × 10" Foot Pad with Bolt OEM replacement foot pad compatible with the SL 16 (no leg switch) jack leg. Includes the required 3/4" flat head Allen bolt for installation.
To confirm the correct jack leg for your SL 16 system, refer to the Jack Replacement – Cylinder & Foot Identification Chart available through EQ Systems Parts Identification Documents. Have your motorhome model year and leveling system model ready when contacting support. Technical Support: EQ Systems Toll Free: 1-800-846-9659 Local: 574-264-3437 Hours: Monday–Friday, 7AM–4PM EST Manufacturer: EQ Systems — 19300 Grange St, Cassopolis, MI 49031
