JR Products 12515 Multi-Purpose Illuminated Switch 120V
JR Products 12515 Multi-Purpose Illuminated Switch
JR Products 12515 Multi-Purpose Illuminated Switch



Alternative Views:


Normally: $5.44
MFG P/N: 12515
MFG: JR Products
UPC #: 756815125154
Weight (lbs): 1
Ships From: Ca, KS, Pa, Ga, Tx


Quantity in Stock :13
Availability: In Stock
Product Code: 19-1872
Qty:

DESCRIPTION

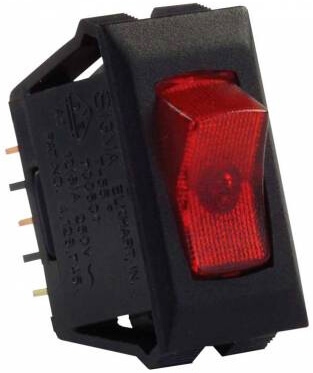

The JR Products 12515 is a multi-purpose 120 volt on/off switch that illuminates when the switch is in the on position.
  • Single pole single throw rocker
  • Current Rating:
    • 16 Amp at 125VAC
    • 12 Amp at 250 VAC
    • 3/4 H.P. at 125-250 VAC
  • Voltage Rating 120 Volt
  • Number of Switch Positions: 2
  • Connector Gender: Male
  • Terminal Type: Blade
  • Number of Terminals: 3
  • Color: Black/Red
  • Cutout dimensions: 1.125" x 0.550"
  • Switch dimensions: 1.120" x 0.547"
  • UL/CSA/VDE/RoHS Approved
  • Limited lifetime manufacturer warranty

JR Products Multi-Purpose Illuminated Switch
