Progressive Dynamics PD4635V Inteli-Power 4600 Converter/Charger - 35 Amp
Progressive Dynamics PD4635V Inteli-Power 4600 Converter/Charger - 35 Amp
Progressive Dynamics Inteli-Power 4600 Converter/Charger - 35 Amp



Alternative Views:


Price: $377.15
MFG P/N: PD4635V
MFG: Progressive Dynamics
UPC #: 675566463509


Quantity in Stock :29


Availability: In Stock
Product Code: 19-0311
Qty:

Description Instructions

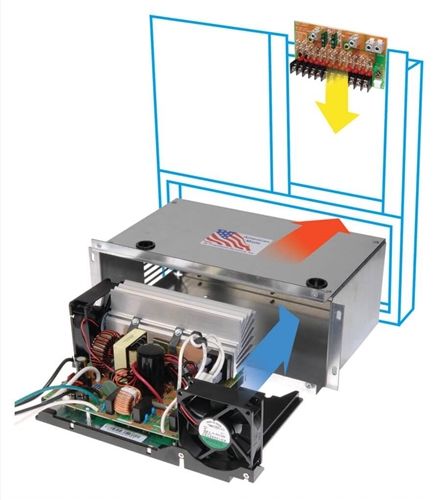

The Progressive Dynamics Inteli-Power 4600 Converter/Charger with Built-in Charge Wizard is a 35 Amp REPLACEMENT/UPGRADE section for WFCO 8945, Magnatek 6345 or Parallax 6345. The state-of-the-art Inteli-Power 4600 Series Converter/Chargers transform 120-volt AC power from the park pedestal or your generator into 12-volt DC power to operate lights and appliances inside your RV. These intelligent converter/chargers also use 120-volt AC to charge and maintain your 12-volt RV batteries to dramatically increase battery life. This unit is a replacement or upgrades to the current converter/charge portion of your one place AC/DC power distribution system.
  • Reverse Battery Protection
  • Total Charge Management System
  • Electronic Current Limiting
  • Low Voltage Protection
  • Variable Speed Intelligent Cooling Fan
  • High Voltage Protection
  • Automatic Thermal Shutdown
  • Fits 12"W x 4.75"H x 7.25"D opening
  • Inteli-Power 4600 Series models can recharge the battery to 90% in 2-3 hours using the patented Charge Wizard technology.The built-in Charge Wizard automatically selects one of four operating modes: BOOST, NORMAL, STORAGE, DESULFATION.
  • BOOST Mode 14.4 Volts - Rapidly brings RV battery up to 90% of full charge.
  • NORMAL Mode 13.6 Volts - Safely completes the charge.
  • STORAGE Mode 13.2 Volts - Maintains charge with minimal gassing or water loss.
  • DESULFATION Mode 14.4 Volts every 21 hours for a period of 15 minutes to prevent battery stratification.
  • Limited 2-year manufacturer warranty

Progressive Dynamics Inteli-Power 4600 Converter/Charger - 35 Amp

Additional Product Information

Maximum DC Output Current 35-AMPS
Maximum Continuous Input Power 550 WATTS
No Load DC Output Voltage 13.6 VDC
No Load Voltage Tolerance +/- .3 VDC
Full Load Output Voltage > 12.6 VDC
Ripple and Noise Voltage <50 MV RMS
Input Voltage Tolerance 105 - 130 VAC
Input Voltage Frequency 50-60 HZ
Peak Inrush Current 32-AMPS
Efficiency (Typical) > 80%
Reverse Battery Protection YES
Electronic Current Limiting YES
Cooling Fan Auto-variable speed
Back Up Thermal Protection YES
Storage Temperature 20-80C
Operating Temperature 0-50C
Hipot Voltage Test 1240 V @ INPUT TERMINALS
Over Voltage Protection YES
Under Voltage Protection YES
Full Function Charge Wizard YES
Weight 9 LB.
Dimensions Fits 13.25" W x 5.38" H x 8" D opening
Replacement Cross List: Model #
WFCO 8935
MAGNATEK 6336
PARALLAX 6336
